Industrial three-phase motor, steel frame, grey finish, rigid base, conduit box, cooling fan visible

Dayton

Dayton 36VF26 3-Phase Motor 2 HP 182/4 Frame 230/460V AC

SKU CH-PNN2-703X1

A three-phase general-purpose motor delivers 2 HP at 3510 RPM with 84 percent nominal efficiency and dual-voltage 230/460V operation

  • TypeMotors
  • Delivers 2 HP for demanding industrial tasks
  • 230/460 V dual-voltage suits varied power supplies
  • 84 % nominal efficiency lowers energy costs
  • 15 service factor handles temporary overloads
  • Steel frame with ball bearings ensures durability

Three-phase motor for industrial drives

The Dayton 36VF26 is a three-phase general-purpose motor rated at 2 HP with a 182/4 frame. It operates on 230/460V AC at 60 Hz and delivers a nameplate speed of 3510 RPM. The unit suits continuous-duty applications such as pumps, fans, conveyors and machine tools where three-phase power is available.

Steel frame with rigid base and conduit box

The motor uses a totally enclosed fan-cooled steel frame with Class F insulation and a 1.15 service factor. A rigid base provides fixed mounting on flat surfaces and the included conduit box simplifies wiring connections. Ball bearings support the shaft, which rotates in either direction for flexible installation.

Efficient operation within 40 °C ambient

Nominal efficiency reaches 84 percent at full load, drawing 5.4 amps at 230 V or 2.7 amps at 460 V. The design is rated for continuous duty in ambient temperatures up to 40 degrees Celsius. No internal thermal protection is fitted, so external overload devices must be provided. CSA and UL listings confirm compliance with North American safety standards.

Highlights

  • Delivers 2 HP for demanding industrial tasks
  • 230/460 V dual-voltage suits varied power supplies
  • 84 % nominal efficiency lowers energy costs
  • 15 service factor handles temporary overloads
  • Steel frame with ball bearings ensures durability

Specifications

BrandDAYTON
TypeMotors

Questions about this item

What does the 230/460V AC three-phase supply mean for full-load current?

The motor draws 5.4 amps at 230 V and 2.7 amps at 460 V under full load.

What mounting footprint does the 182/4 frame require?

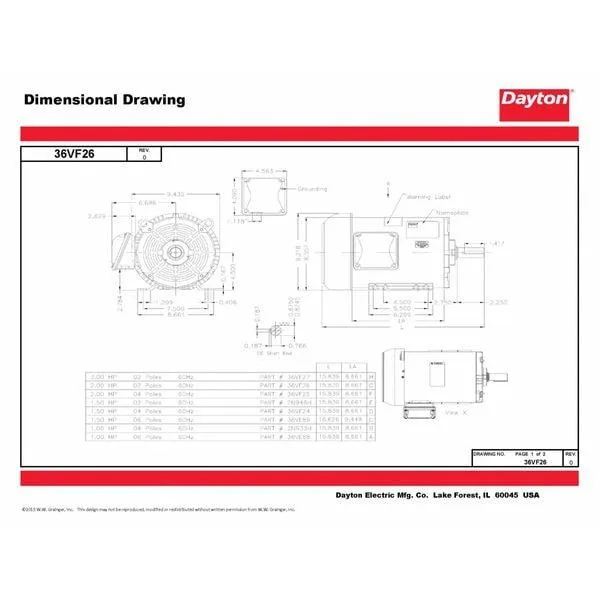

A rigid base matching NEMA 182/4 frame dimensions with standard bolt-hole spacing.

How is the conduit box attached during installation?

The included conduit box bolts to the motor frame; ensure the gasket seats fully to maintain the TEFC enclosure seal.
