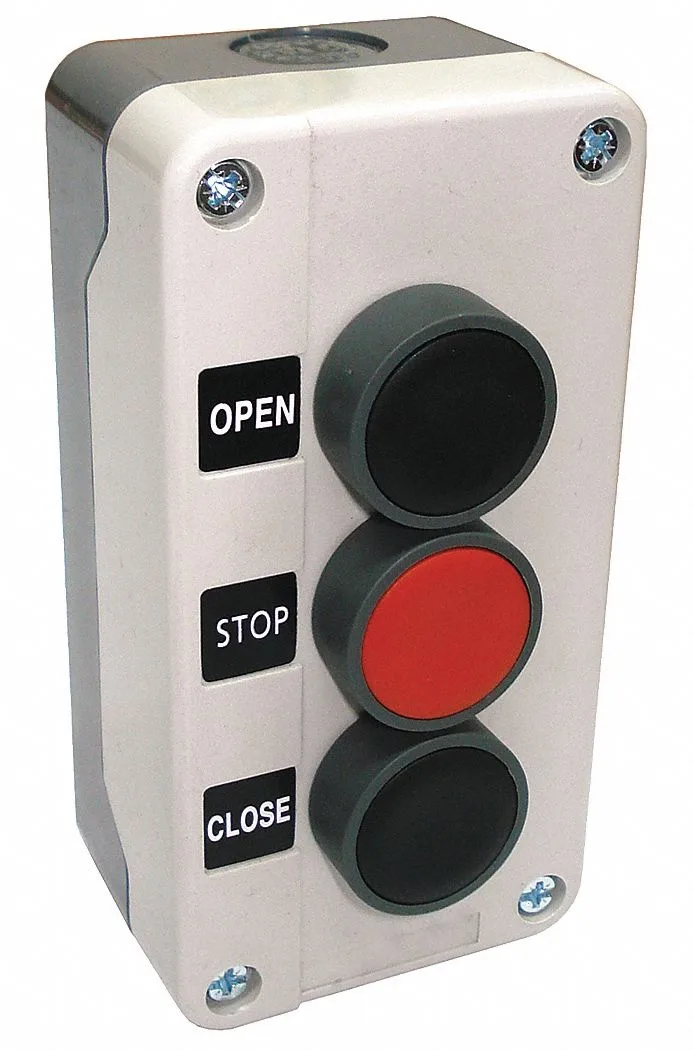

Grey thermoplastic wall-mounted control station with three push buttons labelled Open Stop Close black red black 22 mm operators

Dayton

Dayton 32W271 3-Operator Control Station 22 mm Open/Stop/Close

SKU CH-AEF0-3QSGN

Three push-button operators in a 22 mm thermoplastic enclosure rated NEMA 4/4X with 10 A at 600 V AC contacts

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Three-momentary push-button layout simplifies machine control
  • 22 mm operator size fits standard panel cut-outs
  • NEMA 4 and 4X thermoplastic enclosure resists water and dust ingress
  • 10 A at 600 V AC contact rating handles heavy-duty circuits
  • Compact 5.27 × 1.98 × 2.69 in footprint saves wall space

Three-Operator 22 mm Control Station

The Dayton 32W271 provides three momentary push buttons in a single thermoplastic enclosure rated NEMA 4 and 4X. Operators are coloured black, red and black with legends reading Open, Stop and Close. Contacts are configured as 2NO/1NC and rated 10 A at 600 V AC or 2.5 A at 24 V DC.

Wall-Mount Thermoplastic Build

The station measures 1.98 in high, 5.27 in wide and 2.69 in deep with a 22 mm operator size. Plastic heads and a thermoplastic body resist moisture and dust ingress. Wall mounting keeps the unit fixed and accessible while the NEMA 4X rating supports wash-down environments.

10 A 600 V AC Contact Rating

The A600/Q600 contact designation confirms suitability for heavy-duty pilot-duty circuits up to 10 A at 600 V AC. Applications requiring higher current, additional pilot lights or maintained-action operators will need a different station.

Highlights

  • Three-momentary push-button layout simplifies machine control
  • 22 mm operator size fits standard panel cut-outs
  • NEMA 4 and 4X thermoplastic enclosure resists water and dust ingress
  • 10 A at 600 V AC contact rating handles heavy-duty circuits
  • Compact 5.27 × 1.98 × 2.69 in footprint saves wall space

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

What contact rating does the 22 mm push-button station carry?

The station is rated 10 A at 600 V AC and 2.5 A at 24 V DC with NEMA A600/Q600 designation.

What are the enclosure dimensions for wall mounting?

The thermoplastic enclosure measures 5.27 in wide, 1.98 in high and 2.69 in deep for wall mounting.

How are the three momentary push buttons wired out of the box?

The black, red and black operators use a 2NO/1NC contact form with no mechanical interlock between them.
