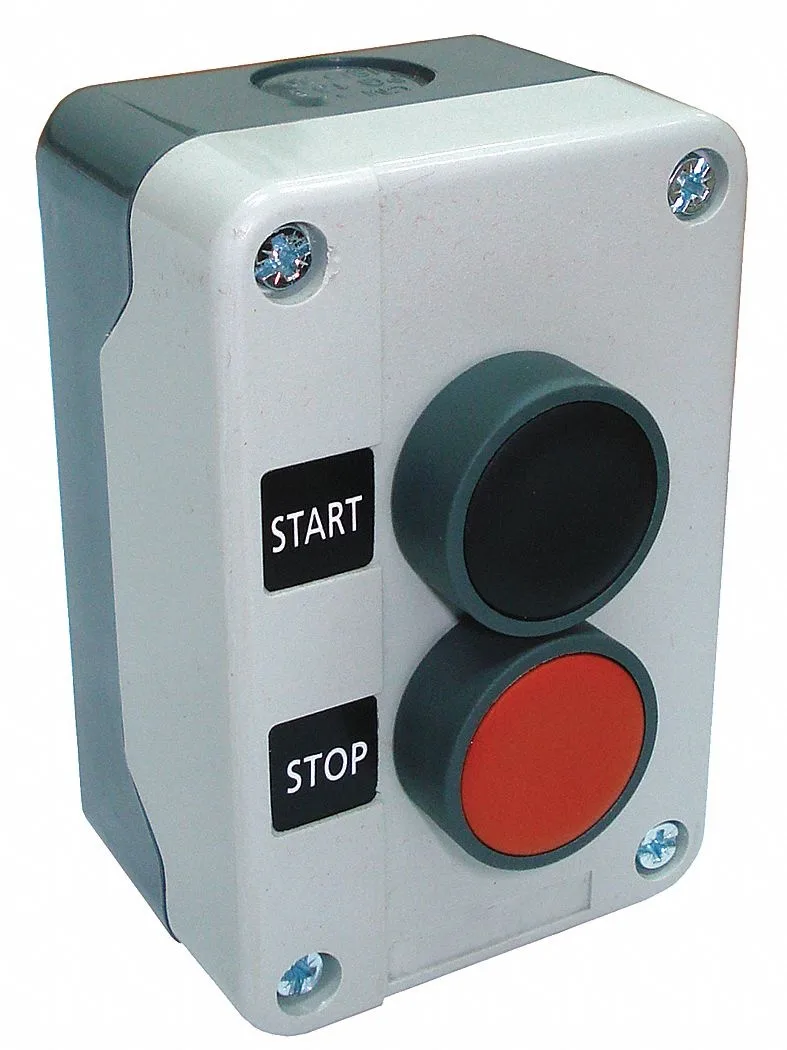

Gray thermoplastic wall-mounted control station with black and red momentary push buttons labeled Start Stop

Dayton

Dayton 32W267 22 mm 2 Button Momentary Control Station

SKU CH-MT88-5ME09

Two-button momentary control station with 22 mm operators, Start/Stop legends and NEMA 12, 13, 4, 4X enclosure

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Momentary push-button action gives immediate start/stop control
  • Two 22 mm operators in black and red provide clear visual identification
  • NEMA 12, 13, 4 and 4X enclosure protects against dust, water and oil ingress
  • Contacts rated 10 A at 600 V AC and 2.5 A at 24 V DC handle industrial loads
  • cULus listing confirms compliance with North American safety standards

Industrial Push-Button Station

The Dayton 32W267 is a 22 mm wall-mount control station with two momentary push buttons labelled Start and Stop. It suits machine operators and maintenance technicians who need a compact, hard-wired interface for motor starters or process equipment. The grey thermoplastic enclosure carries NEMA 12, 13, 4 and 4X ratings for indoor and wash-down environments.

Wiring and Mounting Integration

Each operator provides one normally-open and one normally-closed contact rated at 10A 600V AC and 2.5A 24V DC, matching A600/Q600 designations. The station mounts directly to a flat surface using its 1.98 in by 4.09 in footprint and requires no pilot lights or mechanical interlock. Installers must supply conduit entries and a suitable back-box; the 2.69 in depth clears standard shallow enclosures.

Sustained-Duty Behaviour

Contacts are rated for continuous thermal current at the stated voltages, so the station handles repeated jogging or emergency-stop cycles without derating. The plastic head and thermoplastic body resist oil, coolant and water ingress per the NEMA 4X rating, maintaining reliable actuation during extended shifts. No internal illumination or logic circuitry means heat build-up is negligible under normal duty cycles.

Highlights

  • Momentary push-button action gives immediate start/stop control
  • Two 22 mm operators in black and red provide clear visual identification
  • NEMA 12, 13, 4 and 4X enclosure protects against dust, water and oil ingress
  • Contacts rated 10 A at 600 V AC and 2.5 A at 24 V DC handle industrial loads
  • cULus listing confirms compliance with North American safety standards

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

What contact rating limits sustained use on the 22 mm push buttons?

The contacts are rated 10 A at 600 V AC and 2.5 A at 24 V DC, so continuous current above those values will exceed the station's limit.

How much heat or noise does the control station produce when operated all day?

The unit has no fan or active electronics; it generates no audible noise and negligible heat during momentary push-button operation.

What mounting provisions must already be in place for this NEMA 4X enclosure?

The thermoplastic enclosure measures 4.09 in wide by 1.98 in high and is designed for wall mounting, so a flat vertical surface with matching hole spacing is required.
