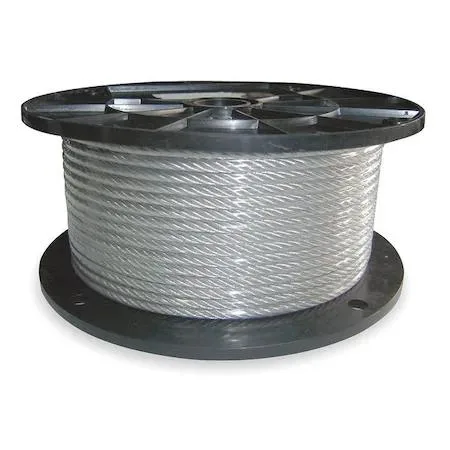

Coiled 304 stainless wire rope, 100 ft length, 3/16 in diameter, silver finish

Dayton

Dayton 3/16 in 100 ft 304 Stainless Wire Rope 660 lb WLL

SKU CH-8MW6-P5KFX

304 stainless steel wire rope, 100 ft of 3/16 in diameter with 19x7 strand construction and 660 lb working load limit

  • 304 stainless steel resists corrosion in harsh environments
  • 660 lb working load limit supports heavy lifting tasks
  • 19 x 7 strand construction provides flexibility and strength
  • 100 ft length covers extended reach applications
  • 3,300 lbf breaking strength ensures reliable performance under load

304 Stainless Steel Wire Rope

This 100 ft length of 3/16 in diameter wire rope is made from 304 stainless steel for corrosion resistance. It carries a working load limit of 660 lb and a breaking strength of 3,300 lbf. The 19 x 7 strand construction provides flexibility for lifting and pulling tasks. Unlubricated and uncoated, it is ready for immediate use in rigging, marine or industrial applications.

Upgrade from galvanised or smaller diameter rope

Replacing galvanised rope with 304 stainless eliminates the risk of rust staining and extends service life in wet or chemical environments. Stepping up from a lighter rope to this 660 lb WLL allows heavier loads without changing hardware. The jump is worth it when the application demands both higher capacity and long-term corrosion performance.

Check your sheave groove and end termination

Verify that existing sheaves or pulleys accommodate a 3/16 in diameter rope with a 19 x 7 construction to avoid premature wear. Confirm that your end fittings or splicing method are rated for the 660 lb working load limit. Ensure the operating environment does not exceed the material limits of 304 stainless steel.

Highlights

  • 304 stainless steel resists corrosion in harsh environments
  • 660 lb working load limit supports heavy lifting tasks
  • 19 x 7 strand construction provides flexibility and strength
  • 100 ft length covers extended reach applications
  • 3,300 lbf breaking strength ensures reliable performance under load

Specifications

BrandZORO SELECT

Questions about this item

What diameter sheave or pulley groove do I need for the 3/16 in wire rope?

Use a sheave with a groove sized for 3/16 in cable; the rope has a 19 x 7 strand construction and an IWRC core that resists crushing in properly sized grooves.

How do I terminate the plain ends on this 100 ft length, and what mistake should I avoid?

Swage or mechanically splice the plain ends with 304 stainless fittings matched to 3/16 in rope; do not use galvanized or carbon-steel sleeves, as they will corrode against the stainless wire.

When should I replace this 304 stainless wire rope based on wear?

Retire the rope when you see broken wires, corrosion pitting, diameter reduction, kinks, or core protrusion; the 3,300 lbf breaking strength and 660 lb working load limit assume intact construction.
