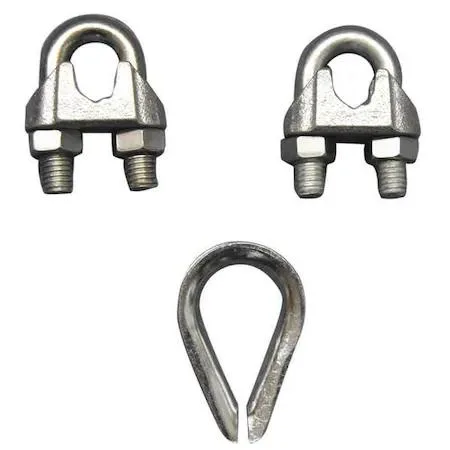

Galvanised steel wire rope clip and thimble kit, two U-bolt clips and one thimble for half-inch rope

Dayton

Dayton 2VKK4 Wire Rope Clip and Thimble Kit 1/2 in conveying

SKU CH-2K4Y-2RCRP

Kit provides two steel U-bolt clips and one galvanised thimble for 1/2 in wire rope

  • Secure loop protection with included galvanised steel thimble
  • Reliable grip from two U-bolt steel clips
  • Ready for 1/2 in galvanised steel wire rope
  • Corrosion-resistant galvanised finish on all fittings
  • 11 1/2 in turnback length for proper assembly

Dayton 1/2 in Wire Rope Kit

The Dayton 2VKK4 kit supplies two steel U‑bolt clips and one galvanised steel thimble for 1/2 in galvanised wire rope. It is intended for rigging, lifting or pulling tasks where a secure loop termination is required.

Replaces worn or missing clips

Swap out damaged fittings when the rope turnback measures 11 1/2 in and the thimble loop inside dimensions are 2 3/4 in by 1 3/4 in. The upgrade is worth it when existing hardware shows corrosion, deformation or missing components.

Fits 1/2 in galvanised rope

The clips and thimble are sized for 1/2 in galvanised steel wire rope and install with standard hand tools. The kit frees the builder from sourcing separate clips and thimbles, delivering three matched fittings in one package.

Highlights

  • Secure loop protection with included galvanised steel thimble
  • Reliable grip from two U-bolt steel clips
  • Ready for 1/2 in galvanised steel wire rope
  • Corrosion-resistant galvanised finish on all fittings
  • 11 1/2 in turnback length for proper assembly

Specifications

BrandDAYTON

Questions about this item

What rope diameter and turnback length does this 1/2 in kit require?

The kit fits 1/2 in galvanised steel rope and needs an 11 1/2 in turnback length for proper seating.

How do I install the two U-bolt clips and thimble, and what step is often missed?

Place the thimble in the rope eye, seat both U-bolt clips over the dead end with saddles on the live rope, then torque nuts evenly; the step often missed is re-torquing after the first load.

When should the galvanised steel thimble and clips be inspected or replaced?

Inspect before each use for wear, corrosion or deformation; replace any fitting showing cracks, elongation or 65 per cent loss of original cross-section.
