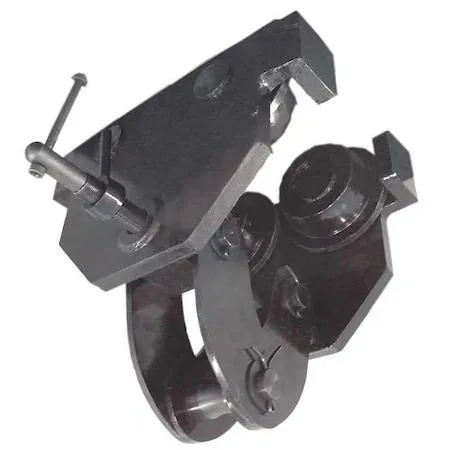

Dayton 25K805 push trolley, cast iron frame, steel wheels

Dayton

Dayton 25K805 Quick-Install Trolley 2000 lb conveying

SKU CH-JV09-W36DA

Quick-install trolley carries 2000 lb on flat beams with a 27 5/8 in minimum curve radius

  • Quick-install design speeds setup on flat beams
  • 2000 lb capacity handles heavy conveying tasks
  • Cast iron frame resists wear in tough environments
  • Adjusts to flange widths from 2 1/2 in to 8 in
  • Steel wheels with 27 5/8 in minimum curve radius

Quick-Install Trolley 2000 lb

The Dayton 25K805 is a push-type trolley built for overhead material handling on flat beams. It supports loads up to 2000 lb and fits flange widths from 2 1/2 in to 8 in. This unit is intended for industrial maintenance and conveyor applications where a permanent hoist attachment is not required.

Installation and common issues

The quick-install design allows the trolley to clamp onto the beam flange without removing end stops or disassembling the track. Steel wheels roll on cast-iron frames with a minimum curve radius of 27 5/8 in. Misalignment occurs when the beam flange falls outside the stated width range or when the beam height is below 2 1/2 in.

Load capacity and beam fit

The single specification that decides fit is the 2000 lb maximum load capacity combined with the 2 1/2 in to 8 in flange-width window. Buyers who need to move heavier loads or mount to beams outside this width range cannot use this trolley. The 6 5/16 in headroom to the mounting point also limits use in extremely low-clearance spaces.

Highlights

  • Quick-install design speeds setup on flat beams
  • 2000 lb capacity handles heavy conveying tasks
  • Cast iron frame resists wear in tough environments
  • Adjusts to flange widths from 2 1/2 in to 8 in
  • Steel wheels with 27 5/8 in minimum curve radius

Specifications

BrandDAYTON

Questions about this item

How do I confirm the trolley rolls correctly after mounting it on a flat beam?

Mount the trolley on a flat beam with a flange width between 2 1/2 in and 8 in and a height between 2 1/2 in and 8 in, then push a load up to 2000 lb; smooth travel on the 2 7/10 in steel wheels shows it is working.

What comes in the box and what must I supply separately?

The trolley frame, cast-iron wheels and axle ship assembled; you must provide the flat beam, mounting hardware and any load-attachment hardware such as hooks or shackles.

Which beam flange width range should I choose for the 25K805 trolley?

Select a beam whose flange width falls between the minimum 2 1/2 in and maximum 8 in listed for this model; the trolley adjusts to any width in that span.
