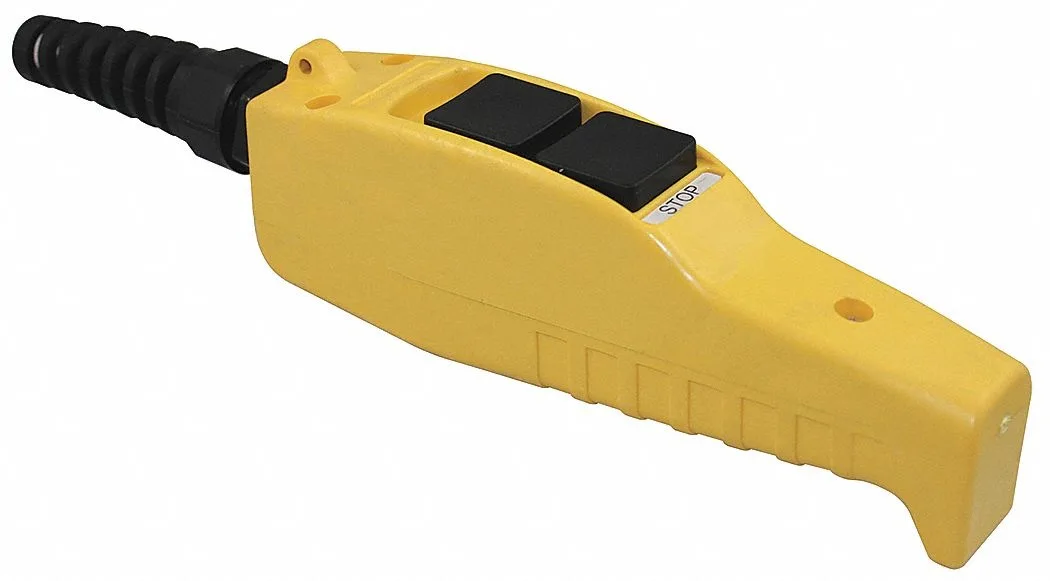

Yellow plastic pendant control station with two push buttons, hand grip mounting, 7.56 in tall

Dayton

Dayton 20C815 Pendant Control Station 2 Button 1NO/1NC

SKU CH-CYT3-8G7V6

Two-button pendant station with momentary start/stop push buttons, 1NO/1NC contacts rated 10A at 600V AC, NEMA 4X plastic enclosure, CE/CSA/UL listed

  • Engine BrandDAYTON
  • Two-button start/stop control for direct machine operation
  • Momentary push-button action returns automatically to neutral position
  • NEMA 4X yellow plastic enclosure resists water and corrosion
  • 10 A contact rating at 600 V AC for industrial circuits
  • CE, CSA and UL listed for code-compliant installations

Two-Button Pendant Control Station

The Dayton 20C815 provides a compact, handheld station with two momentary push buttons labelled Start and Stop. Each operator carries a 1NO/1NC contact block rated at 10A @ 600V AC and 5A @ 600V DC under the A600/P600 designation. The yellow plastic enclosure meets NEMA 4X for indoor or outdoor wash-down environments and carries CE, CSA and UL listings.

Wiring and Mounting Integration

The unit mounts via a hand grip or hanger and accepts a 3/8 in to 5/8 in hub for conduit or cable entry. With overall dimensions of 7.56 in height, 1.73 in width and 2.83 in depth, it fits tight control panels without mechanical interlocks between the buttons. Installers gain a ready-to-wire solution that frees panel space otherwise needed for separate push-button enclosures.

Upgrade from Single-Function Stations

This station replaces individual start or stop buttons when a coordinated two-function control is required at the point of operation. The jump is worth it when operators need immediate access to both commands in a single NEMA 4X housing rather than managing multiple loose components. It is not suited for applications requiring pilot lights, maintained-action contacts or three or more operators.

Highlights

  • Two-button start/stop control for direct machine operation
  • Momentary push-button action returns automatically to neutral position
  • NEMA 4X yellow plastic enclosure resists water and corrosion
  • 10 A contact rating at 600 V AC for industrial circuits
  • CE, CSA and UL listed for code-compliant installations

Specifications

Engine BrandDAYTON

Questions about this item

How much current can the contacts handle before they overheat under continuous duty?

The contacts are rated for 10 A at 600 V AC and 5 A at 600 V DC, matching the A600/P600 designation.

Does the enclosure get hot or noisy when the buttons are held all day?

The plastic enclosure has no moving parts or fan, so it produces no noise and negligible heat during sustained operation.

What mounting hardware or wiring must I already have to install this station?

You need a 3/8 in to 5/8 in hub opening and wiring sized for the 10 A / 600 V contact rating.
