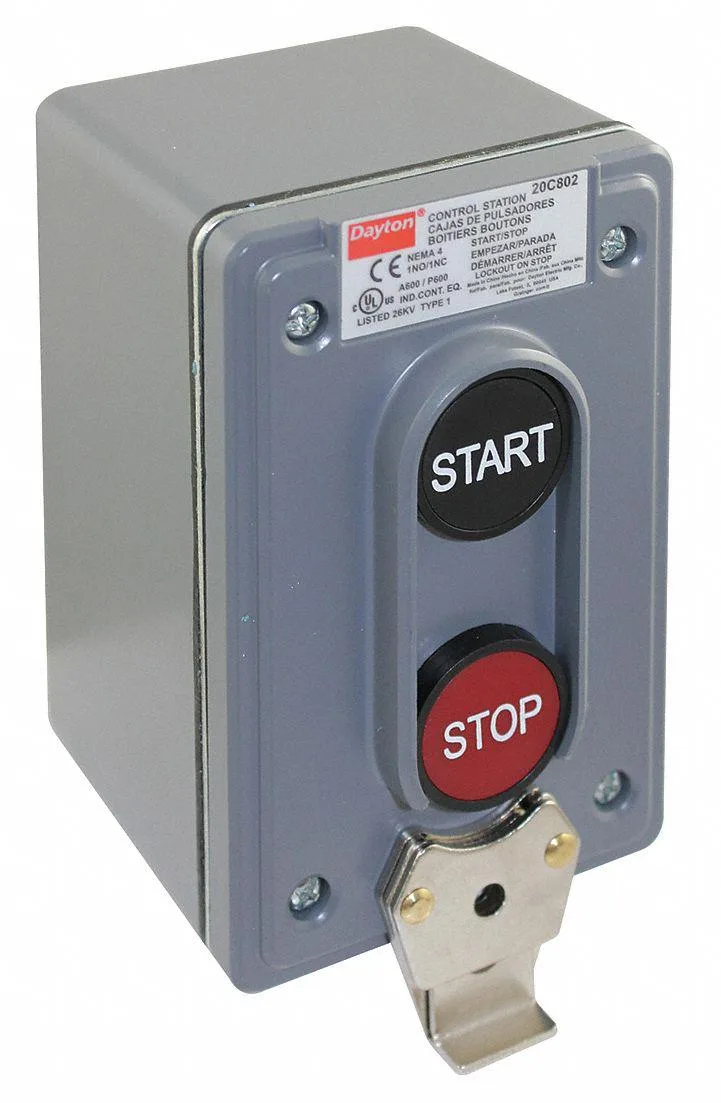

Dayton 22 mm push button start stop control station zinc enclosure black red operators

Dayton

Dayton 20C802 22 mm Push Button Control Station 1NO/1NC Start/Stop

SKU CH-AQXB-4NFRD

A 22 mm wall-mounted push-button station with Start and Stop operators, 1NO/1NC contacts rated 10A at 600V AC and 5A at 24V DC, NEMA 4 and IP65 enclosure

  • Engine BrandDAYTON
  • Engine Size22 mm
  • 22 mm mounting fits standard panels
  • Start/Stop momentary action for clear machine control
  • 1NO/1NC contacts switch 10 A at 600 V AC
  • IP65 and NEMA 4 enclosure resists dust and water jets
  • Zinc housing with plastic heads built for industrial wall mounting

22 mm Start/Stop Control Station

The Dayton 20C802 is a wall-mounted industrial control station with two 22 mm push-button operators marked Start and Stop. It provides momentary action on both buttons with black and red colour coding for clear identification. The zinc enclosure carries a NEMA 4 rating and IP65 ingress protection for indoor or outdoor use.

NEMA 4 Enclosure with 1/2 in NPT Hub

The station mounts directly to a flat surface and accepts conduit through a 1/2 in NPT hub, simplifying wiring in conduit-based installations. Its compact 3.27 in height and 2.75 in width fit tight panel spaces while the zinc housing resists impact and corrosion. No mechanical interlock is fitted, so each button operates independently.

10A AC and 5A DC Contact Rating

Each operator carries a 1NO/1NC contact block rated at 10A at 600V AC and 5A at 24V DC under the A600/P600 designation. This capacity handles typical motor-starter coils and control relays in industrial machinery. It does not suit loads that exceed these current or voltage limits or applications requiring maintained-action or illuminated operators.

Highlights

  • 22 mm mounting fits standard panels
  • Start/Stop momentary action for clear machine control
  • 1NO/1NC contacts switch 10 A at 600 V AC
  • IP65 and NEMA 4 enclosure resists dust and water jets
  • Zinc housing with plastic heads built for industrial wall mounting

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

How many amps can the 22 mm contacts carry continuously at 600 V AC?

The contacts are rated for 10 A at 600 V AC and 5 A at 24 V DC.

What is the IP rating of the zinc enclosure?

The enclosure is rated IP65, protecting against dust and low-pressure water jets.

Does the station include a 1/2 in NPT hub for conduit entry?

Yes, it has a 1/2 in NPT hub for wall mounting and conduit connection.
