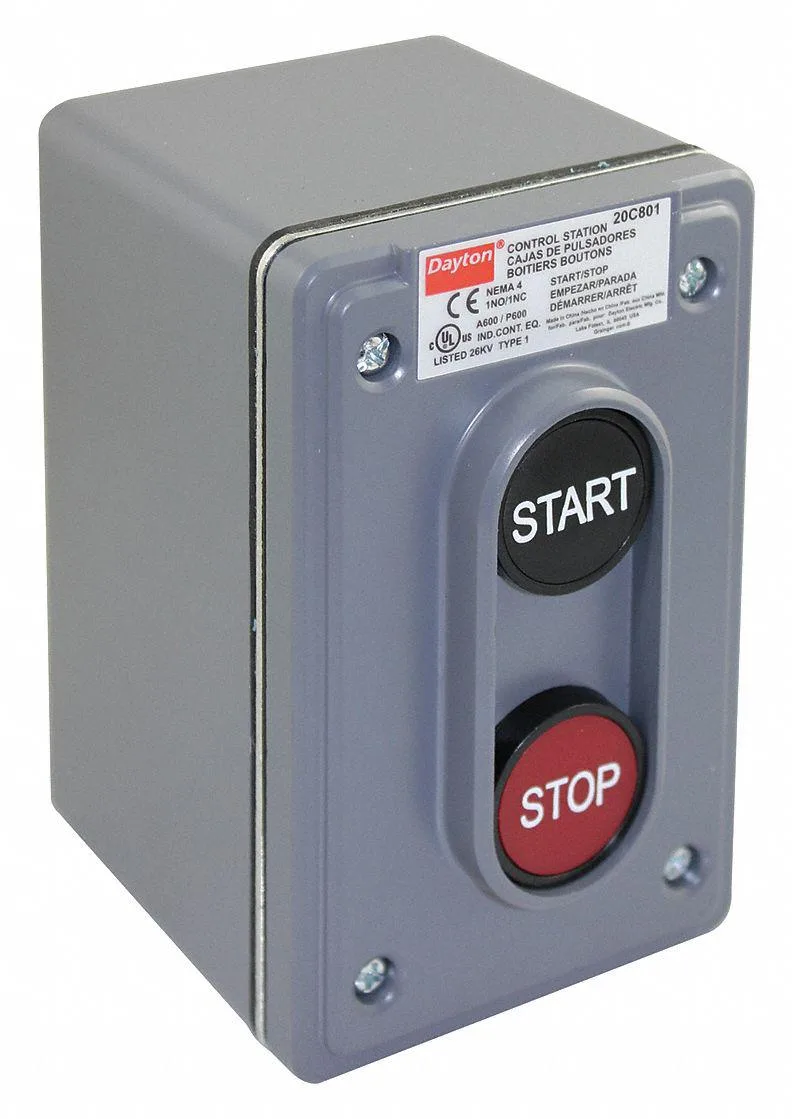

Grey zinc enclosure with black and red push buttons 22 mm start stop wall mount

Dayton

Dayton 20C801 Push Button Control Station 22 mm 1NO/1NC

SKU CH-5BTQ-5AF4Q

Two-button start/stop station with 1NO/1NC contacts, NEMA 4/IP65 zinc enclosure and ½ in NPT hub

  • Engine BrandDAYTON
  • Engine Size22 mm
  • NEMA 4 enclosure protects against dust and water ingress
  • IP65 rating ensures reliable operation in wet environments
  • 10 A at 600 V AC contact rating handles heavy industrial loads
  • 22 mm mounting size fits standard panel cut-outs
  • Zinc enclosure with plastic head resists impact and corrosion

Industrial Push Button Station

The Dayton 20C801 is a 22 mm wall-mounted control station built for industrial environments. It provides two momentary push-button operators labelled Start and Stop with black and red heads. The enclosure carries a NEMA 4 rating and IP65 ingress protection for dust and water resistance. It suits machine builders and maintenance teams needing a compact, durable start-stop interface.

Thermal and Electrical Ratings

The unit has no active cooling and draws negligible power as a passive switching device. Contacts are rated for 10 A at 600 V AC and 5 A at 24 V DC under the A600/P600 designation. Mechanical interlock is not fitted, so both buttons can be actuated independently. The zinc enclosure and plastic heads handle normal industrial ambient conditions without thermal management.

Included Hardware and Wiring

A 1/2 inch NPT hub is integrated for conduit entry, simplifying wall mounting and cable routing. The contact block supplies one normally open and one normally closed circuit per operator, ready for standard control wiring. No pilot lights, legend plates beyond Start/Stop, or additional accessories are supplied. Installers must provide conduit, wire and mounting hardware separately.

Highlights

  • NEMA 4 enclosure protects against dust and water ingress
  • IP65 rating ensures reliable operation in wet environments
  • 10 A at 600 V AC contact rating handles heavy industrial loads
  • 22 mm mounting size fits standard panel cut-outs
  • Zinc enclosure with plastic head resists impact and corrosion

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

How do I wire the 1/2 in NPT hub for wall mounting the 22 mm control station?

Feed the conduit through the 1/2 in NPT hub, secure the station to the wall using the mounting holes, then connect the 1NO/1NC contacts rated 10A @ 600V AC and 5A @ 24V DC.

What parts will need replacement after extended use of the push buttons?

The momentary push button operators and the 1NO/1NC contact blocks are the wear items; the zinc enclosure and plastic heads are not serviceable.

At what point does the NEMA 4 / IP65 seal become the limiting factor during continuous operation?

The NEMA 4 and IP65 ratings protect against water and dust ingress; the thermal limit of the 10A @ 600V AC contact rating will be reached before the seal degrades.
