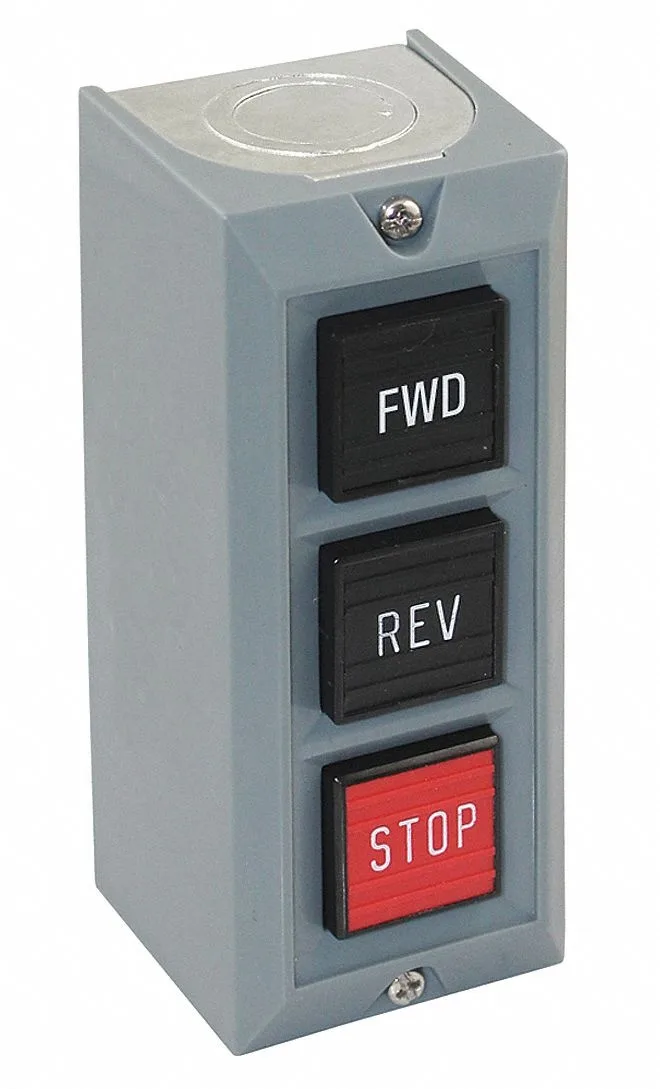

Three-button wall-mounted control station with black, black, red momentary push buttons in plastic enclosure

Dayton

Dayton 20C796 3-Operator Push Button Station 25mm 10A 600V AC

SKU CH-ZZ31-QF8MW

Three-operator push-button station rated 10 A at 600 V AC with momentary action and IP40 protection

  • Engine BrandDAYTON
  • Engine Size25 mm
  • Three operators give forward, reverse and stop control
  • 25 mm push buttons fit standard panel cutouts
  • 10 A at 600 V AC contact rating handles heavy loads
  • NEMA 1 enclosure with IP40 rating protects indoor installations
  • Wall-mount design with 1/2 to 3/4 in NPT hub simplifies wiring

Three-Operator Control Station

The Dayton 20C796 provides three momentary push-button operators in a single wall-mount enclosure. Legend markings read Forward, Reverse and Stop with black, black and red colour coding. Contacts are rated at 10 amps for 600 volts AC and 5 amps for 24 volts DC, designated A600/P600.

Panel Builders and OEMs

This station suits control-panel builders who need a compact three-function operator with NEMA 1 and IP40 protection. It fits a 25 mm cut-out and accepts 1/2 to 3/4 inch NPT conduit hubs. Buyers requiring maintained-action operators, mechanical interlocks or a higher ingress rating should look at other enclosures.

25 mm Operator Diameter

Each operator uses a standard 25 mm mounting size, which determines panel cut-out dimensions and accessory compatibility. The 2.19-inch height, 3.69-inch width and 2.06-inch depth define the overall footprint for layout planning.

Highlights

  • Three operators give forward, reverse and stop control
  • 25 mm push buttons fit standard panel cutouts
  • 10 A at 600 V AC contact rating handles heavy loads
  • NEMA 1 enclosure with IP40 rating protects indoor installations
  • Wall-mount design with 1/2 to 3/4 in NPT hub simplifies wiring

Specifications

Engine BrandDAYTON
Engine Size25 mm

Questions about this item

Should I choose a 25 mm operator size or a different size for my panel?

This station uses 25 mm operators with a 1/2 in to 3/4 in NPT hub; choose 25 mm if your panel cut-outs match that standard.

What does the 10 A contact rating mean when the station is wired into a 600 V AC control circuit?

Each contact block is rated for 10 A at 600 V AC (A600) and 5 A at 24 V DC (P600), so it can switch those loads directly.

How does the NEMA 1 enclosure and IP40 rating limit where I can mount the station?

NEMA 1 and IP40 provide indoor protection only; the station is suitable for dry, non-hazardous wall mounting but not for wet or dusty environments.
