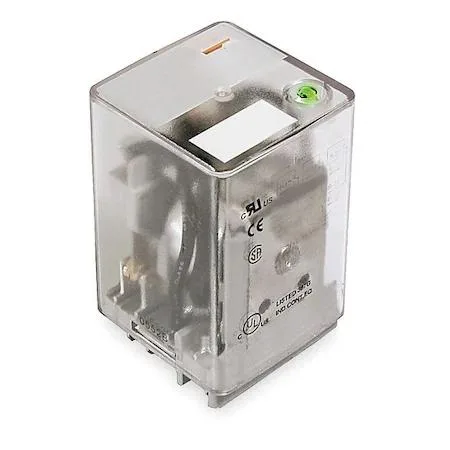

Transparent square 11-pin plug-in relay with LED indicator and mechanical flag

Dayton

Dayton 1EJD7 12V DC 10A 11-Pin Square Plug-In Relay

SKU CH-YPMB-NAXGJ

A 12V DC plug-in relay with 11 square pins, 10A contacts, LED status indicator and mechanical flag for circuit monitoring

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 12 V DC coil fits low-voltage control circuits
  • 10 A switching capacity handles motor and lighting loads
  • 11-pin square base plugs into standard relay sockets
  • LED status indicator plus mechanical flag shows contact state at a glance
  • Silver-alloy contacts rated 10 A at 277 V AC and 28 V DC

General-Purpose 12V DC Relay

The Dayton 1EJD7 is a plug-in relay designed for industrial electrical controls and automation. It operates on a 12V DC coil voltage and provides a 3PDT contact form with an 11-pin square base. This unit suits panels and equipment requiring reliable switching of moderate AC or DC loads.

Transparent Housing with Square 11-Pin Base

The transparent body measures 1.37 in wide, 1.4 in deep and 1.97 in high, allowing visual inspection of the silver-alloy contacts and mechanical flag. A plug-in mounting style enables quick installation or replacement on compatible sockets without wiring changes. An LED status indicator shows coil energisation at a glance.

Rated for 10 A Across AC and DC Circuits

The contacts are rated 10 A at 277V AC and 10 A at 28V DC, with motor-load ratings of 1/3 hp at 120V AC and 1/2 hp at 240V AC. No push-to-test button is fitted, so functional checks require external actuation. California Proposition 65 warnings apply for cancer and reproductive-harm substances.

Highlights

  • 12 V DC coil fits low-voltage control circuits
  • 10 A switching capacity handles motor and lighting loads
  • 11-pin square base plugs into standard relay sockets
  • LED status indicator plus mechanical flag shows contact state at a glance
  • Silver-alloy contacts rated 10 A at 277 V AC and 28 V DC

Specifications

BrandDAYTON
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What contact ratings does the 12 V DC coil relay support for AC and DC loads?

The 11-pin relay carries 10 A at 277 V AC and 10 A at 28 V DC.

What are the body dimensions for the square plug-in base?

The body measures 1.37 in wide, 1.97 in high and 1.4 in deep.

How is the relay installed and what common step is missed?

Push the relay straight into an 11-pin socket until fully seated; users often stop before the pins lock in place.
