Dayton 16N196 10 in bench drill press, belt drive, 120V AC, 1/3 hp, 5 speeds

Dayton

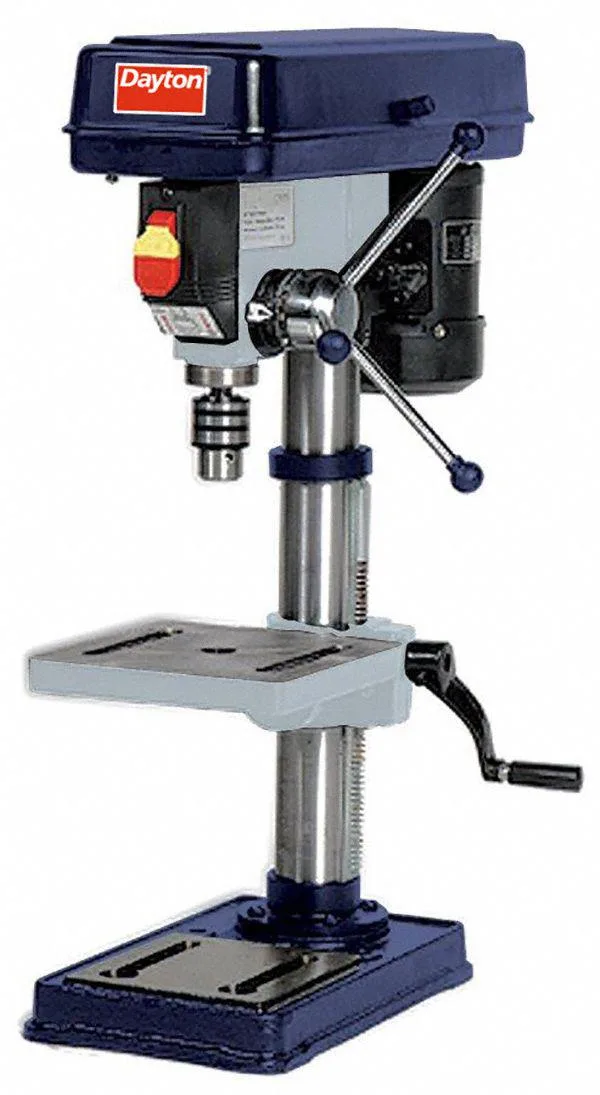

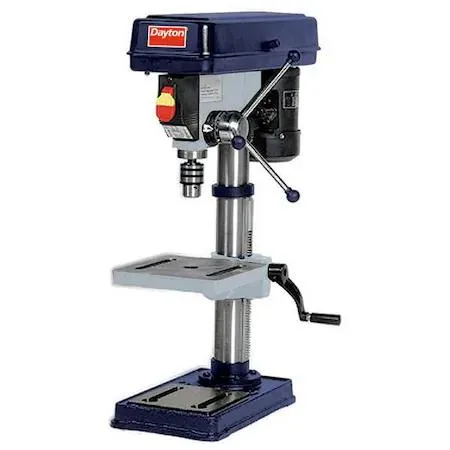

Dayton 16N196 10 in bench drill press

SKU CH-40YV-X0MAX

Benchtop drill press with 10 in swing, 1/3 hp motor and five step-pulley speeds for metal and wood drilling

  • 10 in swing handles wider workpieces
  • 1/3 hp motor powers through metal and wood
  • 5 speed settings match bit to material
  • 1/2 in keyed chuck secures large bits
  • 120 V AC plug fits standard outlets

Dayton 16N196 10 in bench drill press

This benchtop drill press handles metal and wood using a 1/3 hp motor on 120V AC. It offers five fixed speeds selected by a step pulley for drilling, countersinking and reaming tasks. The 10 in swing and 5 in spindle-to-column distance suit smaller workpieces. A 1/2 in keyed chuck with 33JT taper holds standard bits.

Check power and bit compatibility before ordering

The machine requires a 120V AC supply and draws power from a 1/3 hp motor. Ensure your workshop circuit can support this voltage. The 33JT spindle taper and 1/2 in keyed chuck determine which bits and arbors fit directly. Verify that your existing tooling matches these specifications. No power down feed or coolant system is included.

Thermals noise and power draw in normal use

The 1/3 hp motor runs on standard 120V AC household current for typical bench drilling. Belt drive and step pulley operation produce moderate mechanical noise during cuts. No coolant system is fitted, so heat builds in the bit and workpiece during extended steel drilling. Allow the motor and quill to cool between heavy operations.

Highlights

  • 10 in swing handles wider workpieces
  • 1/3 hp motor powers through metal and wood
  • 5 speed settings match bit to material
  • 1/2 in keyed chuck secures large bits
  • 120 V AC plug fits standard outlets

Specifications

BrandDAYTON

Questions about this item

Does the 16N196 come with a chuck key and drill bits, or do I need to buy them separately?

The press includes a 1/2 in keyed chuck and its key; drill bits are not supplied.

Should I choose the 1/3 hp 120V model or a larger motor for drilling 3/8 in steel?

The listed 1/3 hp motor at 120V is rated for 3/8 in steel capacity.

What does the 10 in swing mean when I am positioning a workpiece on the table?

It allows a maximum 10 in diameter workpiece centred under the spindle.
