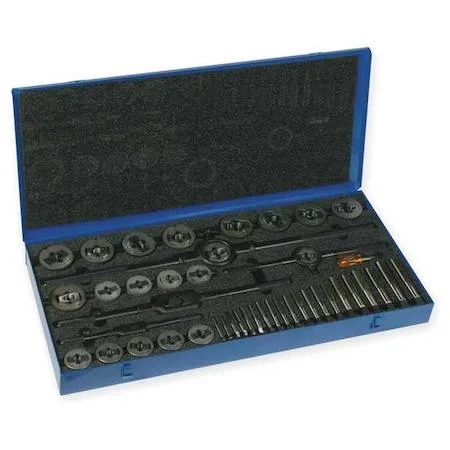

Cleveland 45-piece tap and die set in metal case

Cleveland

Cleveland C00613 45PC Tap and Die Set

SKU CH-DDPZ-ABSJ1

A 45-piece hand tap and die set covering UNC, UNF and UNS threads from 1/4‑20 to 1‑14, with high‑speed steel round dies

  • TypeCutting Tools
  • Size15.500
  • 45 pieces cover 1/4-20 through 1-14 thread sizes
  • High-speed steel dies cut clean threads in steel and iron
  • Round die shape fits standard die stocks for hand threading
  • Plug hand taps start threads easily in through-holes
  • Two-piece dies allow adjustment for precise thread fit

45-piece tap and die set

This Cleveland C00613 set contains 45 pieces covering unified coarse, fine and special thread series from 1/4 inch up to 1 inch. It supplies both hand taps and matching round dies for maintenance, repair and light production threading tasks.

High-speed steel construction under load

The taps and dies are made from high-speed steel, which retains hardness during extended cutting cycles better than carbon steel. This allows the tools to maintain thread accuracy when multiple holes or external threads are cut in succession without frequent re-sharpening.

Thread range limits

The largest dies in the set reach 1 inch diameter with 8 and 14 threads per inch, while the smallest cover 1/4 inch at 20 and 28 threads per inch. Work requiring threads larger than 1 inch or finer than 28 threads per inch falls outside the supplied range.

Highlights

  • 45 pieces cover 1/4-20 through 1-14 thread sizes
  • High-speed steel dies cut clean threads in steel and iron
  • Round die shape fits standard die stocks for hand threading
  • Plug hand taps start threads easily in through-holes
  • Two-piece dies allow adjustment for precise thread fit

Specifications

BrandCLEVELAND
TypeCutting Tools
Size15.500

Questions about this item

Does the 1/2-13 NC tap produce much heat when cutting mild steel all day?

Hand taps generate minimal heat at low speeds; using cutting oil keeps the 1/2-13 NC tap cool during extended threading sessions.

What wrenches are needed to drive the 3/4-10 NC die and 7/8-9 NC tap included in this 45-piece set?

A 1-1/4 in. die stock fits the 3/4-10 NC round die, and a T-handle tap wrench with 1/2 in. capacity turns the 7/8-9 NC hand tap.

Can the 5/8-18 NF die chase threads on an older Grade 5 bolt without damaging it?

The high-speed steel 5/8-18 NF die cleans existing unified fine threads on Grade 5 hardware when turned by hand with lubricant.
