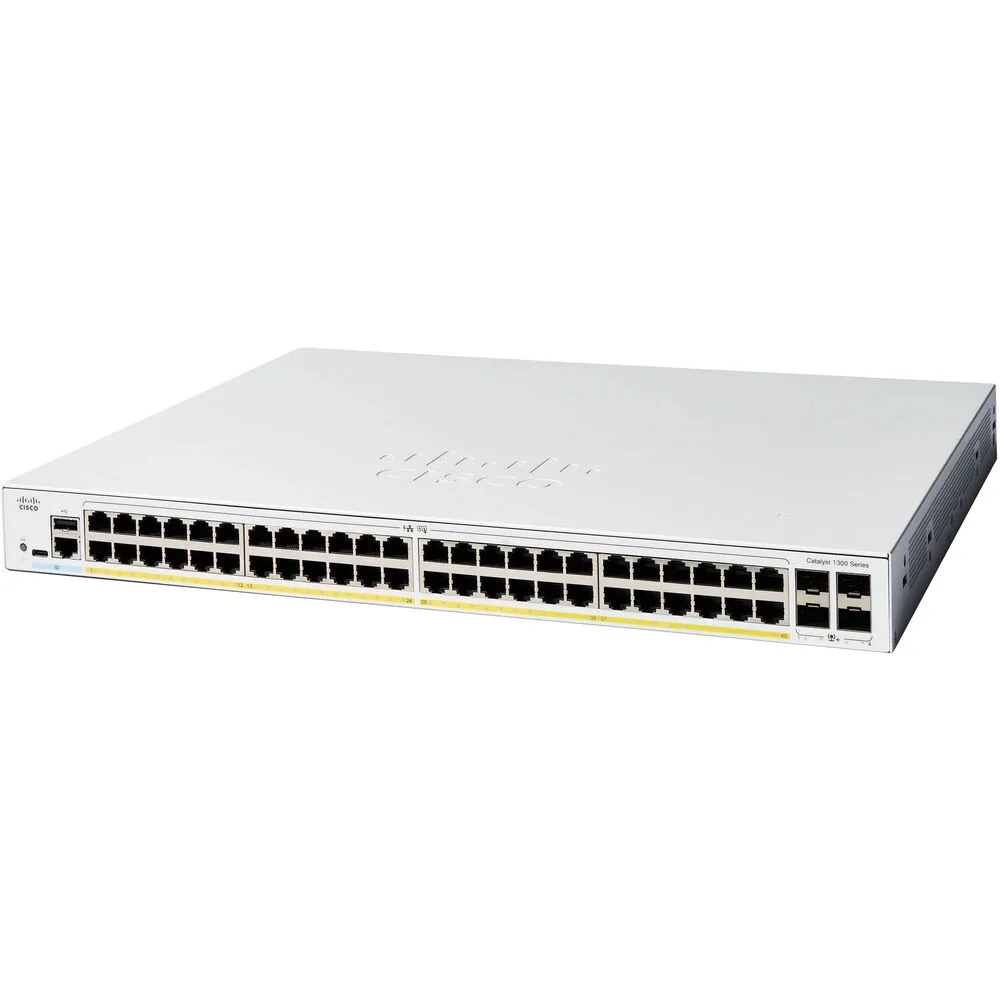

Silver rack-mount switch with 48 RJ45 ports and four SFP+ uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-48FP-4X 48-port PoE+ network switch

SKU CH-FJ7V-EMADG MPN C1300-48FP-4X

A managed 48-port Gigabit PoE+ switch with four 10 Gigabit SFP+ uplinks and a 740 W power budget for rack-mount deployment

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.11ac IEEE
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary Ports48 x RJ45 + 4 x SFP+

Ports 48x 10/100/1000 RJ45 · 4x10G SFP+

PoE · Non-PoE PoE

Power Budget 740W

  • Layer 3 switching streamlines traffic routing across subnets
  • 48 PoE+ ports power devices with a 740 W budget
  • Four 10 GbE SFP+ uplinks connect aggregation links
  • Rack-mountable 1.7" height fits standard cabinets
  • Managed operation enables full network control

48-Port PoE+ Switch with 10G Uplinks

This Cisco Catalyst C1300-48FP-4X provides 48 Gigabit Ethernet RJ45 ports, each delivering PoE+ power, alongside four SFP+ slots for 10 Gigabit Ethernet uplinks. It operates as a managed Layer 3 switch with a 740 W PoE budget and 886.42 W total power consumption. The 1U rack-mountable chassis accepts 120 V or 230 V AC input at 50 or 60 Hz.

Ideal for PoE-Heavy Access Layers

Network teams needing to power dense wireless access points, IP cameras or VoIP handsets from a single managed switch will fit this model. Sites requiring only basic Layer 2 switching or a smaller PoE budget should evaluate lighter alternatives. Builds that cannot accommodate a 1U rack unit or need fiber downlinks beyond the four SFP+ ports must look elsewhere.

740 W PoE Budget Decides Port Density

The 740 W PoE+ budget is the single figure that determines how many of the 48 ports can simultaneously run at full 30 W Class 4 power. Calculate the total draw of all powered devices before committing; if the aggregate exceeds 740 W, some ports must be limited or a higher-budget switch selected.

Highlights

  • Layer 3 switching streamlines traffic routing across subnets
  • 48 PoE+ ports power devices with a 740 W budget
  • Four 10 GbE SFP+ uplinks connect aggregation links
  • Rack-mountable 1.7" height fits standard cabinets
  • Managed operation enables full network control

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part Number1300-48FP-4X
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.11ac
IEEE 802.1x
IEEE 802.3az
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1p
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
Gigabit Ethernet
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
10GBase-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP
Number of SFP Slots:
4
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port TypeTotal Number of Network Ports: 48
Uplink Port: Yes
Stack Port: Yes
Port/Expansion Slot Details:
48 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slot
PoEYes
StackableYes
Layer3
PoE Power Budget740W
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
740 W
Input Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
PoE+
Power Consumption:
886.42 W
DimensionsHeight:
1.7"
Width:
17.5"
Depth:
13.8"
WeightWeight (Approximate):
12.83 lb
Shipping weight6.80 kg
Package size572 × 480 × 97 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the 740 W PoE budget is delivering power to all 48 ports after setup?

Check the management dashboard for per-port PoE draw and verify the total stays within the 740 W budget.

What comes in the box and do I need to buy SFP+ modules for the four uplink slots separately?

The switch ships with a power cord and rack-mount brackets; the four SFP+ uplink slots require compatible SFP+ transceivers purchased separately.

Which uplink option should I choose for 10 Gigabit Ethernet connectivity on this model?

Use the four SFP+ expansion slots with 10GBase-X transceivers to achieve 10 Gigabit Ethernet uplinks.
