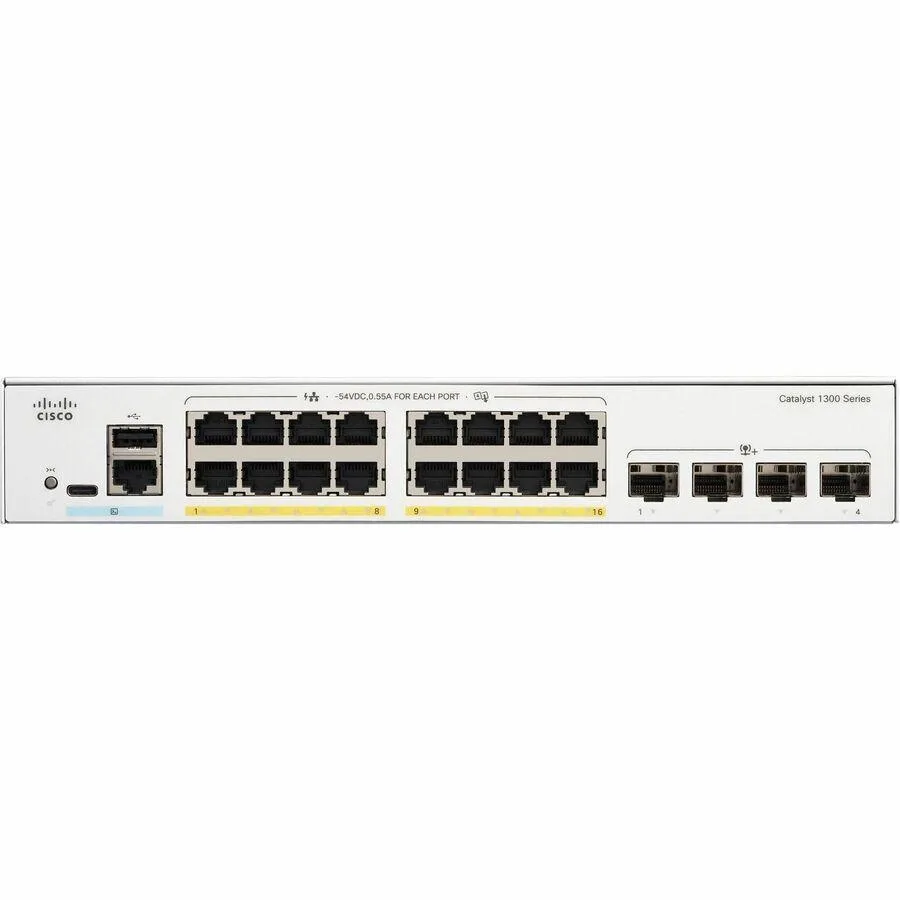

Silver rack-mount network switch, 1U high, sixteen RJ45 ports plus four SFP+ uplinks

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-16P-4X network switch, 16 PoE+ ports, 4 SFP+ uplinks, 120 W PoE budget

SKU CH-GN7D-9EH56 MPN C1300-16P-4X

Managed Layer 3 switch with 16 PoE+ ports, 4 SFP+ uplinks and 120 W power budget

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary Ports16 x RJ45 + 4 x SFP+

Ports 16x 10/100/1000 RJ45 · 4x10G SFP+

PoE · Non-PoE PoE

Power Budget 120W

  • 16 PoE+ ports power phones and access points with a 120 W budget
  • Four 10 GbE SFP+ uplinks provide high-speed fibre or copper aggregation
  • Layer 3 routing enables inter-VLAN traffic without an external router
  • Fanless 1U rack design runs silently in office environments

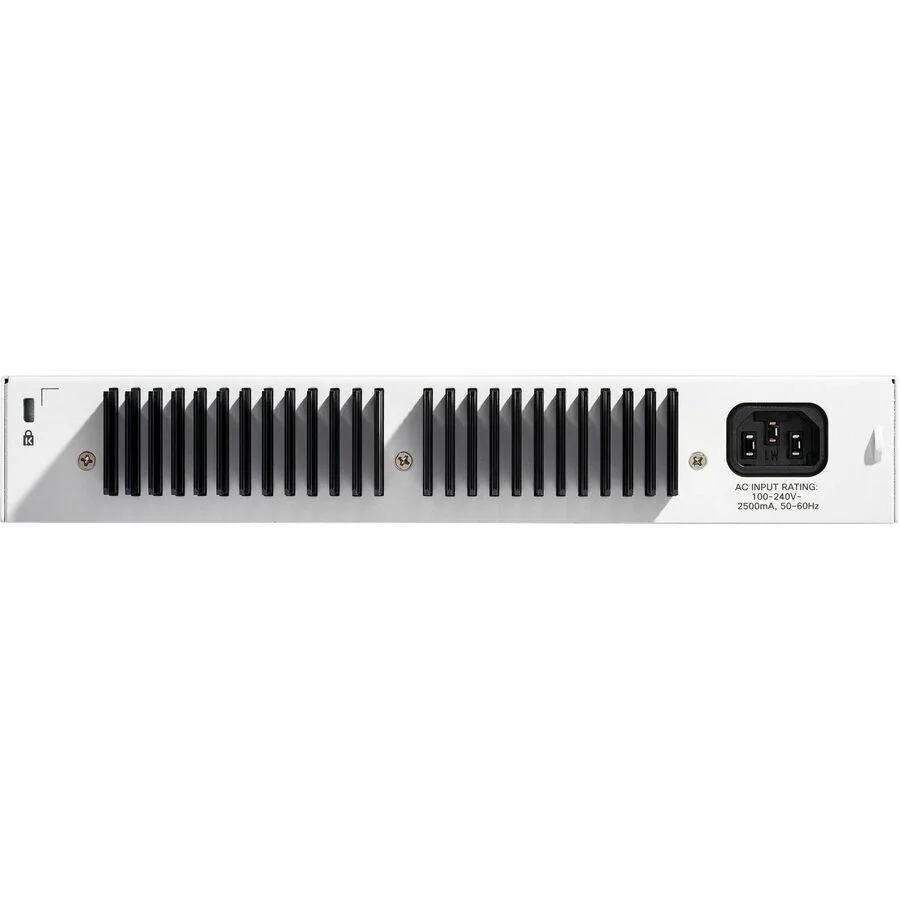

  • Dual-voltage AC input accepts 120 V and 230 V at 50 or 60 Hz

16-port PoE+ switch with 120 W budget

The Cisco Catalyst C1300-16P-4X is a rack-mountable Layer 3 switch built for small and medium business networks. It provides sixteen Gigabit Ethernet ports with PoE+ support and four 10 Gigabit SFP+ uplink slots. The unit operates silently with a fanless design and includes a single internal power supply.

Suits offices powering phones and access points

This switch fits deployments that need managed Layer 3 features, PoE+ for IP phones or wireless access points, and 10 Gbps fibre uplinks. It is not for buyers who need a higher PoE power budget than 120 W, or environments that require redundant power supplies or stacking capability.

120 W PoE budget across 16 ports

The total PoE power budget is 120 W shared across all sixteen RJ-45 ports. This figure decides how many Class 4 devices can run simultaneously, so calculate per-port draw before purchasing.

Highlights

  • 16 PoE+ ports power phones and access points with a 120 W budget
  • Four 10 GbE SFP+ uplinks provide high-speed fibre or copper aggregation
  • Layer 3 routing enables inter-VLAN traffic without an external router
  • Fanless 1U rack design runs silently in office environments
  • Dual-voltage AC input accepts 120 V and 230 V at 50 or 60 Hz

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part NumberC1300-16P-4X
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
10GBase-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Shared SFP Slot:
Yes
Number of SFP+ Slots:
4
Primary Ports16 x RJ45 + 4 x SFP+
Primary Port TypeTotal Number of Network Ports: 16
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slot
PoEYes
Layer3
PoE Power Budget120W
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
120 W
Input Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
279.80 W
DimensionsHeight:
1.7"
Width:
10.6"
Depth:
11.7"
WeightWeight (Approximate):
5.49 lb
Shipping weight4.22 kg
Package size572 × 508 × 394 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I rack-mount the C1300-16P-4X and which step is often missed?

Use the supplied brackets to secure the 1U chassis in a standard rack; the step often missed is tightening all four bracket screws so the fanless switch cannot shift and block airflow.

What maintenance will the C1300-16P-4X need over its life?

The fanless design eliminates fan replacements; plan only on periodic dust removal from the vent slots and replacing any SFP+ transceiver that fails.

What is the first limit reached when all 16 PoE+ ports run continuously?

The 120 W PoE budget caps total powered-device draw, so sustained full-load operation on every port will hit that budget before port or uplink throughput limits.
