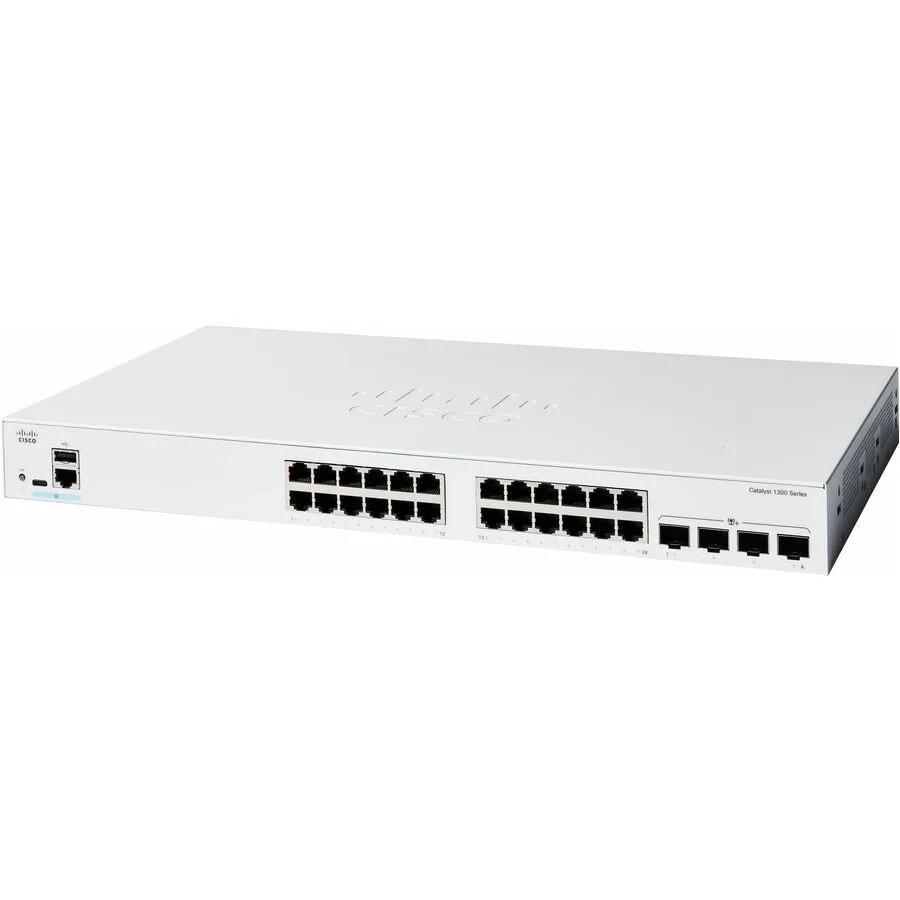

Silver rack-mountable network switch, 24 RJ45 ports and 4 SFP+ uplinks, 1.7 by 17.5 by 9.5 inches

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-24T-4X network switch, 24 RJ45 + 4 SFP+

SKU CH-HV6N-S8MQY MPN C1300-24T-4X

Managed 24-port Gigabit switch with four 10 GbE SFP+ uplinks and Layer 3 routing

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary Ports24 x RJ45 + 4 x SFP+

Ports 24x 10/100/1000 RJ45 · 4x10G SFP+

PoE · Non-PoE Non PoE

Power Budget N/A

  • 24 RJ45 ports connect PCs, printers and peripherals to the LAN
  • Four SFP+ uplinks enable 10 Gigabit Ethernet links to servers or core switches
  • Layer 3 routing support builds scalable network designs without extra hardware
  • Fanless, 27.25 W operation cuts energy costs and runs silently
  • Cisco Business mobile app and web UI simplify setup and monitoring in minutes

24-port Gigabit switch with 10G uplinks

The Cisco Catalyst C1300-24T-4X delivers 24 RJ45 ports at 10/100/1000 speeds plus four SFP+ slots for 10 Gigabit Ethernet uplinks. It operates at Layer 3 for routing between VLANs and is managed through a web interface, mobile app or Cisco Business Dashboard. The fanless design runs on 120 V or 230 V AC, consuming 27.25 W.

Gigabit copper and 10G fibre limits

Twisted-pair links negotiate at 10, 100 or 1000 Mbps per port; the four SFP+ cages accept 10GBase-X optics for fibre uplinks. IEEE 802.3az Energy Efficient Ethernet reduces power on idle links. The switch supports IEEE 802.3ad link aggregation, 802.1D/w/s spanning tree and 802.1p QoS, but provides no PoE power on any port.

Small-business core with room to grow

Twenty-four copper ports connect workstations, printers and access points while the four 10G uplinks aggregate traffic to servers or a distribution switch. Layer 3 routing handles inter-VLAN traffic without a separate router. Security features include IP-MAC port binding and IPv6 First Hop Security. The unit fits a standard 1U rack space and requires no licence fees.

Highlights

  • 24 RJ45 ports connect PCs, printers and peripherals to the LAN
  • Four SFP+ uplinks enable 10 Gigabit Ethernet links to servers or core switches
  • Layer 3 routing support builds scalable network designs without extra hardware
  • Fanless, 27.25 W operation cuts energy costs and runs silently
  • Cisco Business mobile app and web UI simplify setup and monitoring in minutes

Specifications

BrandCisco Systems, Inc
ModelCatalyst
Part NumberC1300-24T-4X
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10/100/1000Base-T
10GBase-X
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Shared SFP Slot:
Yes
Number of SFP+ Slots:
4
Primary Ports24 x RJ45 + 4 x SFP+
Primary Port TypeTotal Number of Network Ports:24
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:
24 x Gigabit Ethernet Network Port
4 x 10 Gigabit Ethernet Expansion Slot
PoENo
Layer3
PowerInput Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
27.25 W
DimensionsHeight:
1.7"
Width:
17.5"
Depth:
9.5"
WeightWeight (Approximate):
6.13 lb
Shipping weight5.17 kg
Package size584 × 452 × 231 mm

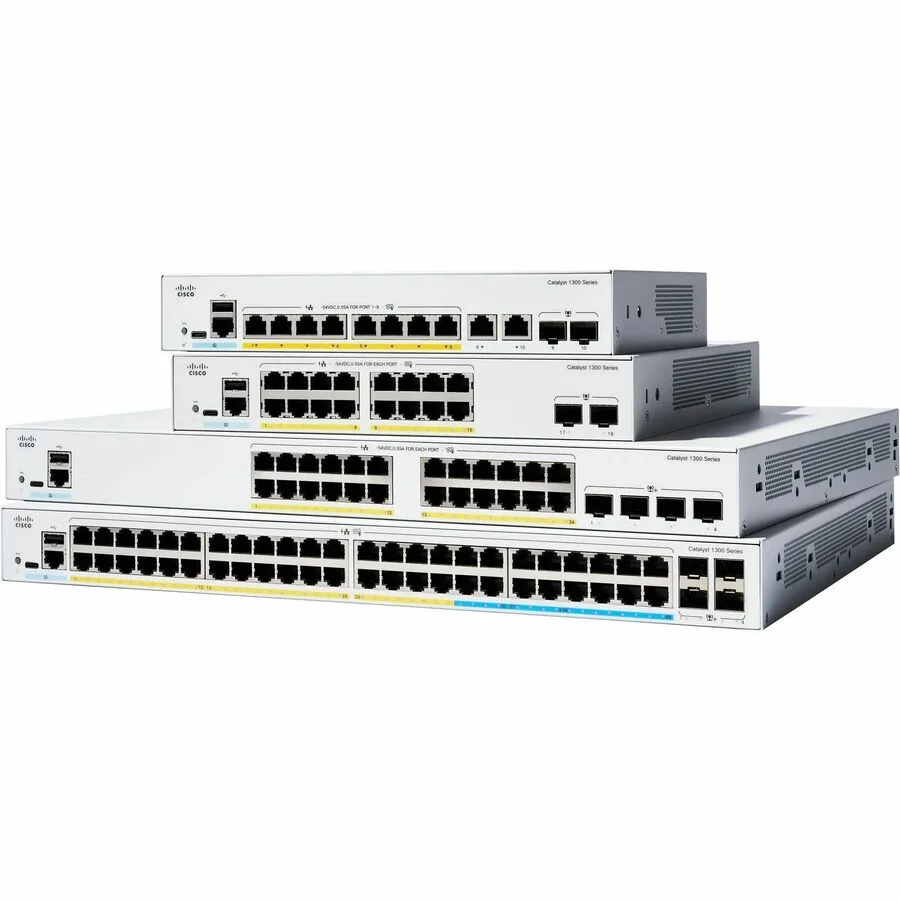

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 24-port RJ45 model with 4 SFP+ uplinks or a different capacity?

This model provides exactly 24 Gigabit RJ45 ports and 4 SFP+ uplink slots, so choose it when you need that specific port count and 10 Gigabit uplinks.

What does the 10 Gigabit Ethernet uplink spec mean once the switch is installed?

The four SFP+ slots accept 10GBase-X modules, giving each uplink up to 10 Gbit/s for server or core connections.

Which SFP+ standard do the uplinks use and what speed does it cap at?

The uplinks use SFP+ slots running 10GBase-X, capping each at 10 Gbit/s.
