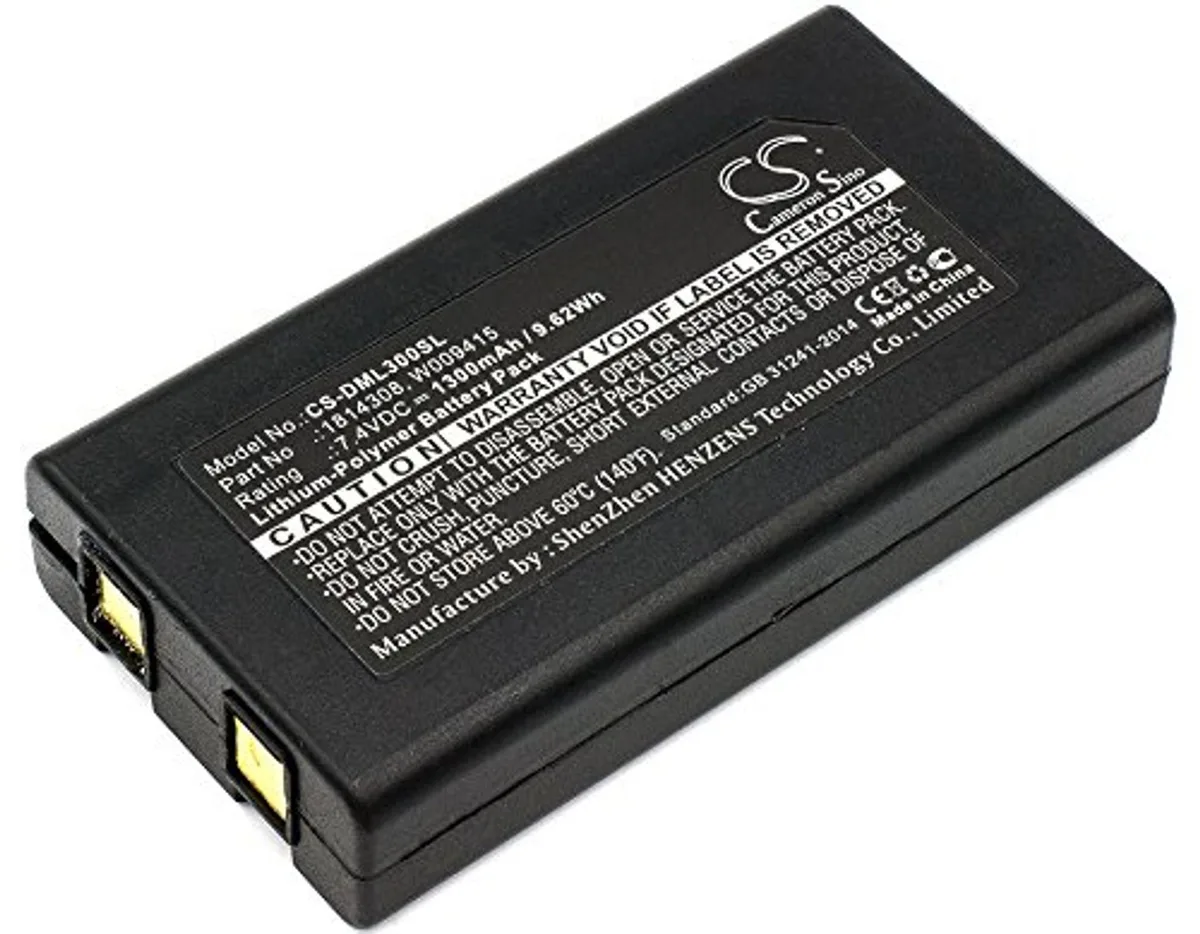

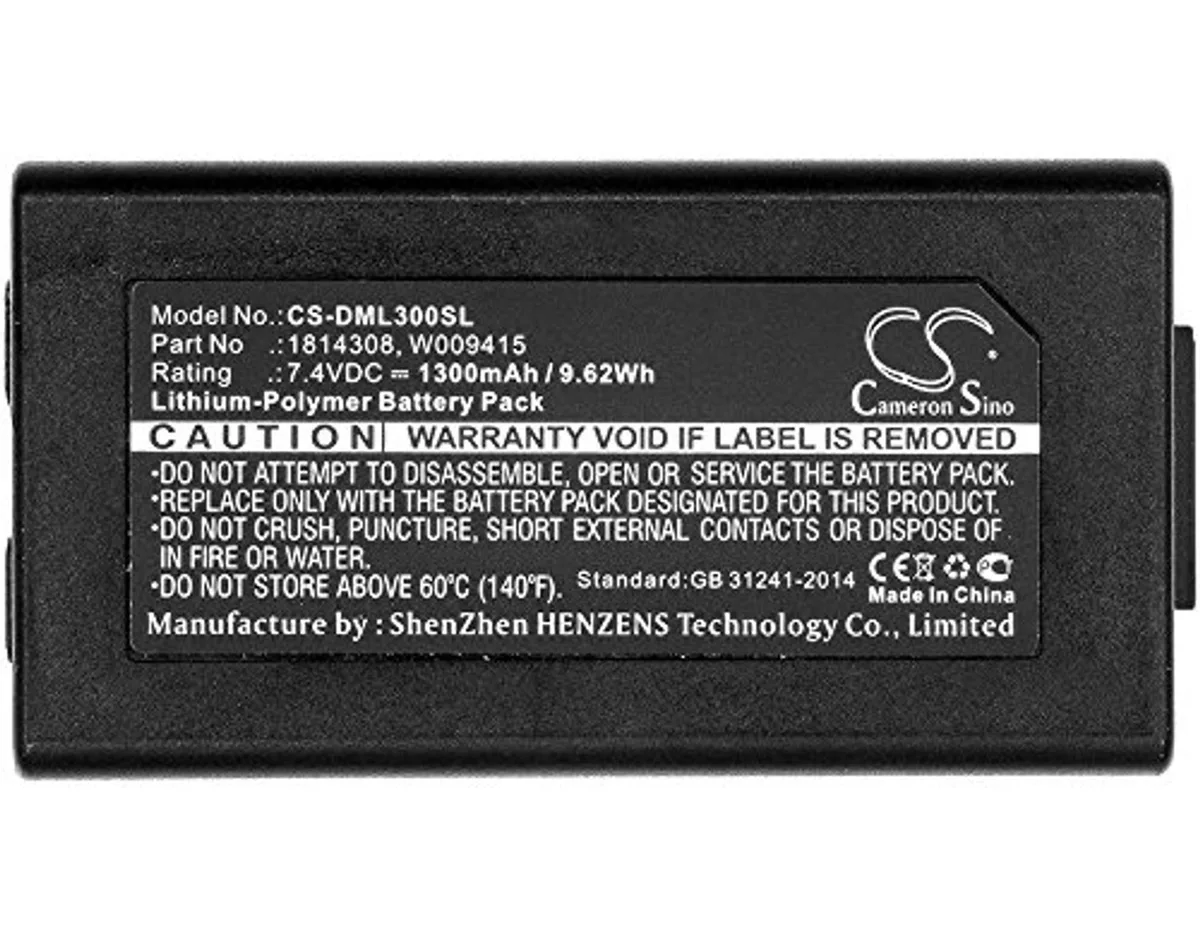

Rectangular rechargeable battery pack with black plastic casing and connector terminals

Cameron Sino Battery for DYMO LabelManager 500TS 1300mAh

SKU CH-A023-N1VYZ

Replacement rechargeable battery for DYMO label makers, 1300 mAh at 7.4 V with built-in protection circuits

  • Specifications78.54 x 41.18 x 16.55
  • Battery Pack78.54 x 41.18 x 16.55
  • Battery Capacity1300 milliamp_hours
  • 1300 mAh capacity powers extended labelling sessions
  • 4 V 9.62 Wh rating matches original DYMO specifications
  • 54 x 41.18 x 16.55 mm form factor fits LabelManager 500TS and XTL 300 models
  • ISO9001 RoHS CE certified with overcharge and short-circuit protection
  • 2 g lightweight pack installs easily using widely available video guides

Direct Replacement Battery

This 1300mAh lithium-ion pack is built to the exact dimensions of the original DYMO power source for the LabelManager 500TS and compatible handheld label makers. It delivers 7.4 volts and 9.62Wh to keep portable printers running during labelling tasks. The rechargeable cell weighs 62.2g and fits the existing battery cavity without modification.

Verify Model And Connector

Confirm your device appears on the supported list: LabelManager 500TS, LM-500TS, Wireless PnP, Mobile Label Maker, MobileLabeler, XTL 300 or the 1982171 printer. Cross-reference the original battery part numbers 1814308, 643463 or W009415 before ordering. Ensure the connector aligns correctly when inserting the pack into the compartment.

Steady Output For Continuous Printing

The decoded chip communicates with the printer electronics to maintain stable voltage through long print runs rather than just brief bursts. Integrated protection guards against overcharge, over-discharge, over-voltage and short circuits during extended use. Allow two to three full charge cycles for the pack to reach its rated 1300mAh capacity. Do not expose the battery to temperatures above 60 140.

Highlights

  • 1300 mAh capacity powers extended labelling sessions
  • 4 V 9.62 Wh rating matches original DYMO specifications
  • 54 x 41.18 x 16.55 mm form factor fits LabelManager 500TS and XTL 300 models
  • ISO9001 RoHS CE certified with overcharge and short-circuit protection
  • 2 g lightweight pack installs easily using widely available video guides

Specifications

BrandCameron Sino
Model1982171, LabelManager 500TS, LabelManager LM-500TS, LabelManager Wireless PnP, Mobile Label Maker, MobileLabeler, PnP Wireless, XTL 300, XTL 300 handheld label makers
Part Number1814308, 643463, W009415
Specifications78.54 x 41.18 x 16.55
Battery Pack78.54 x 41.18 x 16.55
Battery Capacity1300 milliamp_hours

Questions about this item

Does the package include only the battery or are tools and adhesive supplied for fitting it into the LabelManager 500TS?

The package contains the replacement battery with shock-absorbing foam; installation tools and adhesive are not included.

Which part number should I match — 1814308, 643463 or W009415 — to be sure this 1300 mAh pack fits my device?

All three part numbers refer to the same battery; confirm any one of them against your original pack to verify compatibility.

What does the 1300 mAh / 9.62 Wh rating mean for daily use in a LabelManager 500TS?

At 7.4 V the pack stores 9.62 Wh, giving typical all-day label printing before a recharge is needed.
