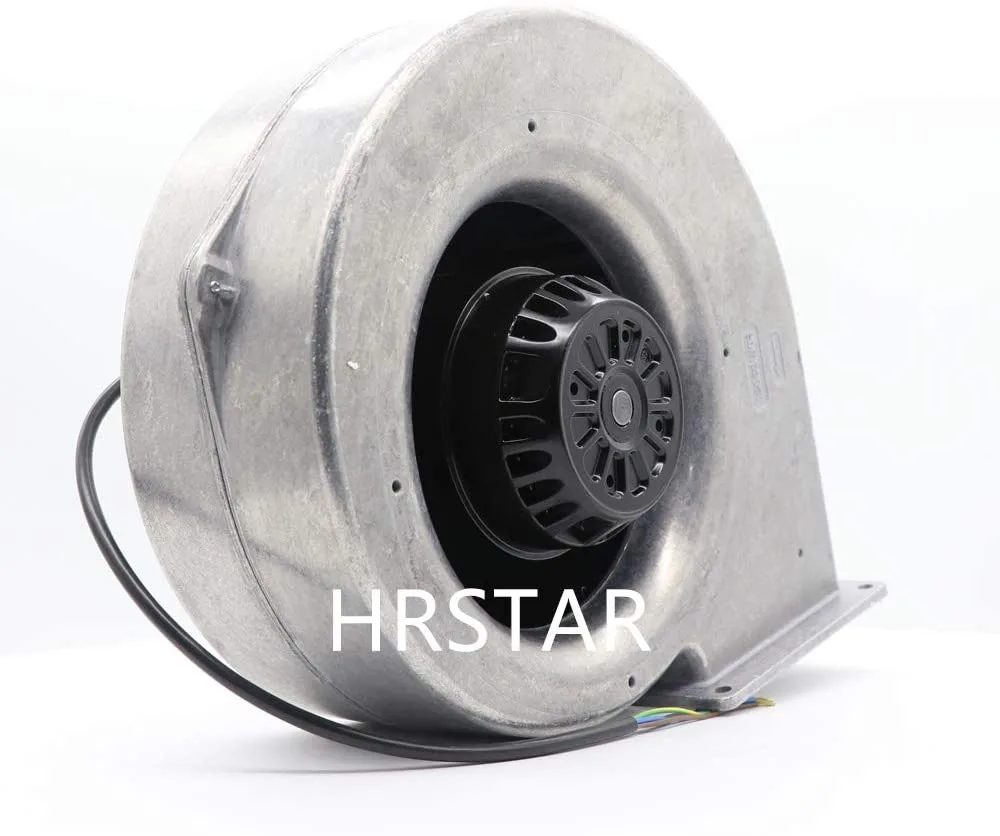

Circular 180mm centrifugal blower in black painted steel housing with aluminum casing

CAFELE

CAFELE No.G2E180-EH03-01 Blower 230V 400/415W 180mm

SKU CH-GHP9-6K3TK MPN No.G2E180-EH03-01

A 180 mm forward-curved centrifugal blower running on 230 VAC at 50/60 Hz, delivering 1950/2150 RPM with 400/415 W power draw and IP44 protection

  • TypeCase Fan
  • 180 mm forward-curved centrifugal design moves high air volume
  • 230 VAC single-phase motor runs on standard mains supply
  • Ball-bearing motor rated for continuous operation at 1950 / 2150 RPM
  • IP44 protection resists dust and water splashes in harsh environments
  • Die-cast aluminium housing with steel impeller weighs 5.4 kg

Blower for HVAC and industrial use

The CAFELE No.G2E180-EH03-01 is a 180 mm forward-leaning centrifugal blower built for 230 VAC mains supply. It suits installers and maintenance teams who need a direct-drive air mover for air-conditioning units, ventilation cabinets or similar equipment. The IP44-rated die-cast aluminium housing and ball-bearing motor meet CE, CCC and EAC approvals for commercial environments. Operating range spans -25 °C to 40 °C ambient.

Ball-bearing motor and capacitor standard

The ebm-papst M2E074-EI motor runs on ball bearings for continuous duty without sleeve-bearing wear. A built-in S0 (CE) capacitor simplifies wiring to a single-phase 50/60 Hz supply. Sheet-steel impeller painted black resists corrosion in humid ductwork. The package contains the blower only; no mounting brackets, duct adapters or speed controllers are supplied.

400 to 415 W airflow capacity

At 50 Hz the unit draws 1.75 A and delivers 400 W at 1950 rpm; at 60 Hz it draws 1.82 A for 415 W at 2150 rpm. This output handles typical residential and light-commercial air-handling loads. It will not satisfy high-static-pressure industrial ducts or large-scale process-cooling systems that demand higher pressure rise or multi-stage configurations.

Highlights

  • 180 mm forward-curved centrifugal design moves high air volume
  • 230 VAC single-phase motor runs on standard mains supply
  • Ball-bearing motor rated for continuous operation at 1950 / 2150 RPM
  • IP44 protection resists dust and water splashes in harsh environments
  • Die-cast aluminium housing with steel impeller weighs 5.4 kg

Specifications

TypeCase Fan

Questions about this item

What maintenance will the ball bearing motor need over time?

The blower uses a ball bearing motor rated for continuous operation at up to 40 °C ambient; bearings are sealed and not user-serviceable, so no routine lubrication is required.

Which limit appears first during sustained 400/415 W operation?

The IP44 housing and Class B insulation restrict continuous use to ambients no higher than 40 °C; exceeding that temperature is the first thermal limit reached.

How much heat and power does the unit draw when running all day?

At 230 VAC the blower draws 1.75 A at 50 Hz or 1.82 A at 60 Hz, consuming 400 W or 415 W respectively; all input power becomes airflow and heat.
