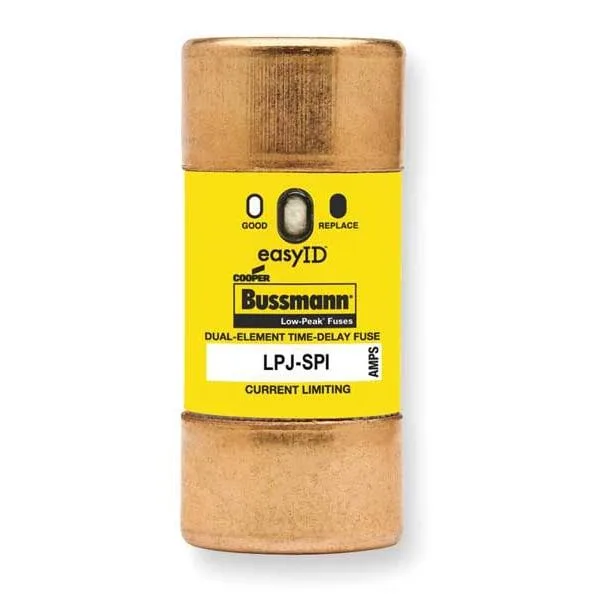

Cylindrical 35 A Class J fuse with indicator window

Bussmann

Bussmann LPJ-I Series 35 A Class J Time-Delay Indicating Fuse

SKU CH-D06B-23DS1

35 A Class J time-delay fuse with indicating feature for 600 V AC circuits

  • 35 A rating protects circuits up to 35 amps
  • Time-delay characteristic prevents nuisance trips on motor start-up
  • Indicating window shows blown status at a glance
  • 300 kA interrupting capacity at 600 V AC handles high fault currents
  • Class J dimensions fit standard non-rejection fuse blocks

35 A Class J Time-Delay Fuse

The Bussmann LPJ-I Series fuse provides 35 A circuit protection at 600 V AC and 300 V DC with a cylindrical melamine body. Its time-delay characteristic tolerates temporary inrush currents while the indicating feature gives visual confirmation of a blown element. The dual-element design delivers a 100 kA interrupt rating at 300 V DC and 300 kA at 600 V AC.

Suits panels using Class J non-rejection blocks

This fuse fits CH60J, JM600, JT600 and JTN600 fuse block series where a 35 A Class J time-delay element is specified. It is not for circuits requiring a rejection-style Class J fuse, for applications needing a faster-acting characteristic, or for systems rated above 600 V AC or 300 V DC.

Handles 35 A continuous loads

The 100 kA DC and 300 kA AC interrupt ratings give ample headroom for industrial motor-start and transformer inrush currents. It runs out when continuous current exceeds 35 A or when the applied voltage surpasses the 600 V AC or 300 V DC limits.

Highlights

  • 35 A rating protects circuits up to 35 amps
  • Time-delay characteristic prevents nuisance trips on motor start-up
  • Indicating window shows blown status at a glance
  • 300 kA interrupting capacity at 600 V AC handles high fault currents
  • Class J dimensions fit standard non-rejection fuse blocks

Specifications

BrandBUSSMANN

Questions about this item

Which fuse blocks accept the 35 A Class J LPJ-I fuse?

Compatible blocks include the CH60J, JM600, JT600 and JTN600 series that take a cylindrical Class J body.

Will the indicating feature work on a 300 V DC circuit?

Yes, the interrupt rating is 100 kA at 300 V DC and the indicator operates at that voltage.

How can I confirm the fuse has blown after installation?

The built-in indicator provides a visual signal when the element opens, showing the fuse has operated.
