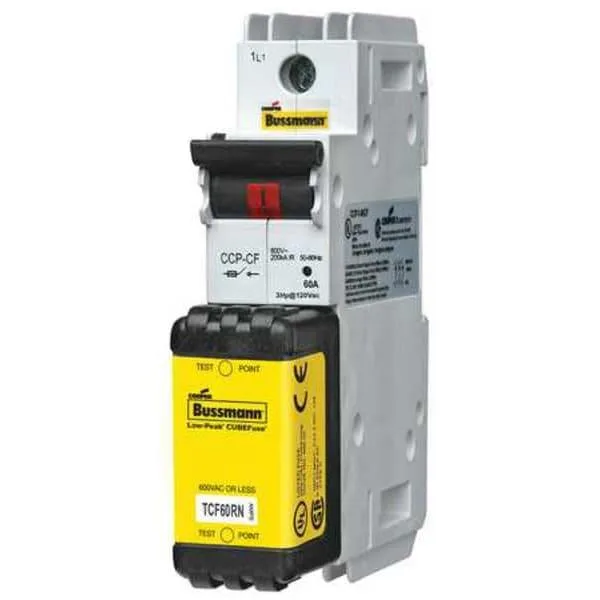

Compact single-pole disconnect switch, grey plastic housing, DIN-rail mount, box-lug terminals

Bussmann

Bussmann CCP2-1-60CF Disconnect Switch 31-60A 347V line protection

SKU CH-MY08-KEWTH

Single-pole Class J fuse block handles 31 to 60 A at 347 V with finger-safe box-lug terminals for 18 to 4 AWG wire on DIN rail

  • Finger-safe design protects installers during maintenance
  • 31-60 A range covers diverse load requirements
  • 347 V rating suits industrial line protection
  • DIN rail mounting speeds up panel assembly
  • 18-4 AWG box lugs accept varied wire sizes

Single-Pole Class J Disconnect Switch

The Bussmann CCP2-1-60CF is a single-pole disconnect switch rated for 31 to 60 amps at 347 volts. It accepts Class J fuses up to 600 volts AC and mounts on standard DIN rail for panel installations. The finger-safe box-lug connector accepts wire from 18 to 4 AWG. It carries CE, CSA, cULus, RoHS and UL Listed certifications.

For Panel Builders Needing 347 V Isolation

This switch suits electricians and OEMs building control panels that require a compact, non-indicating disconnect for Class J fuses in the 31 to 60 A range. It is not for installers who need a multi-pole device, a blown-fuse indicator, or a fuse class other than Class J. Buyers requiring a different amp range or voltage rating should look at alternative series.

Verify DIN Rail Space and Fuse Dimensions

Before ordering, confirm the panel has a standard DIN rail and sufficient width for the one-inch module. Ensure the available Class J fuses measure 2-1/8 inches long by 1 inch wide by 1-1/8 inches deep. Check that the 18 to 4 AWG box-lug terminals match the wire gauge used in the circuit.

Highlights

  • Finger-safe design protects installers during maintenance
  • 31-60 A range covers diverse load requirements
  • 347 V rating suits industrial line protection
  • DIN rail mounting speeds up panel assembly
  • 18-4 AWG box lugs accept varied wire sizes

Specifications

BrandEATON BUSSMANN

Questions about this item

What wire gauge must my incoming circuit use to fit the box-lug terminals on this disconnect switch?

The connector accepts solid or stranded copper from 18 AWG up to 4 AWG, so any wire in that range will seat correctly in the box lug.

Will the single-pole CCP2-1-60CF sit on the same DIN rail as my existing multi-pole supplemental protectors?

Yes, the switch uses a standard DIN-rail mounting foot, so it clips onto the same rail used by other DIN-mounted devices in the panel.

How can I confirm the switch is carrying load after I close the handle?

Measure voltage across the line and load terminals with a multimeter; a reading near the circuit voltage shows the contacts are closed and conducting.
