BINKS 2101-4308-2 Conventional Sprayer Pressure .070" Nozzle

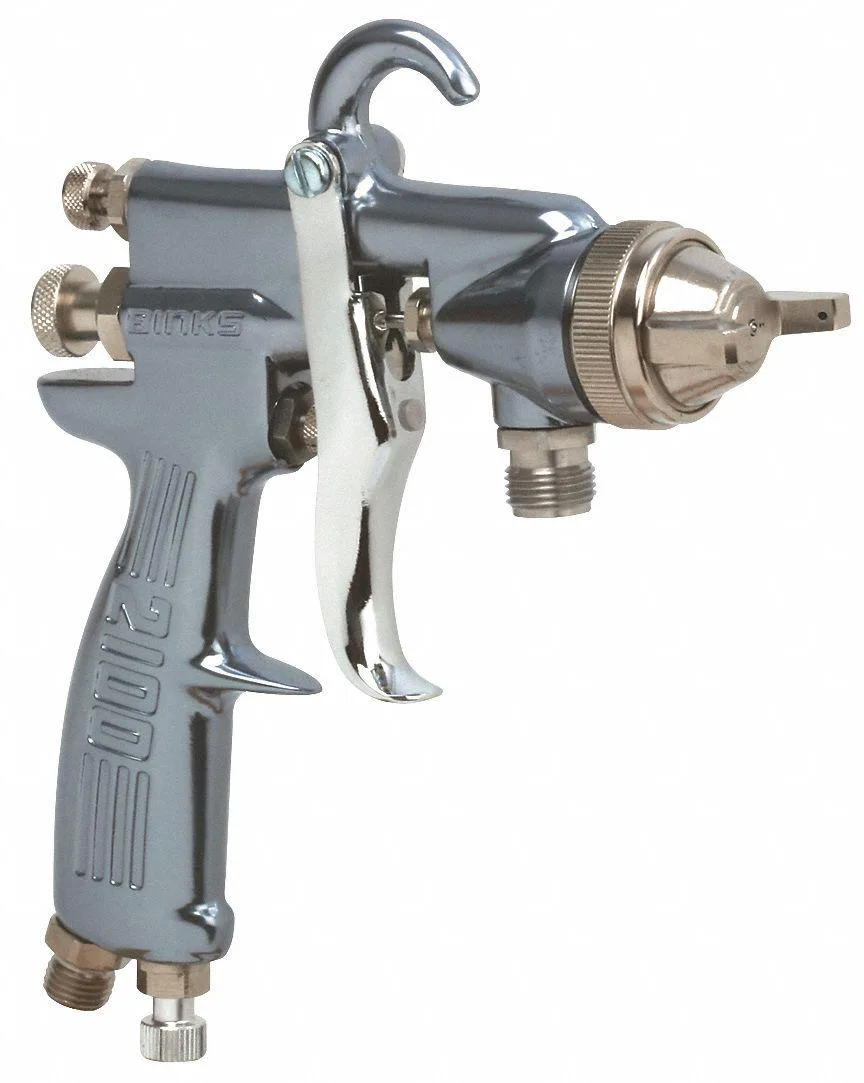

Binks 2101-4308-2 Conventional Sprayer

The Binks 2101-4308-2 is a conventional pressure-feed spray gun built for low-to-medium viscosity coatings. It features a 1.8 mm nozzle, identified as .070 inch, and produces an 11 inch pattern for consistent coverage. The gun connects via a 1/4 inch air inlet and is supplied with two regulated pressure cups, a 5 ft air hose and a 5 ft fluid hose. It is designed for use with manufacturer number 812490.

Build integration and air requirements

Operating the sprayer requires a compressed-air source able to deliver 14.2 cfm at 30 psi, 21.2 cfm at 50 psi or 28.3 cfm at 70 psi depending on the desired atomisation pressure. The pressure-feed arrangement removes the need for a gravity cup on the gun, freeing the operator from top-heavy balance and allowing continuous spraying from the supplied regulated cups. The 1/4 inch air inlet and included hose assemblies simplify connection to a shop supply.

Suitability and limitations

This gun suits technicians applying low-to-medium viscosity materials who prefer a pressure-fed setup with regulated cups included. It is not suited for high-viscosity coatings that demand larger fluid passages or higher atomisation pressures than the listed ranges. Buyers who need an integrated cup on the gun or a different nozzle size should look at alternative configurations.
