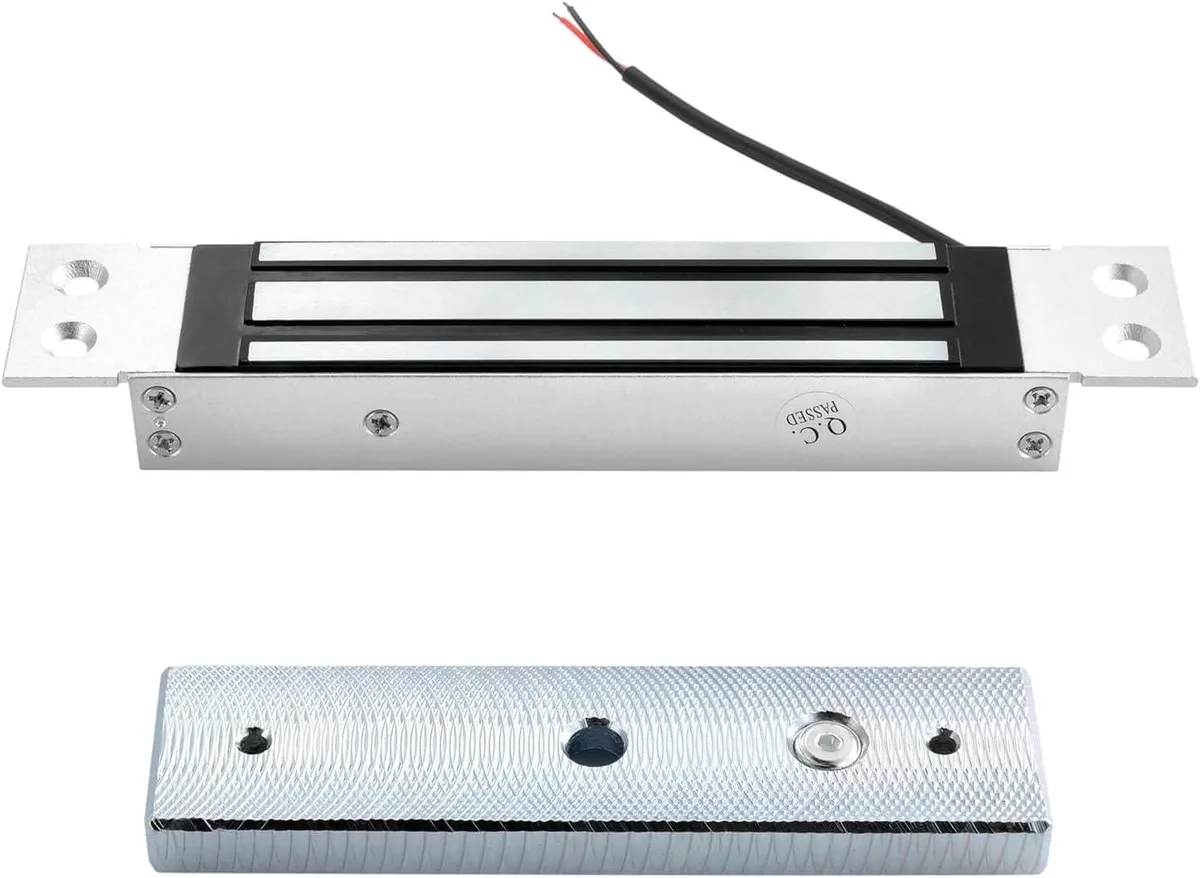

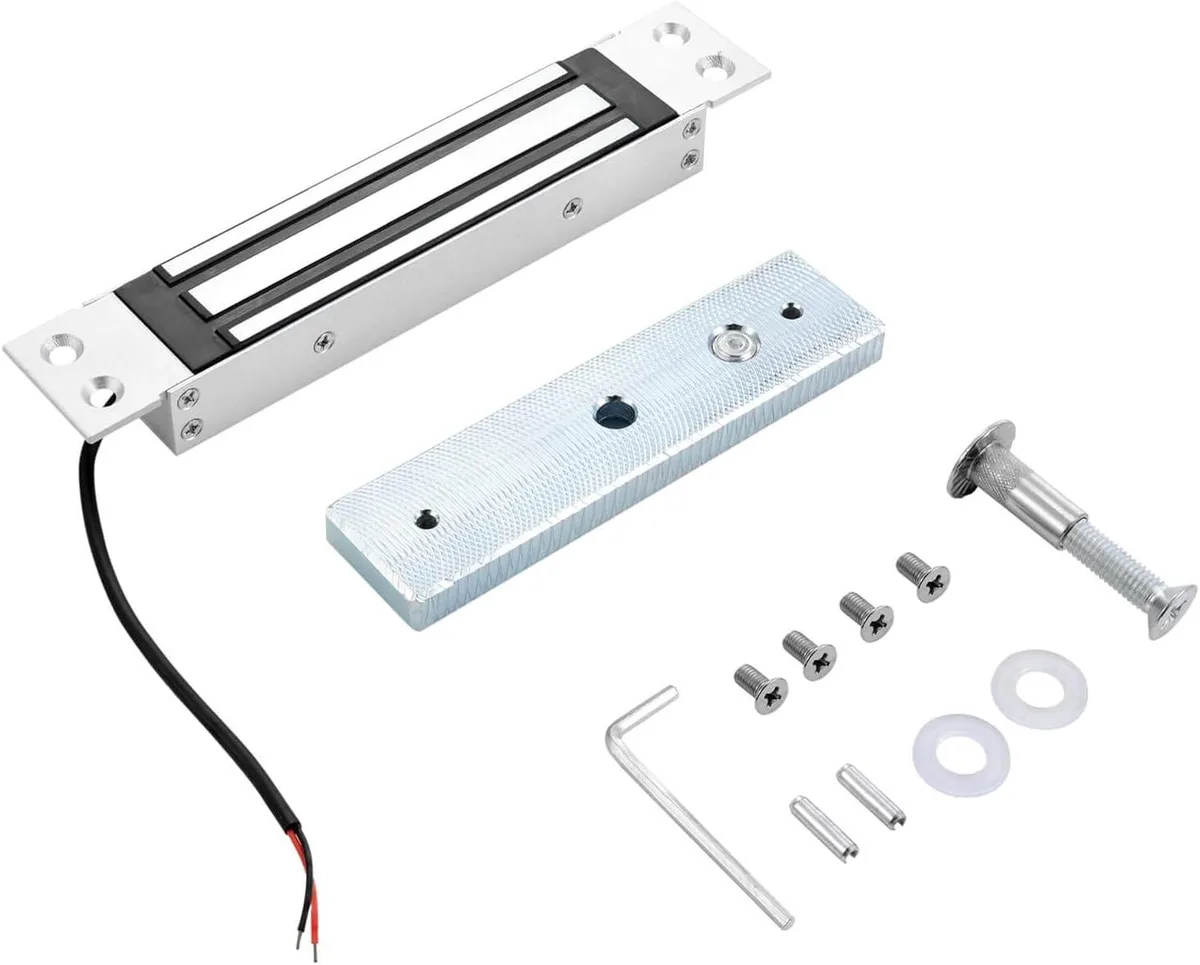

Rectangular stainless-steel electromagnet flush-mount lock with matching armature plate

BFKK

BFKK Electromagnet Flush Mount 180KG 12V DC Fail-Safe Access Barrier

SKU CH-5T6J-A3D03

Flush-mount electromagnetic lock with 180 kg holding force, 12 V DC fail-safe operation and waterproof stainless-steel construction

  • 180 kg holding force secures doors firmly
  • Fail-safe 12 V DC unlocks instantly when power is cut
  • Stainless steel body with anti-residual magnesium resists corrosion
  • Waterproof surface allows reliable outdoor installation
  • Flush-mount design fits wood, metal or fireproof doors

Flush-Mount Electromagnet Lock 180KG

This 12 V DC fail-safe electromagnet mounts flush in the door frame and delivers a holding force of 180 kg (350 lbs). It locks while power is applied and releases instantly when power is removed. The stainless-steel body with anti-residual magnesium resists residual magnetism and is waterproof for exterior use.

Upgrade from Surface-Mount or Lower-Force Locks

Replace a surface-mounted maglock when a clean, recessed fit is required or when the existing lock cannot meet the 180 kg rating. The jump is worthwhile for doors that need both a flush appearance and the higher holding force supplied by this unit.

Suits Wood, Metal and Fireproof Doors

Installers fitting wooden, metal or fireproof doors that can accommodate the 191 × 35 × 22 mm body and 130 × 33 × 11 mm armature will find this lock compatible. It is not suited for doors that cannot be mortised for flush mounting or for systems that require a fail-secure (power-to-unlock) operating mode.

Highlights

  • 180 kg holding force secures doors firmly
  • Fail-safe 12 V DC unlocks instantly when power is cut
  • Stainless steel body with anti-residual magnesium resists corrosion
  • Waterproof surface allows reliable outdoor installation
  • Flush-mount design fits wood, metal or fireproof doors

Specifications

No published specifications for this item yet.

Questions about this item

What are the lock body and armature plate dimensions for the flush-mount cut-out?

The lock body measures 191 x 35 x 22 mm (7.52 x 1.38 x 0.87 inch) and the armature plate measures 130 x 33 x 11 mm (5.12 x 1.30 x 0.43 inch), so the door and frame must accommodate those profiles.

How is the 12 V DC fail-safe magnet wired so it unlocks when power is removed?

Connect the two power leads to a 12 V DC supply; the built-in voltage spike suppressor protects the coil, and because the lock is normally closed it stays locked while powered and releases the 180 kg holding force the moment power is cut.

Does the stainless-steel, waterproof housing need any periodic maintenance to keep the 180 kg hold rating?

The housing is waterproof and the anti-residual magnesium design minimises residual magnetism, so no scheduled lubrication or adjustment is required; simply keep the mounting surfaces clean and verify the armature plate aligns flush for full 350 lb holding force.
