BFKK Electric Magnetic Lock 2 Pack 60kg 130LBs NC DC12V
Two-pack fail-safe magnetic locks with 60 kg holding force for 90° swinging doors on wood, glass, metal or fire-rated frames
- 60 kg holding force secures doors reliably
- NC fail-safe mode locks when power runs
- Built-in voltage spike suppressor protects the circuit
- Fits wood, glass, metal and fire doors
- Compact 80 × 37.3 × 23.3 mm body installs under door frame
Two-Pack Electromagnetic Lock Kit
This kit supplies two DC 12 V electromagnetic locks rated at 60 kg holding force each. They are designed for access-control systems on wooden, glass, metal or fire-rated doors. The fail-safe NC mode keeps the door locked while power is applied and releases it when power is cut.
60 kg Holding Force per Unit
Each lock draws 0.11 A to 0.15 A at 12 V and includes a built-in voltage spike suppressor. The 90-degree swing mounting suits standard door frames. The holding force covers typical interior security doors but is not intended for heavy exterior or high-traffic commercial entries.
Replaces Mechanical Latches or Strikes
The magnetic latch mounts under the top of the door frame, eliminating visible hardware and mechanical wear. It upgrades from simple electric strikes where silent, non-mechanical locking is preferred. The jump is worthwhile when a clean, fail-safe installation with minimal maintenance is required.
Highlights
- 60 kg holding force secures doors reliably
- NC fail-safe mode locks when power runs
- Built-in voltage spike suppressor protects the circuit
- Fits wood, glass, metal and fire doors
- Compact 80 × 37.3 × 23.3 mm body installs under door frame
Specifications
No published specifications for this item yet.
Questions about this item
Will the 80 mm long magnet and 74 mm armature plate fit the 90 degree swinging wooden door I already have?

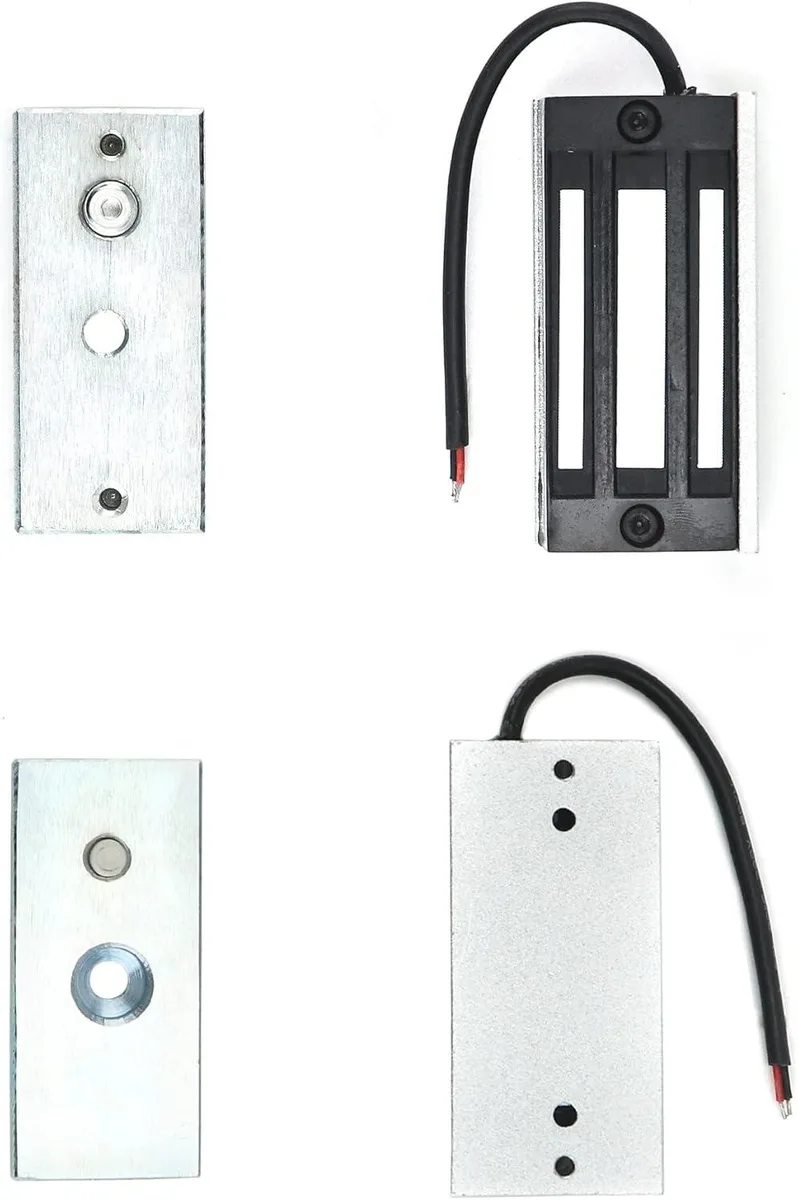

The magnet measures 80 mm by 37.3 mm by 23.3 mm and the armature plate is 74 mm by 32 mm by 11 mm, designed for 90 degree swinging wooden, glass, metal or fire doors.
How can I confirm the lock is holding with its rated 60 kg force after I wire it to 12 V?
Apply 12 V DC and measure current between 0.11 A and 0.15 A; the built-in voltage spike suppressor activates and the magnet holds the armature plate with 60 kg (130 lbs) force when energised.
Does the two-pack include mounting brackets and screws, or must I buy them separately?

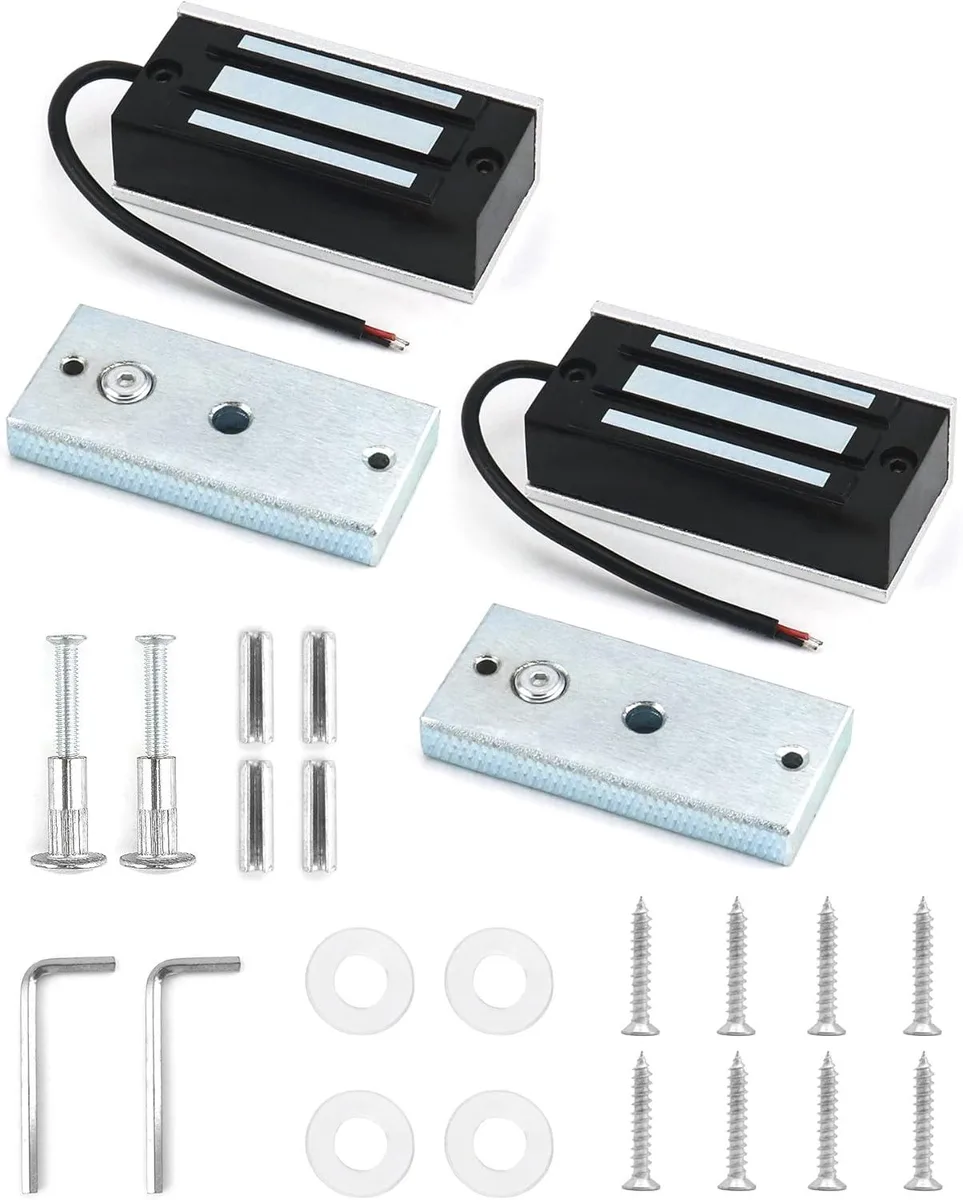

The kit contains two complete lock bodies, two armature plates and the fixings needed for surface mounting under the door frame; no extra brackets are required.
