Open-frame 18U wall-mount rack, 24in deep, black powder-coated steel, swing gate

BFKK

BFKK 18U Wall Mount Server Rack 24in Depth 16in Mounting Holes Swing Gate

SKU CH-816S-EK4M6

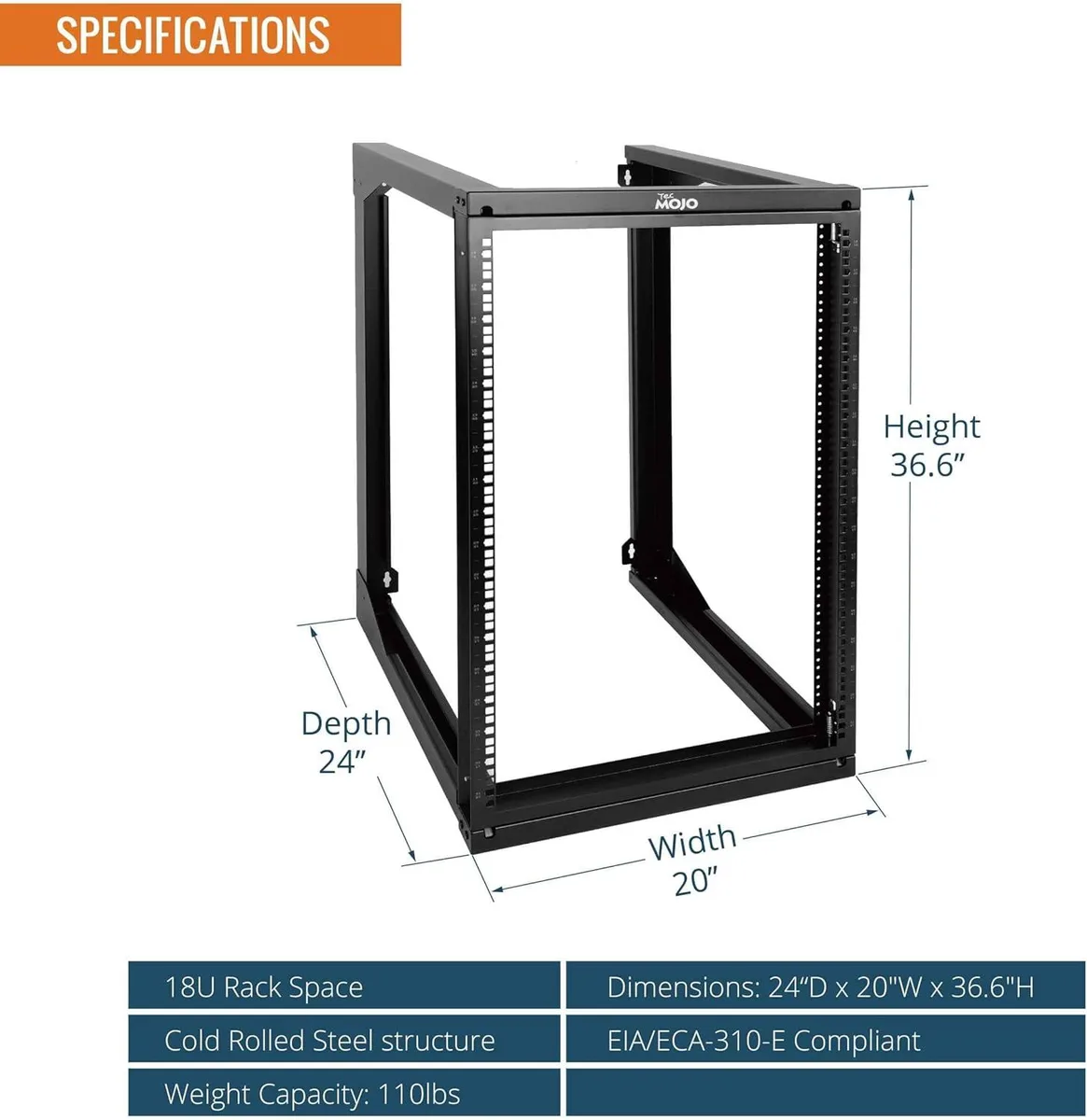

Holds 19-inch IT gear in an 18U open frame with 24-inch depth, 16-inch mounting holes, a 180-degree swing gate and 50 kg static load rating

Size 18U

  • 18U capacity fits 19-inch servers and AV gear
  • 24-inch depth and 16-inch mounting holes suit standard stud spacing
  • Cold-rolled steel frame rated 110 lb static and 55 lb sliding load
  • 180-degree swing gate opens both sides for rear cable access
  • EIA-310-E compliant with square and tapped hole options

18U wall-mount rack for 19-inch gear

This 18U open-frame rack holds standard 19-inch servers, network switches and AV equipment. The 24-inch depth accommodates deeper chassis while the 16-inch mounting-hole spacing matches common stud centres. It suits installers who need a compact, wall-fixed enclosure for data or media rooms.

Cold-rolled steel frame with swing gate

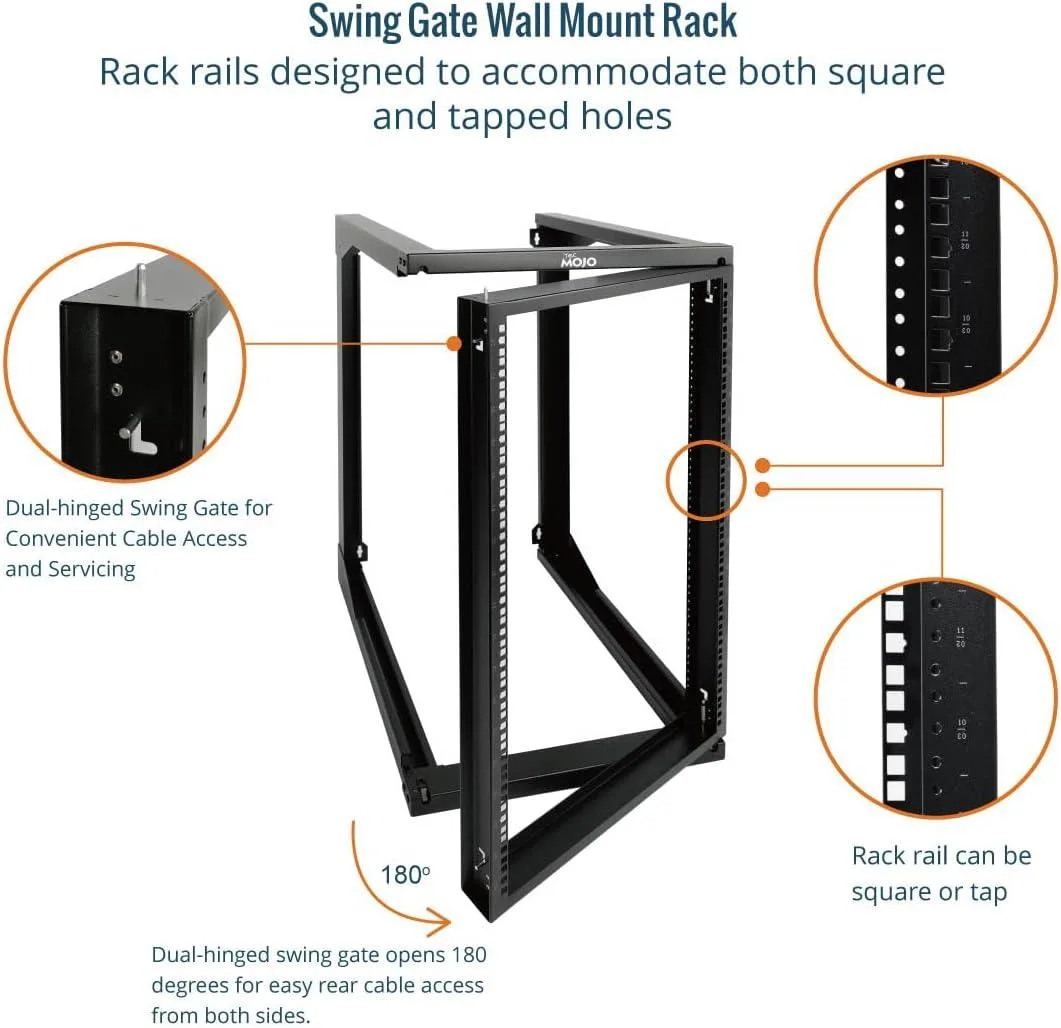

The rack is built from cold-rolled steel with an electrostatic powder coat that resists rust and corrosion. A 180-degree swing gate provides rear cable access from either side, simplifying routine wiring changes. Static load capacity is 110 lbs and sliding load is 55 lbs.

Replaces floor-standing cabinets in tight spaces

Use this rack when floor space is unavailable but 19-inch equipment must be secured to a wall. The jump from a shelf or makeshift bracket is worth it when you need EIA-310-E compliant square or tapped holes, included drilling template and a lockable swing gate for physical security.

Highlights

  • 18U capacity fits 19-inch servers and AV gear
  • 24-inch depth and 16-inch mounting holes suit standard stud spacing
  • Cold-rolled steel frame rated 110 lb static and 55 lb sliding load
  • 180-degree swing gate opens both sides for rear cable access
  • EIA-310-E compliant with square and tapped hole options

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What EIA standard does the 18U rack follow and what equipment width does it support?

The rack complies with EIA/ECA-310-E and accepts 19-inch equipment.

How far apart are the wall mounting holes and what is the overall depth?

The mounting holes are 16 inches apart and the rack depth is 24 inches.

How do you install the rack on the wall and what step is often missed?

Use the supplied drilling template to mark and drill the 16-inch spaced holes, then secure the rack with appropriate wall anchors; the step often missed is using the template to ensure correct hole spacing.
