Open-frame 15U wall-mount server rack, 24-inch depth, black powder-coated steel, swing gate

BFKK

BFKK 15U Wall Mount Server Rack 24" Depth 16" Mounting Holes Swing Gate

SKU CH-FXSH-1HX2R

A 15U open-frame wall rack with 24-inch depth, 16-inch mounting holes and a 180-degree swing gate for rear access to 19-inch equipment

Size 15U

  • 15U capacity fits 19-inch servers and AV gear
  • 24-inch depth with 16-inch mounting-hole spacing
  • 110 lb static and 55 lb sliding load ratings
  • 180-degree swing gate gives rear access from both sides
  • EIA/ECA-310-E compliant with square and tapped hole options

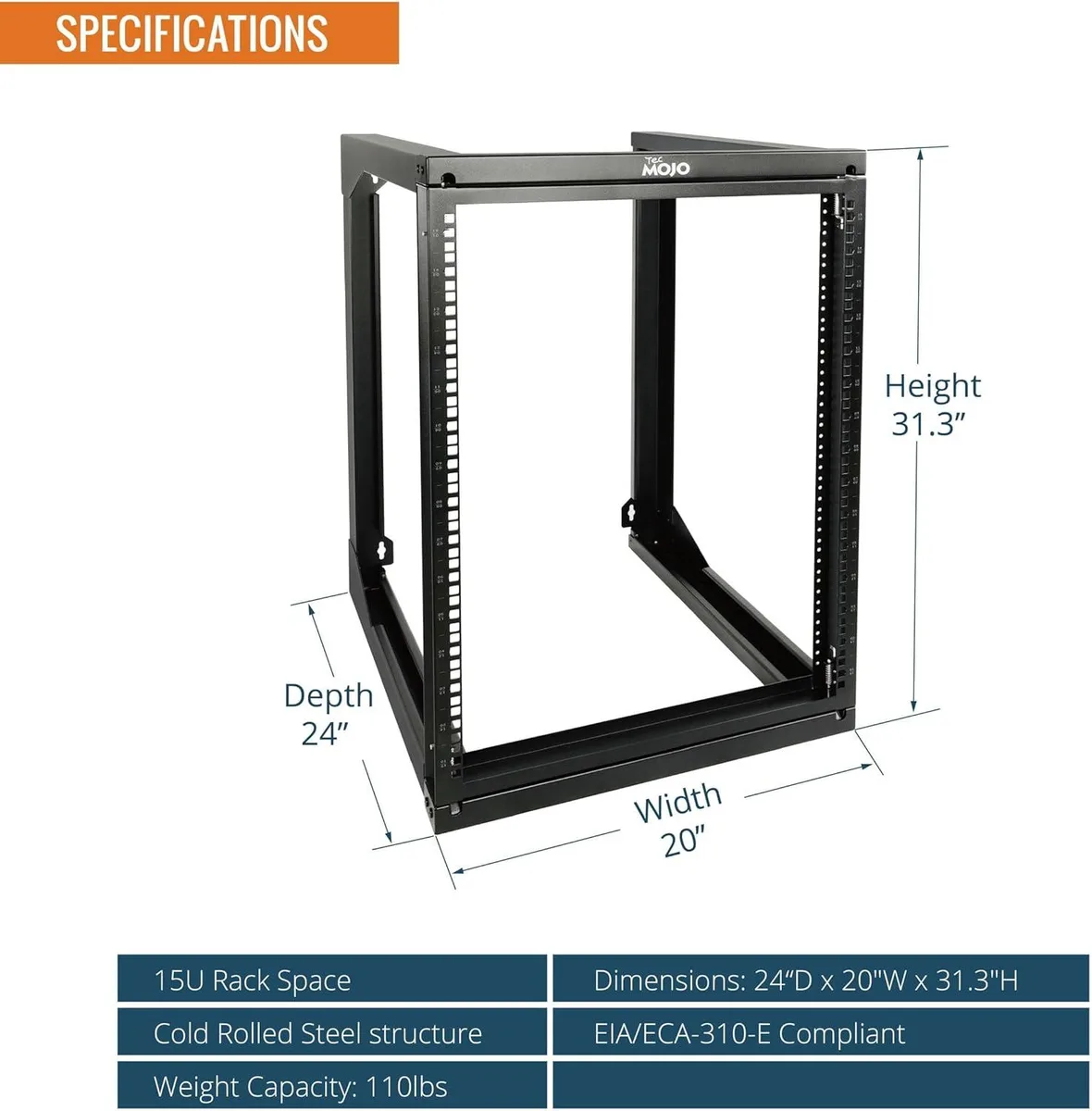

15U wall-mount rack for 19" gear

This 15U open-frame rack holds 19-inch network, AV or IT equipment in a 24-inch deep cabinet. The frame mounts to studs spaced 16 inches apart and complies with EIA/ECA-310-E spacing. It is aimed at installers who need a compact, accessible enclosure for patch panels, switches or audio gear.

Cold-rolled steel frame rated for continuous load

The rack is built from cold-rolled steel with an electrostatic powder coat that resists rust and corrosion. Static load capacity is 110 lbs and sliding load is 55 lbs, so the structure supports fully populated patch panels and switches day after day without deflection. The open frame promotes passive airflow through the equipment.

180-degree swing gate and dual hole pattern

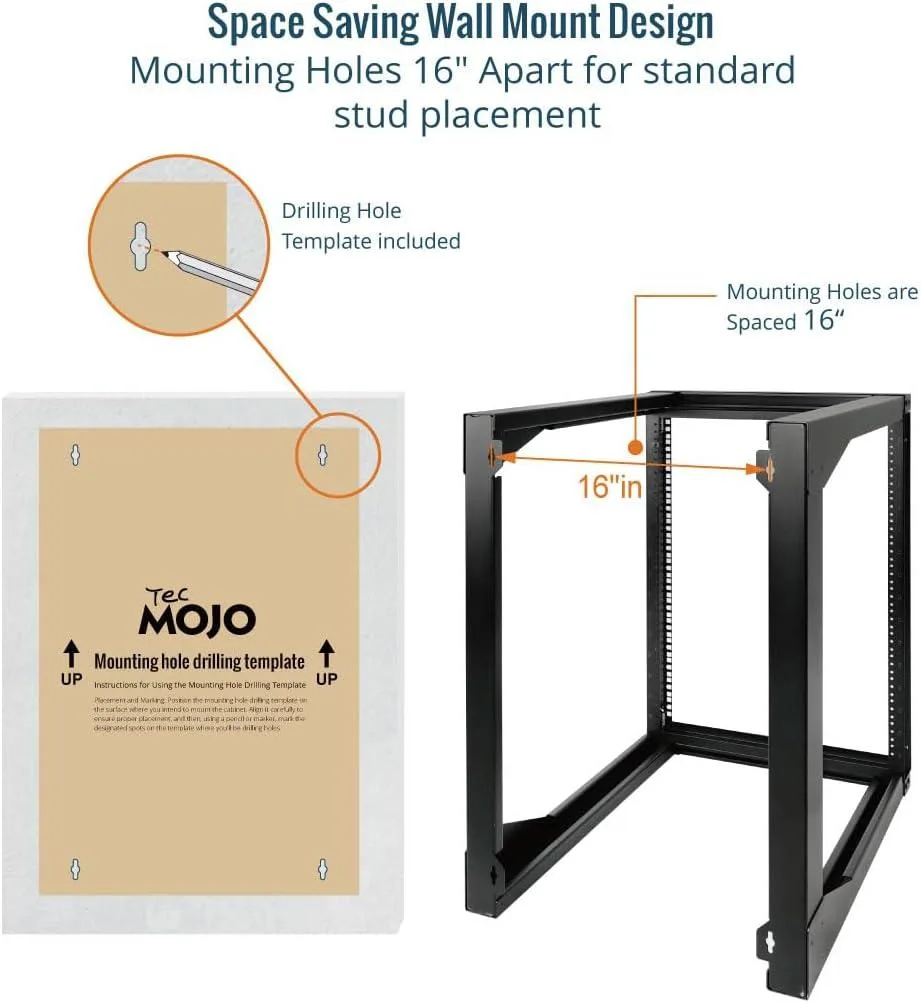

A swing gate opens 180 degrees, giving rear cable access from both sides for routine moves, adds and changes. Mounting rails accept both square and tapped holes, which can be swapped to match different hardware. The package includes a drilling template, hardware and video guidance for a straightforward stud-mounted installation.

Highlights

  • 15U capacity fits 19-inch servers and AV gear
  • 24-inch depth with 16-inch mounting-hole spacing
  • 110 lb static and 55 lb sliding load ratings
  • 180-degree swing gate gives rear access from both sides
  • EIA/ECA-310-E compliant with square and tapped hole options

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the open-frame design of this 15U rack help with heat dissipation when equipment runs all day?

Yes, the open-frame structure allows free airflow around 19-inch devices, so heat escapes without fans or ducts.

What wall material and fasteners are needed to mount this 24-inch deep rack with 16-inch hole spacing?

You must supply lag bolts or anchors rated for at least 110 lbs static load into studs or concrete; the kit includes a drilling template but no wall hardware.

Will my older 19-inch patch panels and switches fit the square and tapped holes on this EIA-310 compliant rack?

Both square and tapped holes follow the 19-inch EIA-310-E standard, so legacy 19-inch gear mounts directly without adapters.
