Bessey Tools 1800-S24 24 in bar clamp

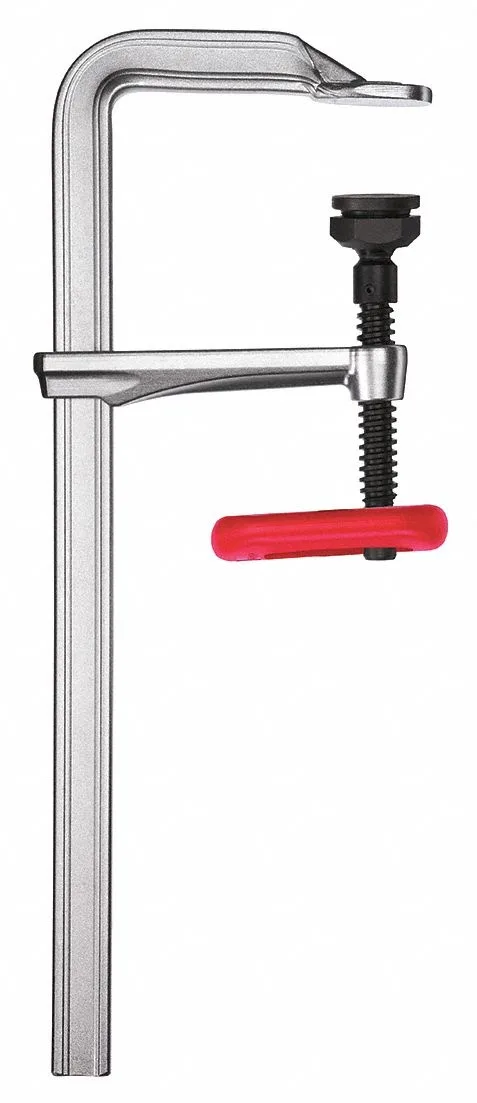

Bessey 1800-S24 24-Inch Bar Clamp

This medium-duty F-style bar clamp provides a 24-inch maximum jaw opening and a 4-3/4-inch throat depth for reaching across wide workpieces. The cold-drawn alloy steel rail measures 1-3/32 by 7/16 inches and delivers a nominal clamping pressure of 1,980 pounds. A 3/4-inch diameter spindle with a removable swivel Morpad tilts up to 35 degrees to accommodate angled surfaces. The ergonomic plastic handle ensures comfortable torque application during extended use.

Upgrading From Light-Duty Clamps

Switch to this model when spring clamps or small C-clamps cannot span the required distance or generate enough force for glue-ups and assembly. The 24-inch capacity and 1,980-pound load rating handle larger panels, frames and furniture components that exceed the reach of compact clamps. It replaces the need for multiple smaller clamps on wide jobs, reducing setup time and improving joint alignment across the full width.

Verify Rail Clearance And Workpiece Thickness

Confirm that the 1-3/32-inch rail thickness and 7/16-inch width fit between your workpiece and any obstructions such as bench dogs or vise jaws. The 4-3/4-inch throat depth limits how far the clamp can reach from the edge, so measure your part dimensions accordingly. Ensure the 3/4-inch spindle and 1-1/2-inch swivel pad clear the work surface without interference. The clamp weighs 5.85 pounds, so consider handling comfort for repetitive positioning.
