Banner

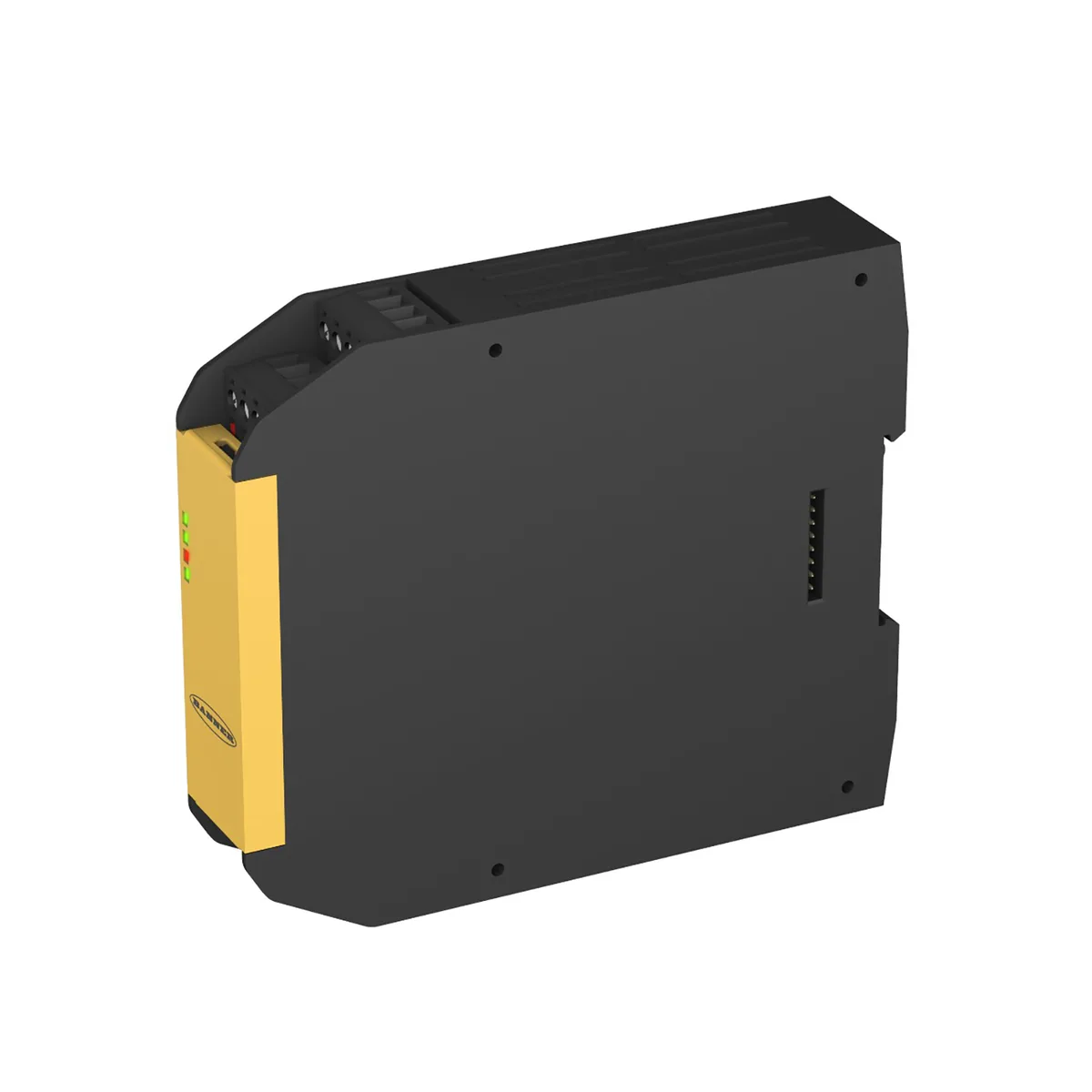

Banner XS2RO Safety Controller Expansion Module 4 NO 6A 2 NC 2.5A
A safety-controller expansion module adding four 6 A normally-open and two 2.5 A normally-closed relay outputs, IP20 rated for use with XS26-2 controllers
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Expands safety systems with dual relay output module
- Delivers 4 NO safe outputs rated 6 A and 2 NC auxiliary outputs rated 2.5 A
- Achieves PL e, Category 4 and SIL 3 for high-integrity applications
- Operates up to 55 °C and 90 % humidity with 40 million-cycle mechanical life
- Mounts in 110 x 22.5 x 129 mm footprint with removable screw terminals
Safety Controller Expansion Module
The Banner XS2RO is a dual relay output expansion module designed for integration with XS26-2 safety controllers. It provides additional safety-rated outputs for industrial machine guarding applications. This new module suits engineers building or extending safety circuits that require monitored relay contacts. It is not suited for applications needing direct sensor inputs such as light curtains or gate switches.
Output Configuration and Ratings
The module delivers four normally open safety outputs rated at 6 A and two normally closed auxiliary outputs rated at 2.5 A. These contacts are arranged as two independently controlled sets of two NO contacts each. Screw terminals with removable blocks simplify wiring and maintenance. The output rating is the decisive specification for matching load requirements.
Capacity and Operational Limits
Mechanical life reaches 40 million operations while electrical life reaches 50,000 cycles at full resistive load. The unit operates up to 55 °C with 90 % relative humidity at 50 °C and carries an IP20 rating. It meets PL e, Category 4 and SIL 3 with a PFHd of 7.6 x 10-10. It does not support Ethernet/IP, Modbus or common Ethernet protocols for networked diagnostics.
Highlights
- Expands safety systems with dual relay output module
- Delivers 4 NO safe outputs rated 6 A and 2 NC auxiliary outputs rated 2.5 A
- Achieves PL e, Category 4 and SIL 3 for high-integrity applications
- Operates up to 55 °C and 90 % humidity with 40 million-cycle mechanical life
- Mounts in 110 x 22.5 x 129 mm footprint with removable screw terminals
Specifications
| Brand | BANNER |
|---|---|
| Model | XS2RO |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
How many independently controlled safe outputs does the module provide in a machine?
The XS2RO delivers 2 independently controlled safe outputs, each configured as a set of 2 NO contacts rated at 6 A for safety functions.
What terminal standard does the expansion module use and what wiring does it accept?
The module uses screw-type removable terminals for all safety and auxiliary connections, allowing secure field wiring without soldering.
What are the exact dimensions needed to fit the unit inside an enclosure?
The housing measures 110 mm high, 22.5 mm wide and 129 mm deep, so the enclosure must provide at least that clearance for the module.
