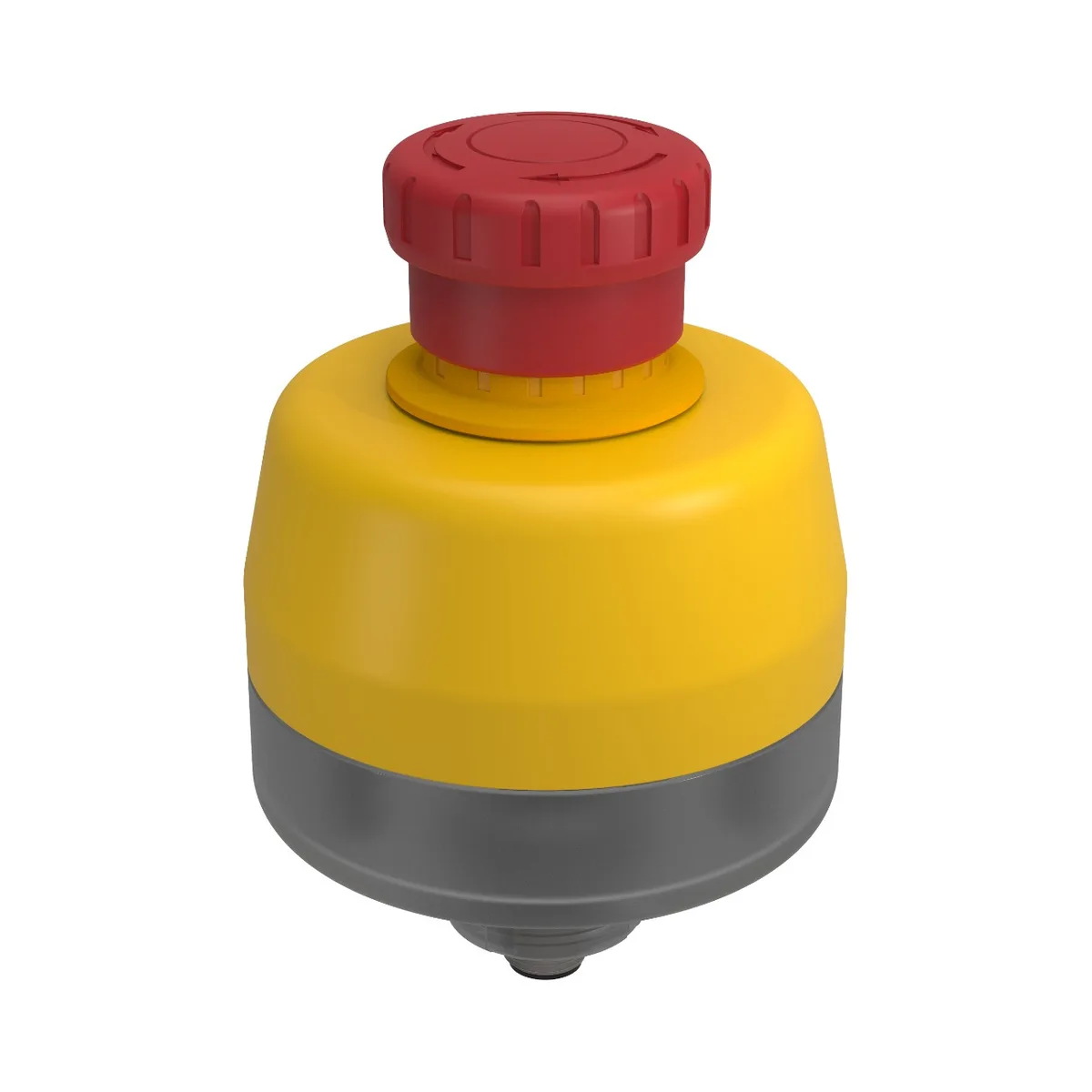

Red 30 mm emergency stop button with 40 mm twist-pull actuator illuminated base M12 connector IP65

Banner

Banner SSA-EB1PL-02ECQ5B 30 mm Emergency Stop Button electrician tool

SKU CH-JKG6-6X6KX MPN SSA-EB1PL-02ECQ5B

A 30 mm mount emergency stop push button with a red illuminated 40 mm actuator, two normally closed contacts rated at 2 A and 24 V dc, M12 5-pin quick-disconnect, IP65 protection.

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Twist/pull-to-release action stops machinery fast
  • Illuminated red actuator shows status at a glance
  • IP65 rating resists dust and water jets
  • Two NC contacts rated 2 A at 24 V dc
  • M12 5-pin quick-disconnect simplifies wiring

30 mm Emergency Stop Button

The Banner SSA-EB1PL-02ECQ5B is a 30 mm mount emergency stop push button designed for safety-critical circuits. It features a red 40 mm twist/pull-to-release actuator with solid illumination for clear status indication. The polycarbonate housing provides IP65 protection for industrial environments. Two normally closed contacts rated at 2 A at 24 V dc handle the safety function.

M12 5-pin Quick-Disconnect

This unit replaces hard-wired emergency stop stations with an M12 5-pin quick-disconnect connection. The Safety BUS node compatibility assigns channel one to pins one and four and channel two to pins two and five. The jump is worth it when faster installation, easier replacement and reliable plug-and-play wiring are required on machine guarding systems.

Two Normally Closed Contacts

The dual normally closed contacts provide redundant safety monitoring for emergency stop circuits. They comfortably handle 2 A at 24 V dc loads within the specified temperature range of -25 °C to 55 °C. The device runs out of headroom above the contact rating or outside the IP65 environmental seal, requiring a different solution for higher current or harsher ingress conditions.

Highlights

  • Twist/pull-to-release action stops machinery fast
  • Illuminated red actuator shows status at a glance
  • IP65 rating resists dust and water jets
  • Two NC contacts rated 2 A at 24 V dc
  • M12 5-pin quick-disconnect simplifies wiring

Specifications

BrandBANNER
ModelSSA-EB1PL-02ECQ5B
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What panel cut-out does the 30 mm mounting thread require?

The button mounts in a standard 30 mm panel cut-out; the 40 mm actuator diameter covers the hole once installed.

How is the M12 5-pin quick-disconnect wired for the dual safety channels?

Channel 1 uses pins 1 and 4, Channel 2 uses pins 2 and 5; both contacts are normally closed and rated 2 A at 24 V dc.

When should the illuminated base or contacts be inspected or replaced?

Inspect the red illuminated base and 2 NC contacts at each maintenance interval; replace if the twist/pull release feels stiff or the IP65 seal shows wear.
