Red rectangular ultrasonic sensor with M12 connector

Banner

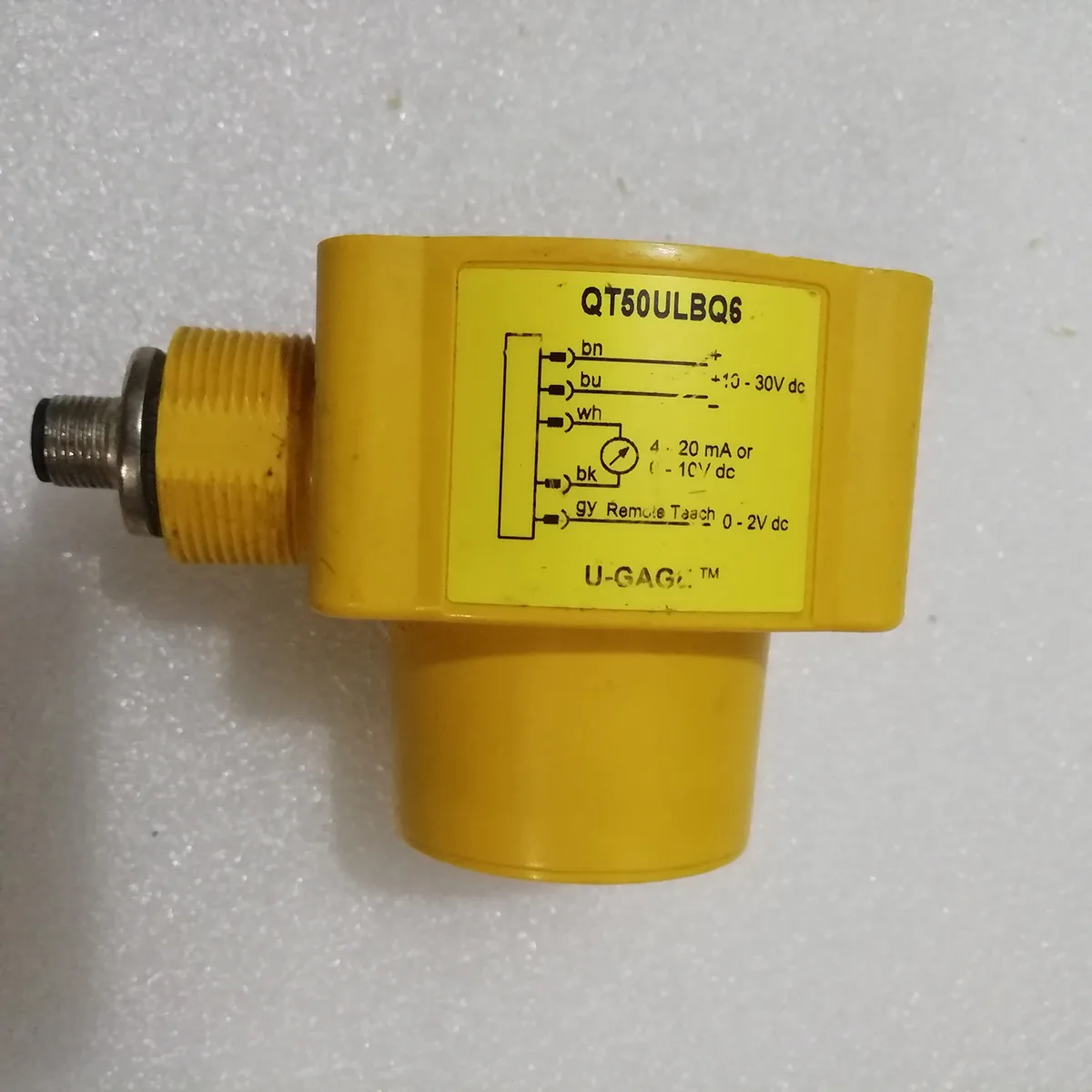

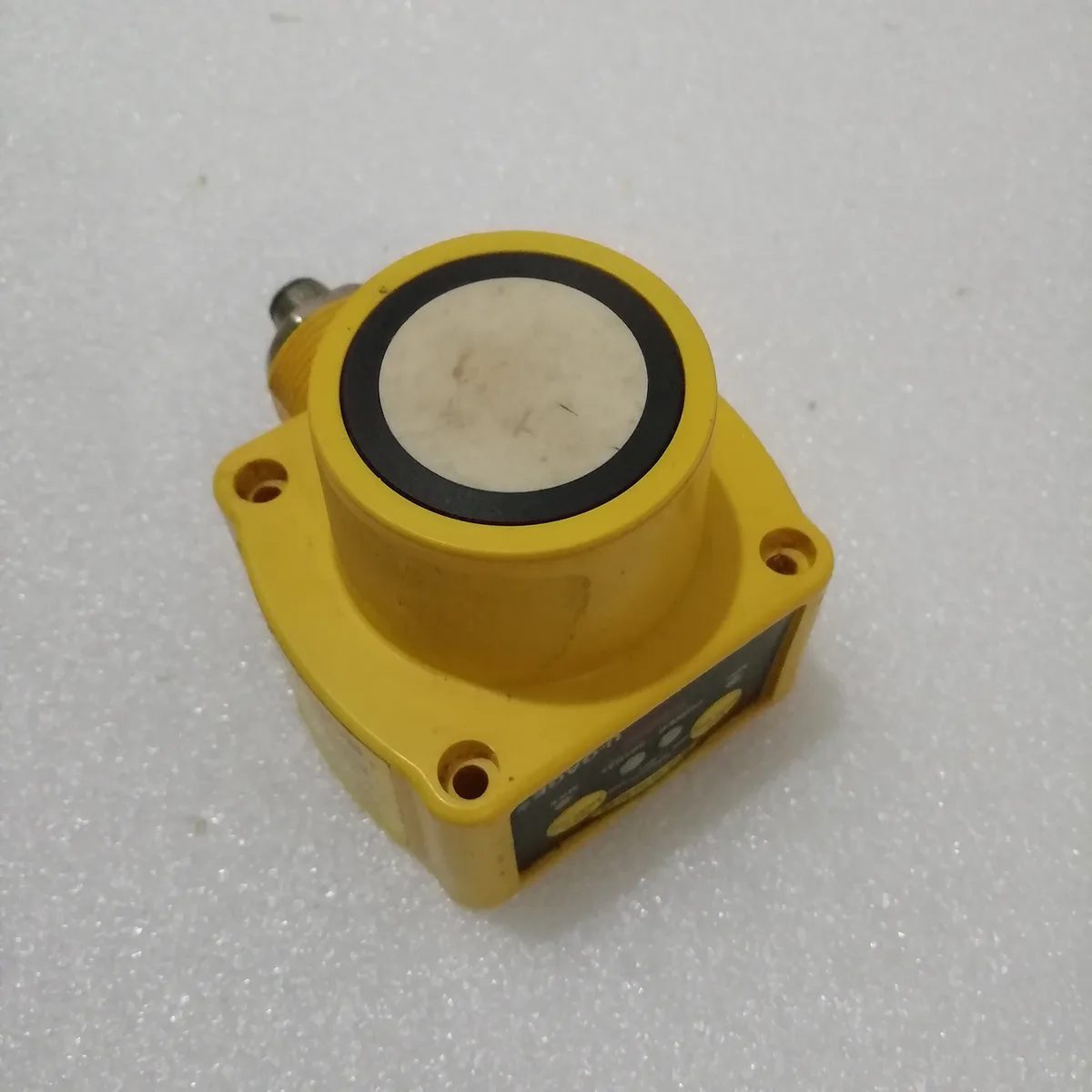

Banner QT50ULBQ6 8 m Range Ultrasonic Sensor

SKU CH-9CNC-8BPG1 MPN QT50ULBQ6

An 8 m range ultrasonic proximity sensor with analog 0-10 V or 4-20 mA output and M12 quick-disconnect

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 8 m sensing range covers long-distance detection needs
  • 200 mm minimum range enables close-proximity measurement
  • 0-10 V or 4-20 mA analog output integrates with control systems
  • M12 Euro quick-disconnect allows fast installation and replacement
  • Push-button adjustment simplifies sensor configuration in the field

8 m Ultrasonic Proximity Sensor

The Banner QT50ULBQ6 is an ultrasonic proximity sensor with a sensing range of 200 mm to 8 000 mm. It operates on a 13-30 V dc supply and provides an analog output configurable to 0-10 V or 4-20 mA. The rectangular PBT housing uses a 5-pin M12 Euro-style quick-disconnect for installation.

Industrial Automation Engineers

This sensor suits engineers monitoring tank levels, detecting large objects or measuring distance in harsh chemical environments where the PBT housing and IP rating provide durability. It is not for applications requiring a switching output instead of analog, installations needing a shorter minimum range than 200 mm, or setups that cannot accommodate the 1 500 ms power-up delay.

Analog Output Configuration

The single specification that decides fit is the analog output type: 0-10 V dc or 4-20 mA selectable. Your controller input card must match one of these signal types and meet the 500 ohm minimum load for voltage or the calculated impedance limit for current. If your system requires a different signal format, this sensor will not integrate without additional conversion hardware.

Highlights

  • 8 m sensing range covers long-distance detection needs
  • 200 mm minimum range enables close-proximity measurement
  • 0-10 V or 4-20 mA analog output integrates with control systems
  • M12 Euro quick-disconnect allows fast installation and replacement
  • Push-button adjustment simplifies sensor configuration in the field

Specifications

BrandBANNER
ModelQT50ULBQ6
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What power supply voltage must I already have available for the 13-30 V dc sensor?

The sensor operates from a 13-30 V dc supply, so you need a source within that range.

Will the M12 5-pin Euro quick-disconnect mate with my existing M12 cables?

Yes, the integral M12 (Euro) 5-pin quick-disconnect fits standard M12 5-pin cables.

How can I verify the analog output is tracking distance correctly after wiring?

Measure the output: 0-10 V dc or 4-20 mA should scale linearly from 200 mm to 8000 mm target distance.
