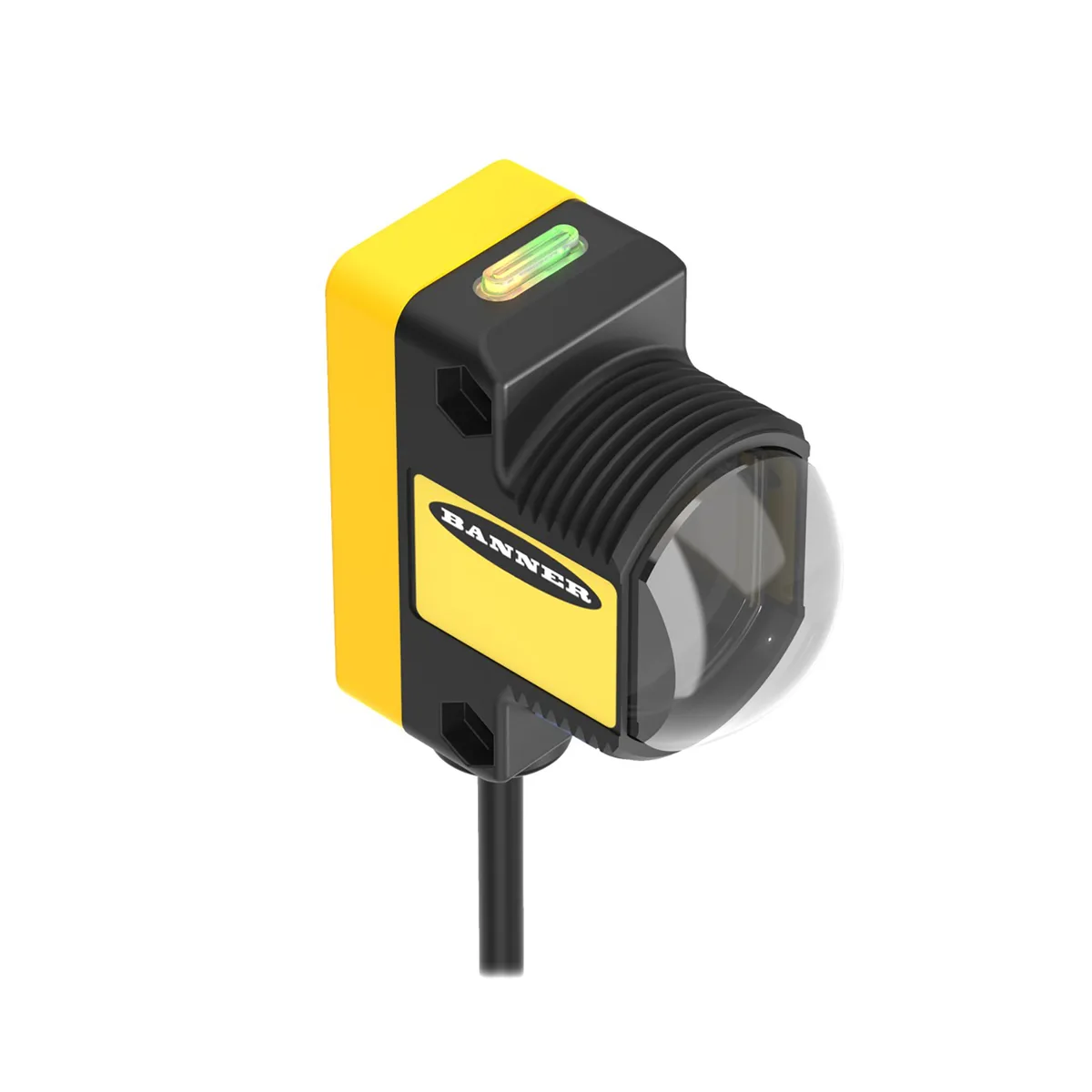

Rectangular red thermoplastic sensor with M30 mount, 2 m cable, IP67 rated

Banner

Banner QS30RRX 213 m Long-Range Sensor electrician tool

SKU CH-9Y6X-17Z8S MPN QS30RRX

A high-powered receiver detects objects up to 213 m away with a 2 m cable and 10-30 V dc supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 213 m sensing range for long-distance detection
  • 10–30 V dc supply fits common industrial power
  • IP67 and NEMA 6 ratings protect against dust and water
  • 5 ms response time with 5 000 µs repeatability
  • 2 m cable and M30 mount simplify installation

Industrial Long-Range Sensor for Automation Systems

The Banner QS30RRX is a WORLD-BEAM QS30 Series receiver built for opposed-mode sensing across 213 m. It operates on 10-30 V dc and delivers bipolar NPN and PNP outputs for direct integration into industrial control circuits. The thermoplastic housing meets IP67 and NEMA 6 ratings for harsh environments.

213 m Sensing Range with Infrared LED

The single specification that decides fit is the 213 m maximum sensing distance provided by the 875 nm infrared beam. This receiver requires a separate opposed-mode emitter to complete the sensing pair. A 5 ms response time and 5000 µs repeatability support high-speed detection on conveyors or packaging lines.

Low Power Draw with Wide Temperature Tolerance

The sensor draws power from a standard 10-30 V dc supply with a 100 ms power-up delay. It operates reliably from -20 °C to 70 °C at up to 95 % relative humidity. The 2 m cable carries discrete signals without a quick-disconnect, reducing connection points that can fail in wet or dusty conditions.

Highlights

  • 213 m sensing range for long-distance detection
  • 10–30 V dc supply fits common industrial power
  • IP67 and NEMA 6 ratings protect against dust and water
  • 5 ms response time with 5 000 µs repeatability
  • 2 m cable and M30 mount simplify installation

Specifications

BrandBANNER
ModelQS30RRX
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How far can the sensor reliably detect an object once it is installed in a machine?

The opposed-mode receiver achieves a maximum sensing distance of 213 m, or 213000 mm, when paired with a compatible emitter.

What does the 10-30 V dc supply range mean for wiring the sensor in practice?

It operates on any DC source between 10 and 30 volts, drawing power through the 2 m 5-pin cable with bipolar NPN and PNP outputs.

What mounting hardware and clearance does the M30 rectangular housing require?

The 30 mm barrel fits a standard M30 thread, the thermoplastic body measures rectangular with M30 mount, and the 2 m cable exits the housing for fixed installation.
