Banner QS30FF600 600 mm Fixed-Field Sensor 10-30 V dc Bipolar IP67
A 600 mm fixed-field proximity sensor with bipolar NPN/PNP output, 10-30 V dc supply, IP67 housing and 2 m cable
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Reliable detection up to 600 mm range
- Wide 10-30 V dc supply simplifies wiring
- IP67 and NEMA 6 ratings withstand harsh environments
- Fast 2 ms response captures rapid events
- 2 m cable with bipolar NPN/PNP outputs ready to install
Industrial fixed-field sensor for 600 mm detection

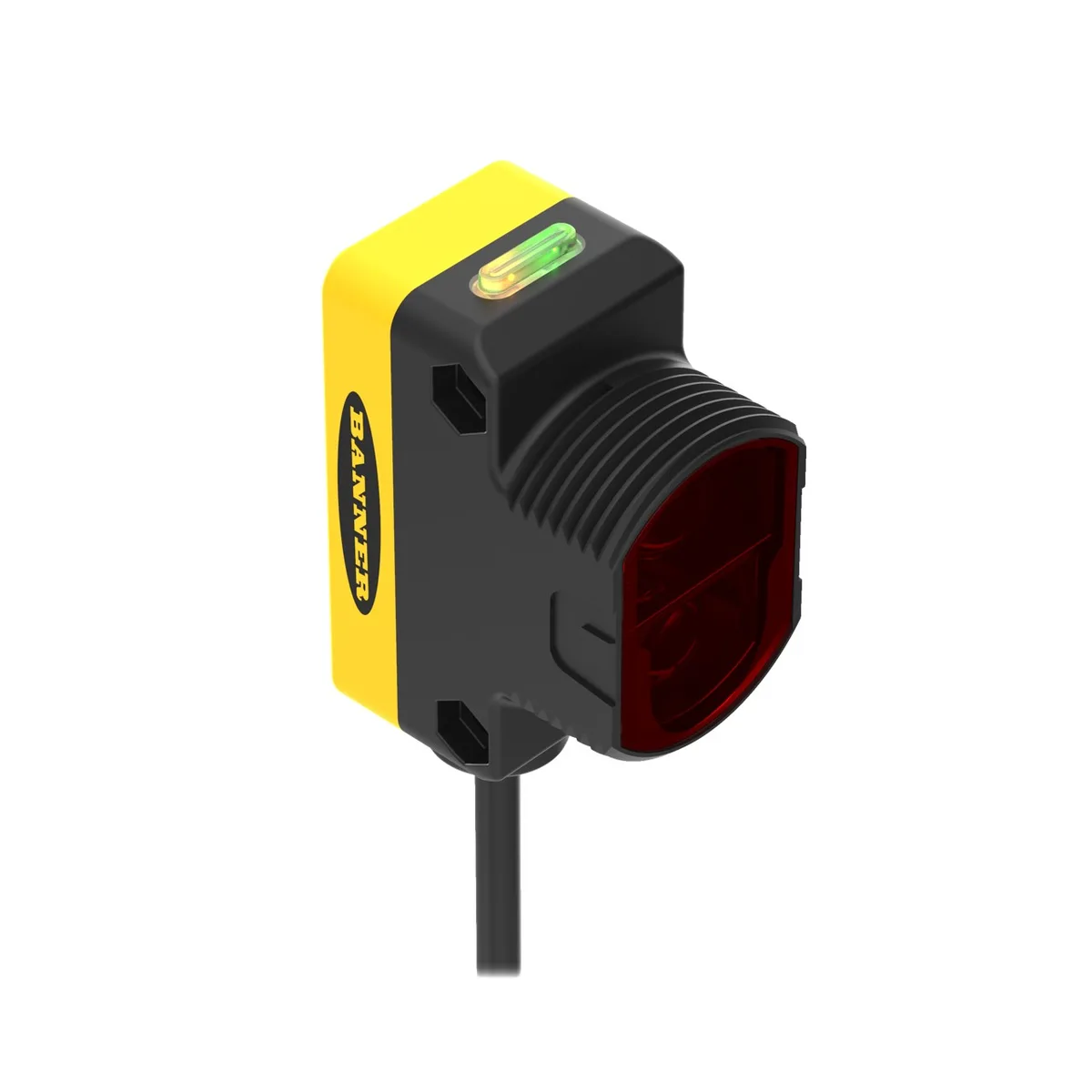

The Banner QS30FF600 is a rectangular proximity sensor with background suppression fixed at 600 mm. It operates on 10-30 V dc and provides bipolar outputs with one NPN and one PNP channel. The unit suits automation tasks that require a defined sensing window without background interference.
IP67 and NEMA 6 rating for harsh environments
The thermoplastic housing meets IP67 and NEMA 6 ingress protection, resisting dust and temporary immersion. Operating temperature spans -20 °C to 70 °C with up to 95 % relative humidity at 50 °C. A 2 m cable supplies power and signal, eliminating a separate quick-disconnect fitting.
Two millisecond response with 500 µs repeatability
Output response time is 2 ms and repeatability is 500 µs, supporting consistent detection on fast-moving lines. Power-up delay is 100 ms before the sensor is ready. The visible red LED beam at 680 nm aids alignment during setup and maintenance.
Highlights
- Reliable detection up to 600 mm range
- Wide 10-30 V dc supply simplifies wiring
- IP67 and NEMA 6 ratings withstand harsh environments
- Fast 2 ms response captures rapid events
- 2 m cable with bipolar NPN/PNP outputs ready to install
Specifications
| Brand | BANNER |
|---|---|
| Model | QS30FF600 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
How is the QS30FF600 mounted and what wiring step is often missed?
Mount the 30 mm barrel using M30 hardware and connect the 5-wire 2 m cable to 10-30 V dc; the step often missed is wiring both the NPN and PNP outputs for bipolar operation.
What maintenance will the sensor need over its service life?
Clean the acrylic lens periodically to maintain the 600 mm fixed-field range; the 100 ms power-up delay and 500 µs repeatability remain stable without calibration.
What is the first limit reached during continuous operation in a hot environment?
The 70 °C maximum operating temperature is the first limit; above this the sensor may exceed its 2 ms response time and IP67 seal integrity.
