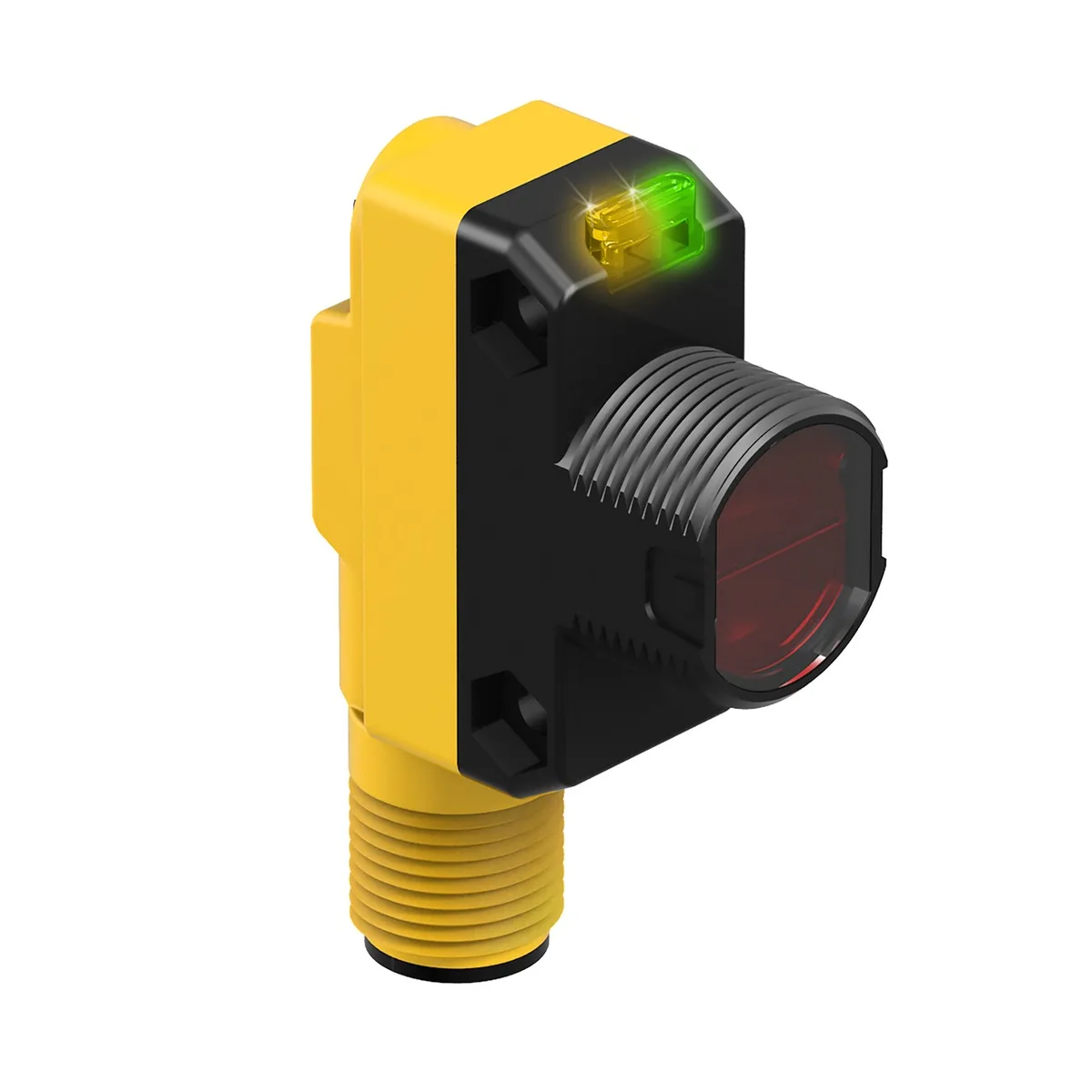

Banner QS18VP6LPQ8 Polarized Retroreflective Photoelectric Sensor 3.5m 10-30Vdc PNP M12 18mm IP67
A polarized retroreflective photoelectric sensor detecting objects up to 3.5 m with a 10-30 V dc PNP output, M12 connector, 18 mm housing and IP67 rating
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Polarized retroreflective sensing rejects false triggers from shiny surfaces
- 5 m sensing range covers medium-distance detection tasks
- 10-30 V dc supply fits standard industrial power rails
- M12 4-pin quick-disconnect enables fast wiring in the field
- IP67 and NEMA 6 ratings withstand wash-down and dusty environments
Polarized retroreflective sensor for 3.5 m range
This Banner QS18VP6LPQ8 photoelectric sensor detects objects up to 3.5 m away using a polarized retroreflective beam. It operates on 10–30 V dc and provides complementary PNP outputs. The housing is an 18 mm rectangular ABS body rated IP67 and NEMA 6 with an integral M12 quick-disconnect.
Installers needing visible red beam alignment
The visible red LED at 630 nm simplifies alignment during setup. Light/dark operate selection and a 0.6 ms response time suit general presence detection. Buyers who require background suppression, remote teach functionality or water detection should look at other sensing modes.
3.5 m sensing distance
The maximum sensing distance of 3.5 m is the key figure that determines whether this sensor reaches the target in your application. It covers a temperature range of –20 °C to 70 °C and 95 % humidity at 50 °C. Repeatability is 150 µs and power-up delay is 100 ms.
Highlights
- Polarized retroreflective sensing rejects false triggers from shiny surfaces
- 5 m sensing range covers medium-distance detection tasks
- 10-30 V dc supply fits standard industrial power rails
- M12 4-pin quick-disconnect enables fast wiring in the field
- IP67 and NEMA 6 ratings withstand wash-down and dusty environments
Specifications
| Brand | BANNER |
|---|---|
| Model | QS18VP6LPQ8 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What sensing range does the 630 nm polarised retroreflective beam actually reach?
The sensor detects targets up to 3.5 m (3500 mm) with its visible red 630 nm LED in polarised retroreflective mode.
What mounting clearance and thread does the 18 mm rectangular housing require?
An M18 threaded barrel fits a standard 18 mm cut-out; the rectangular body with integral M12 quick-disconnect needs space for the 4-pin Euro connector.
How do you set the light/dark operate switch and potentiometer without miswiring the 4-pin M12 plug?
Wire pins 1-4 for 10-30 V dc PNP complementary output, then adjust the potentiometer for gain and select light or dark operate via the housing switch before power-up.
