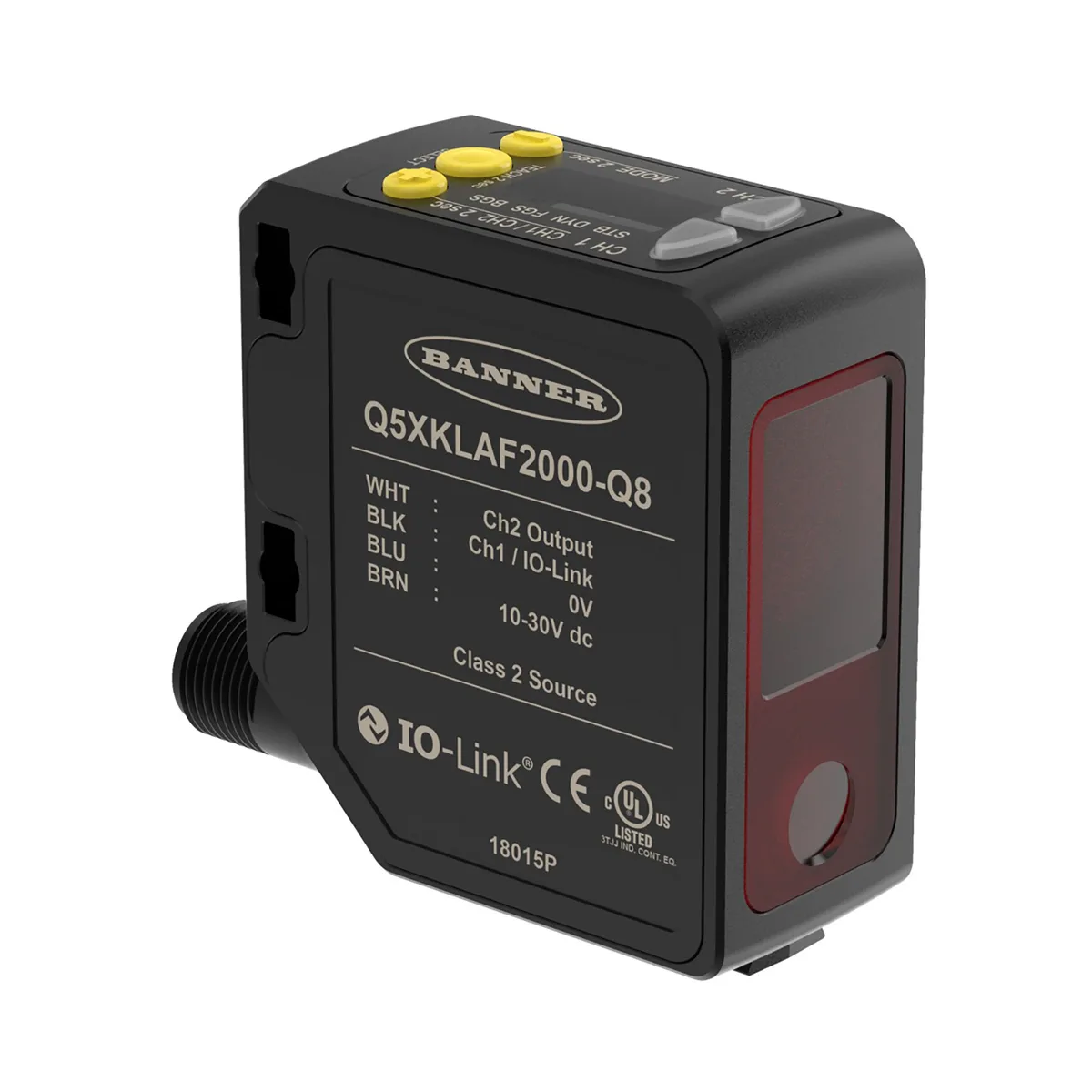

Red rectangular laser sensor with M12 connector and push-button adjustments

Banner

Banner Q5XKLAF2000-Q8-JAM 95-2000 mm laser sensor electrician tool

SKU CH-32W0-M3R8F MPN Q5XKLAF2000-Q8-JAM

High-power laser sensor detects objects from 95 to 2000 mm with IO-Link and jam detection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Accurate detection from 95 mm to 2000 mm range
  • Visible red Class 2 laser enables precise alignment
  • IO-Link and multi-function I/O simplify integration
  • MIL-STD vibration and shock ratings ensure durability

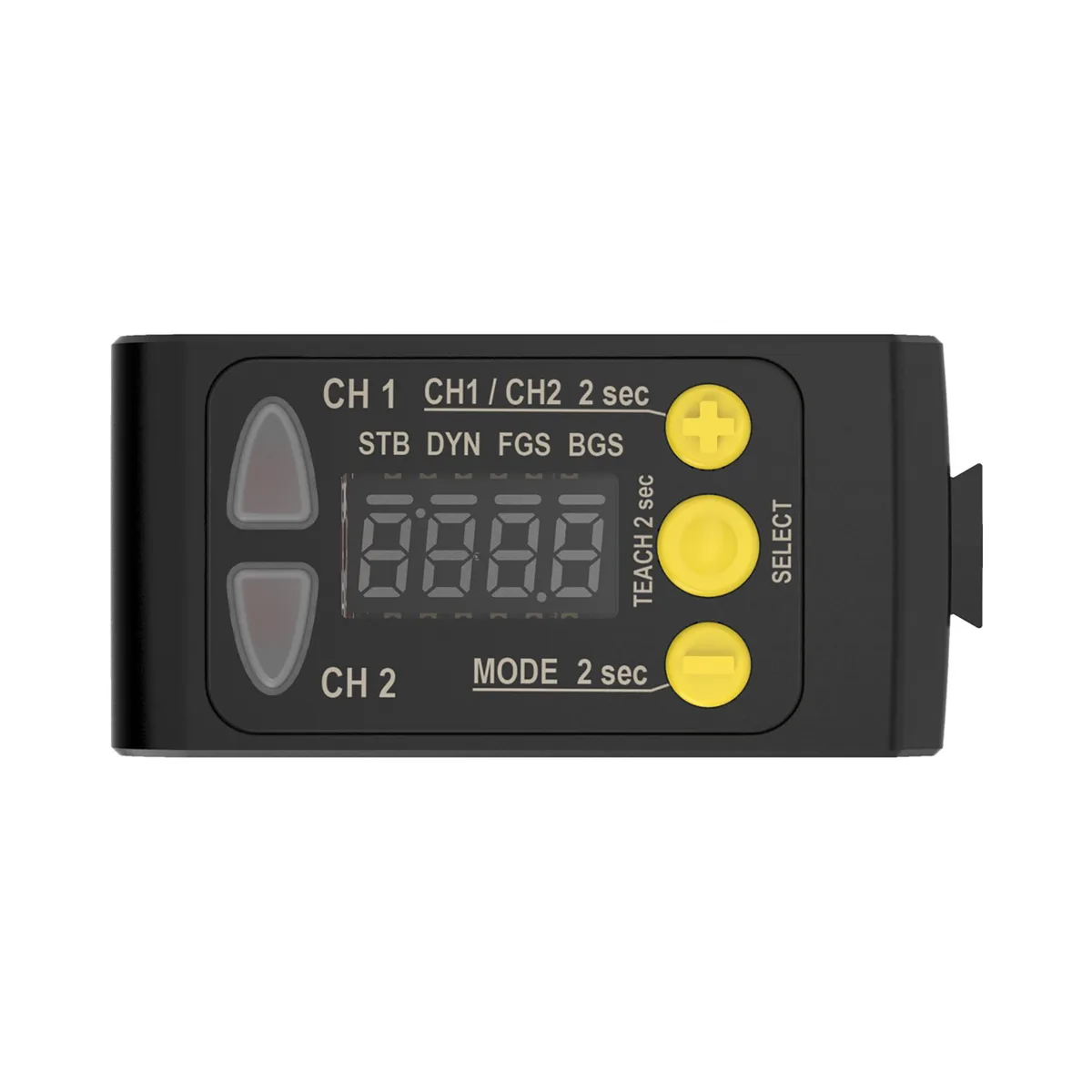

  • Push-button and remote teach allow fast setup

Q5X High-Power Laser Sensor

The Banner Q5XKLAF2000-Q8-JAM is a rectangular proximity sensor designed for electricians and automation engineers who need precise background and foreground suppression. It operates on a 10 to 30 V dc supply and detects targets from 95 to 2000 mm using a visible Class 2 red laser at 650 nm. The ABS housing carries an IP-rated M12 4-pin rotatable connector for flexible mounting.

Sustained-Load Detection Behaviour

Repeatability holds at ±0.5 mm from 95 to 300 mm, ±0.25% of range from 300 mm to 1000 mm, and ±0.5% from 1000 mm to 2000 mm. Temperature drift stays below ±0.5 mm/°C under 500 mm, ±1.0 mm/°C under 1000 mm, and ±2.0 mm/°C at the full 2000 mm span. The unit survives vibration per MIL-STD-202G Method 201A and 100 G mechanical shock per Method 213B Condition I.

Installation and Common Issues

Push-button and remote teach adjustments simplify setup, while the rotatable Euro-style quick-disconnect eases cable routing in tight panels. A 2500 ms power-up delay means the output is not immediate after energising. Wiring must match the PNP/NPN selection and IO-Link configuration; incorrect pin assignment on the 4-pin connector is the typical cause of communication faults.

Highlights

  • Accurate detection from 95 mm to 2000 mm range
  • Visible red Class 2 laser enables precise alignment
  • IO-Link and multi-function I/O simplify integration
  • MIL-STD vibration and shock ratings ensure durability
  • Push-button and remote teach allow fast setup

Specifications

BrandBANNER
ModelQ5XKLAF2000-Q8-JAM
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How much heat or power does the Q5X sensor draw when running continuously on a 24 V supply?

The sensor operates on 10-30 V dc with a 2500 ms power-up delay; no continuous current or heat dissipation figure is published.

Which cables or mounting hardware must I already have to connect the Euro M12 4-pin rotatable connector?

You need a compatible 4-pin M12 (Euro) cable assembly; the sensor ships without a mating cable or mounting brackets.

Will the Class 2 visible red laser at 650 nm work reliably beside older photoelectric sensors on the same line?

Yes, the 650 nm Class 2 beam and background/foreground suppression reduce cross-talk; vibration and shock meet MIL-STD-202G Method 201A and Method 213B Condition I.
