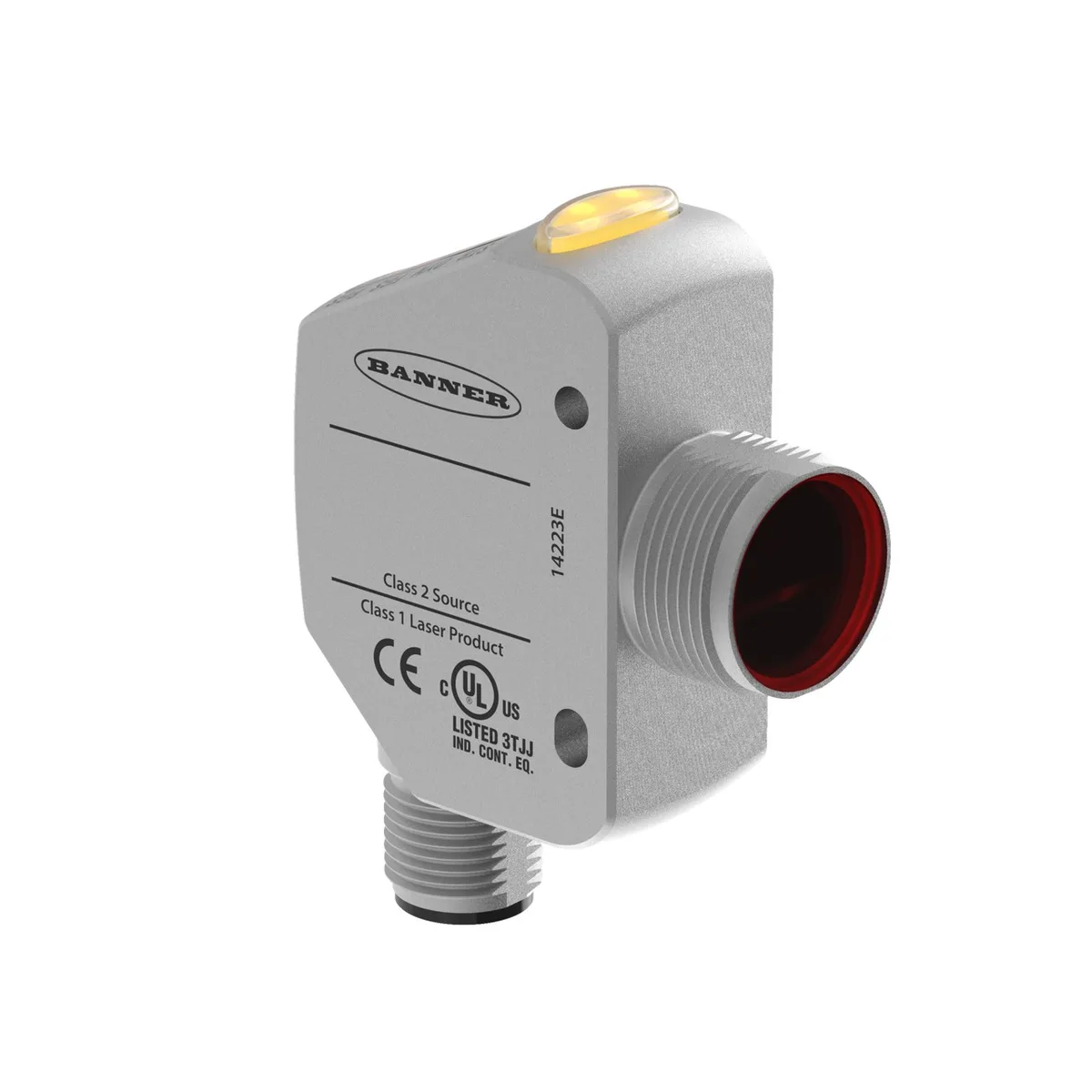

Banner Q4XTULAF500-Q8 Laser Distance Sensor 500 mm
A rugged laser distance sensor measuring 25 to 500 mm with a 0-10 V analog output and M12 connector
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Accurate measurement up to 500 mm with Class 1 visible red laser
- Analog 0–10 V output for direct integration with 12–30 V dc systems
- Rugged stainless-steel housing meets MIL-STD vibration and 100 G shock requirements
- Push-button and remote teach allow fast setup without a PC
- Repeatability better than .3 mm at close range and 1.7 mm at full range
Laser Distance Sensor 500 mm
The Banner Q4XTULAF500-Q8 is a rugged laser distance sensor built for industrial proximity detection. It measures targets from 25 mm to 500 mm using a visible red Class 1 laser and provides a 0-10 V dc analog output. The stainless-steel housing with M18 mounting suits harsh environments where reliable background and foreground suppression is required.
Thermals noise and power draw
The sensor operates on a 12-30 V dc supply with a 750 ms power-up delay. Temperature effect is specified as ±0.05 mm/°C from 25 to 125 mm, ±0.35 mm/°C at 300 mm and ±1 mm/°C at 500 mm. No acoustic noise is generated and the solid-state design has no moving parts to dissipate heat beyond normal electronic operation.
Bundled accessories and software impact
The unit ships with an integral M12 5-pin Euro quick-disconnect connector for direct wiring without separate cables. Adjustments are made via push-button or remote teach; no PC configuration software is included or required. The sensor meets MIL-STD-202G vibration (Method 201A) and mechanical shock (Method 213B, Condition I) standards for durability.
Highlights
- Accurate measurement up to 500 mm with Class 1 visible red laser
- Analog 0–10 V output for direct integration with 12–30 V dc systems
- Rugged stainless-steel housing meets MIL-STD vibration and 100 G shock requirements
- Push-button and remote teach allow fast setup without a PC
- Repeatability better than .3 mm at close range and 1.7 mm at full range
Specifications
| Brand | BANNER |
|---|---|
| Model | Q4XTULAF500-Q8 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
How do I mount and wire the rectangular stainless-steel housing with its M18 thread and 5-pin Euro M12 connector?
Secure the sensor using the M18 mounting thread on the rectangular stainless-steel housing, then plug the integral 5-pin Euro M12 quick-disconnect into a matching cordset; power must be 12-30 V dc and the sensor needs a 750 ms delay at power-up before it delivers a stable 0-10 V analog output.
What ongoing checks or component replacements will this laser distance sensor require over time?
The Class 1 visible red laser (655 nm) and solid-state electronics have no user-serviceable parts; periodic verification consists of confirming the analog output remains within the stated repeatability bands (<0.3 mm at 25-100 mm, <1 mm at 100-300 mm, <1.7 mm at 300-500 mm) and that the M12 connector seals stay intact.
At what distance does temperature drift become the dominant error source during continuous operation?
Temperature effect is specified as ±0.05 mm/°C from 25-125 mm, ±0.35 mm/°C at 300 mm, and ±1 mm/°C at 500 mm, so drift grows with range and reaches its maximum rate at the full 500 mm sensing distance.
