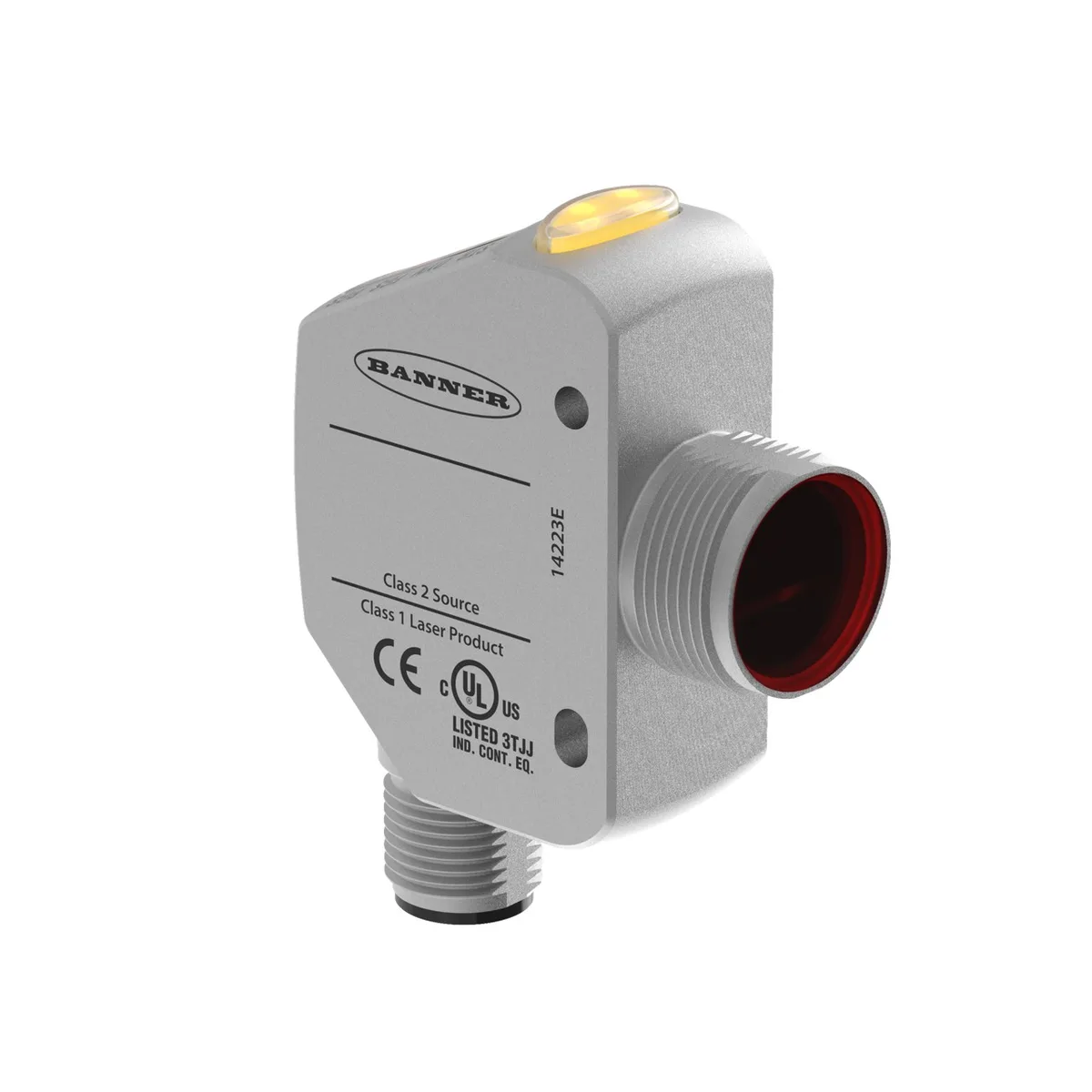

Red rectangular laser distance sensor with M18 mount and M12 connector

Banner

Banner Q4XTILAF500-Q8 Rugged Laser Distance Sensor 500 mm

SKU CH-NACG-XZN81 MPN Q4XTILAF500-Q8

Measures distance up to 500 mm with a visible red Class 1 laser, analog 4-20 mA output, stainless steel housing and M12 connector

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise measurement from 25 mm to 500 mm range
  • Analog 4-20 mA output for direct control integration
  • Class 1 visible red laser at 655 nm wavelength
  • Stainless steel housing withstands 100G shock and 10G vibration
  • Push-button and remote teach for fast setup

Rugged Laser Distance Sensor

The Banner Q4XTILAF500-Q8 is a Class 1 visible red laser sensor built for industrial proximity detection. Its stainless-steel rectangular housing with M18 mount suits automation engineers who need reliable background and foreground suppression in harsh environments.

Upgrade from basic photoelectric sensors

This sensor replaces simpler diffuse or retro-reflective units when precise analog distance data is required across a 25 mm to 500 mm range. The jump is worth it for applications demanding 4-20 mA output with repeatability under 0.3 mm at close range and under 1.7 mm at the maximum 500 mm distance.

Practical limits of the 12-30 V dc analog interface

The 4-20 mA output provides continuous distance data but requires a compatible analog input module and a 750 ms power-up delay before valid readings. Temperature drift varies from ±0.05 mm/°C at short range to ±1 mm/°C at 500 mm, and the M12 Euro connector limits cabling to 5-pin configurations.

Highlights

  • Precise measurement from 25 mm to 500 mm range
  • Analog 4-20 mA output for direct control integration
  • Class 1 visible red laser at 655 nm wavelength
  • Stainless steel housing withstands 100G shock and 10G vibration
  • Push-button and remote teach for fast setup

Specifications

BrandBANNER
ModelQ4XTILAF500-Q8
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What mounting style does the rectangular housing use?

The housing uses an M18 threaded mount for panel or bracket installation.

How is the sensing range set on this sensor?

The sensing field is adjusted using the push button on the device or via the remote teach input.

What is the repeatability at the maximum 500 mm range?

At 300 mm to 500 mm the analog repeatability is less than 1.7 mm.
