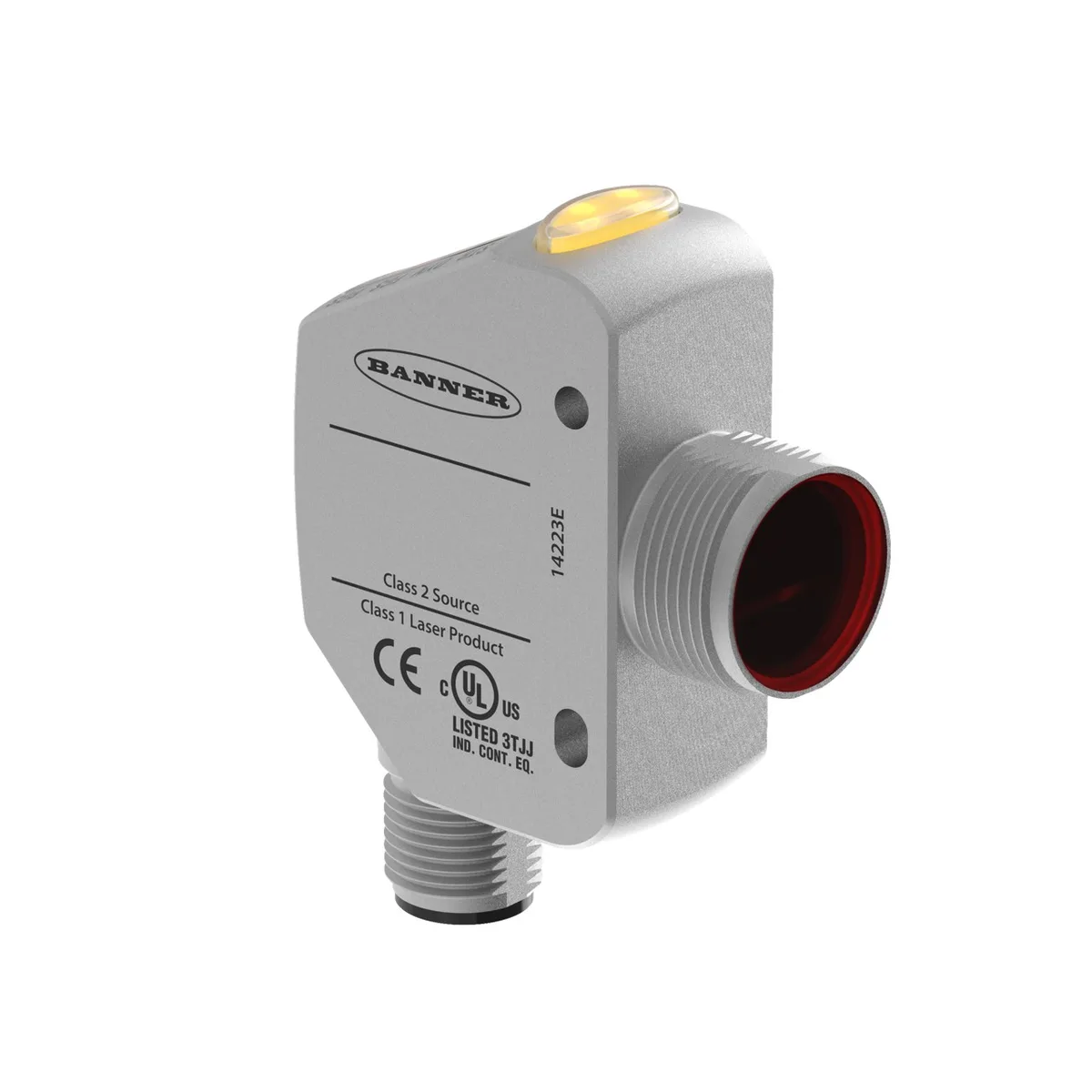

Rectangular red laser sensor with stainless housing and M12 connector

Banner

Banner Q4XTBLAF500-Q8 500 mm Laser Distance Sensor electrician tool

SKU CH-5E3X-7Q80E MPN Q4XTBLAF500-Q8

A rugged laser distance sensor with 500 mm range, stainless-steel housing and M12 connector for 10-30 V dc supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Accurate detection up to 500 mm with background suppression
  • Class 1 visible red laser ensures safe operation
  • Stainless steel housing withstands vibration per MIL-STD-202G Method 201A
  • Survives 100G mechanical shock per MIL-STD-202G Method 213B
  • Operates on 10-30 V dc with 750 ms power-up delay

Laser Distance Sensor

The Banner Q4XTBLAF500-Q8 is a rugged laser distance sensor built for industrial detection tasks. It measures from 25 mm to 500 mm using a visible red Class 1 laser at 655 nm. The stainless-steel housing carries an M18 mount and a 5-pin Euro M12 integral connector. Power input is 10-30 V dc with a 750 ms power-up delay.

Suits discrete presence detection

This sensor suits lines that need background and foreground suppression with bipolar NPN and PNP outputs. It is not for applications requiring analog distance output or PC-configurable parameters. Builders needing longer range than 500 mm or a different connector type should look elsewhere.

Integral connector and mounting

The integral M12 quick-disconnect removes the need for a separate cable assembly. Push-button and remote-teach adjustments let operators set the sensing field without opening the enclosure. The M18 mounting thread provides a standard mechanical interface for brackets or through-hole panels.

Highlights

  • Accurate detection up to 500 mm with background suppression
  • Class 1 visible red laser ensures safe operation
  • Stainless steel housing withstands vibration per MIL-STD-202G Method 201A
  • Survives 100G mechanical shock per MIL-STD-202G Method 213B
  • Operates on 10-30 V dc with 750 ms power-up delay

Specifications

BrandBANNER
ModelQ4XTBLAF500-Q8
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What power supply voltage range must I already have available for the Q4XTBLAF500-Q8?

The sensor operates from a 10-30 V dc supply, so your system must provide a voltage within that range.

Will the integral M12 5-pin Euro connector on this sensor mate with the M12 cables I already use on older equipment?

Yes, the integral M12 5-pin Euro quick-disconnect is a standard interface compatible with existing M12 5-pin cables.

How can I verify the sensor is measuring correctly after I mount it and apply power?

After the 750 ms power-up delay, the LED indicator display shows output status; you can also use the push-button or remote teach to confirm the sensing point at a known distance.
