Banner Q4XTBLAF300-Q8 Laser Sensor 300mm 10-30VDC electrician tool
A rugged laser sensor detects objects from 25 mm to 300 mm with a visible red beam and operates on 10-30 V dc
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Precise detection up to 300 mm with Class 1 visible red laser
- Wide 10-30 V dc supply suits industrial power systems
- Stainless steel housing meets MIL-STD vibration and shock standards
- Bipolar NPN/PNP outputs up to 100 mA for flexible wiring
- Push-button and remote teach enable quick setup without PC
Rugged Laser Distance Sensor

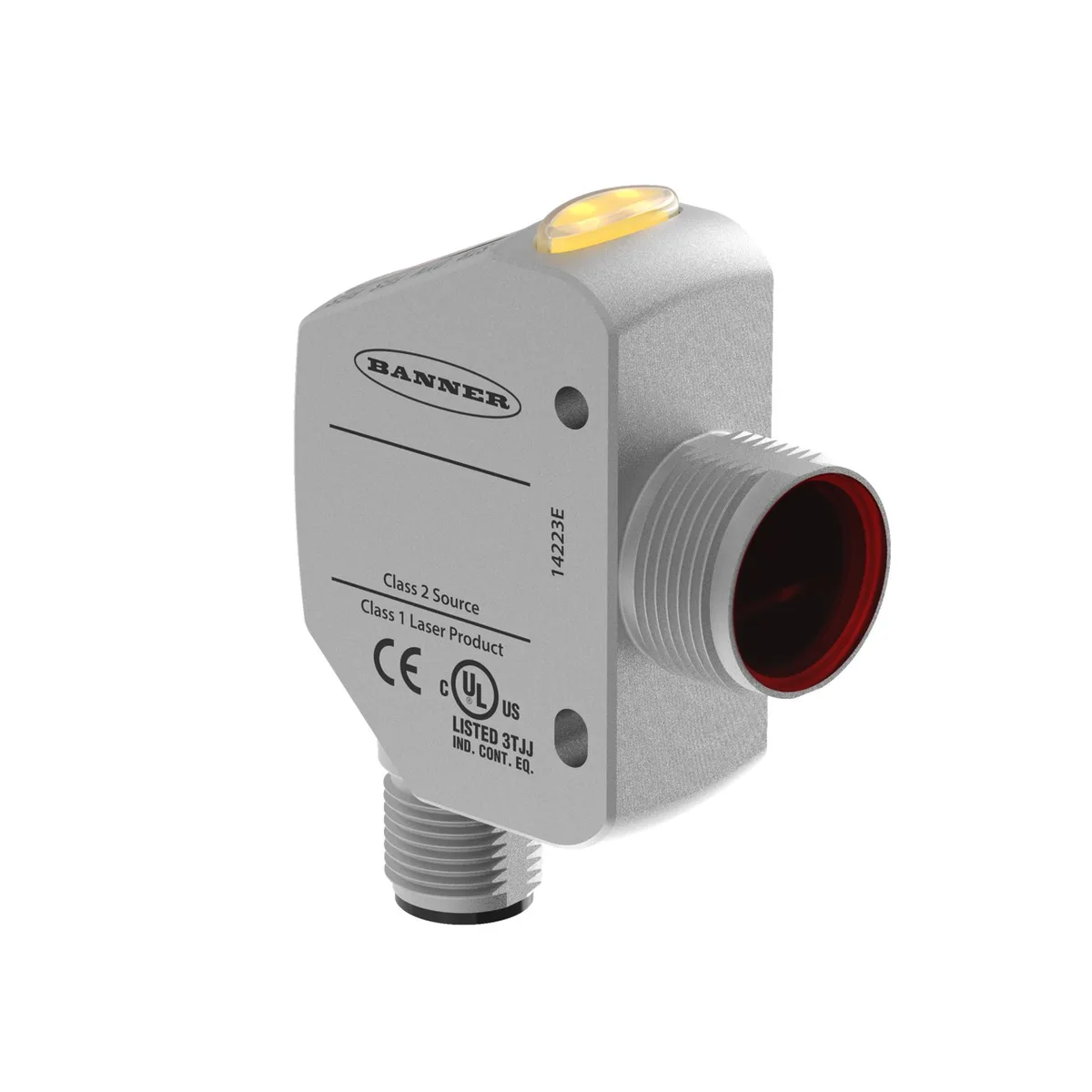

The Banner Q4XTBLAF300-Q8 is a stainless-steel proximity sensor with background and foreground suppression. It operates on 10-30 V dc and uses a visible red Class 1 laser at 655 nm. The rectangular housing includes an M18 mount and an integral M12 quick-disconnect with five pins. It is suited for industrial automation and machine-safety applications.
Sensing Range and Repeatability Limits
The sensor detects targets from 25 mm to 300 mm. Discrete repeatability is ±0.5 mm between 25 mm and 50 mm, and ±1% of range from 50 mm to 300 mm. Temperature effect is ±0.05 mm/°C up to 125 mm and ±0.35 mm/°C at 300 mm. A 750 ms power-up delay applies before the output is valid.
Bipolar Switched Output
The device provides both NPN and PNP discrete outputs rated at 100 mA maximum. NPN saturation voltage is below 1.0 V and PNP saturation voltage is below 1.5 V at full load. Adjustments are made by push button or remote teach. Buyers who need an analog output or a longer sensing distance cannot use this sensor.
Highlights
- Precise detection up to 300 mm with Class 1 visible red laser
- Wide 10-30 V dc supply suits industrial power systems
- Stainless steel housing meets MIL-STD vibration and shock standards
- Bipolar NPN/PNP outputs up to 100 mA for flexible wiring
- Push-button and remote teach enable quick setup without PC
Specifications
| Brand | BANNER |
|---|---|
| Model | Q4XTBLAF300-Q8 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
Should I choose the 300 mm range model or a shorter-range version?
This model covers 25 mm to 300 mm with a visible red laser. If your targets are always within 100 mm, a shorter-range sensor may be more cost-effective; otherwise the 300 mm version gives full headroom.
What does the 300 mm maximum sensing distance mean on the shop floor?
The sensor reliably detects objects from 25 mm up to 300 mm. Repeatability is ±0.5 mm from 25 mm to 50 mm and ±1 % of range from 50 mm to 300 mm.
How does the M12 quick-disconnect and 10-30 V dc supply limit installation?
The 5-pin M12 Euro connector plugs directly into standard cordsets. Power must be 10-30 V dc; the unit draws up to 100 mA per output and powers up in 750 ms.
