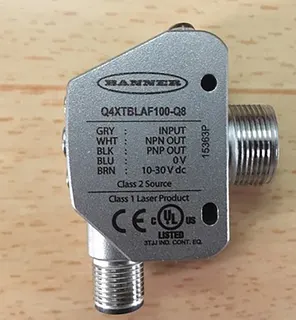

Red rectangular laser sensor with M12 5-pin connector

Banner

Banner Q4XTBLAF100-Q8 Laser Distance Sensor 100 mm Range M12 5-Pin

SKU CH-GHW0-PPSQT MPN Q4XTBLAF100-Q8

Laser distance sensor measures 25 mm to 100 mm with 0.2 mm repeatability and M12 5-pin connection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Accurate detection within 100 mm range
  • Stainless steel housing withstands 100G shock
  • Class 1 laser safe for operators
  • Bipolar NPN and PNP outputs simplify wiring

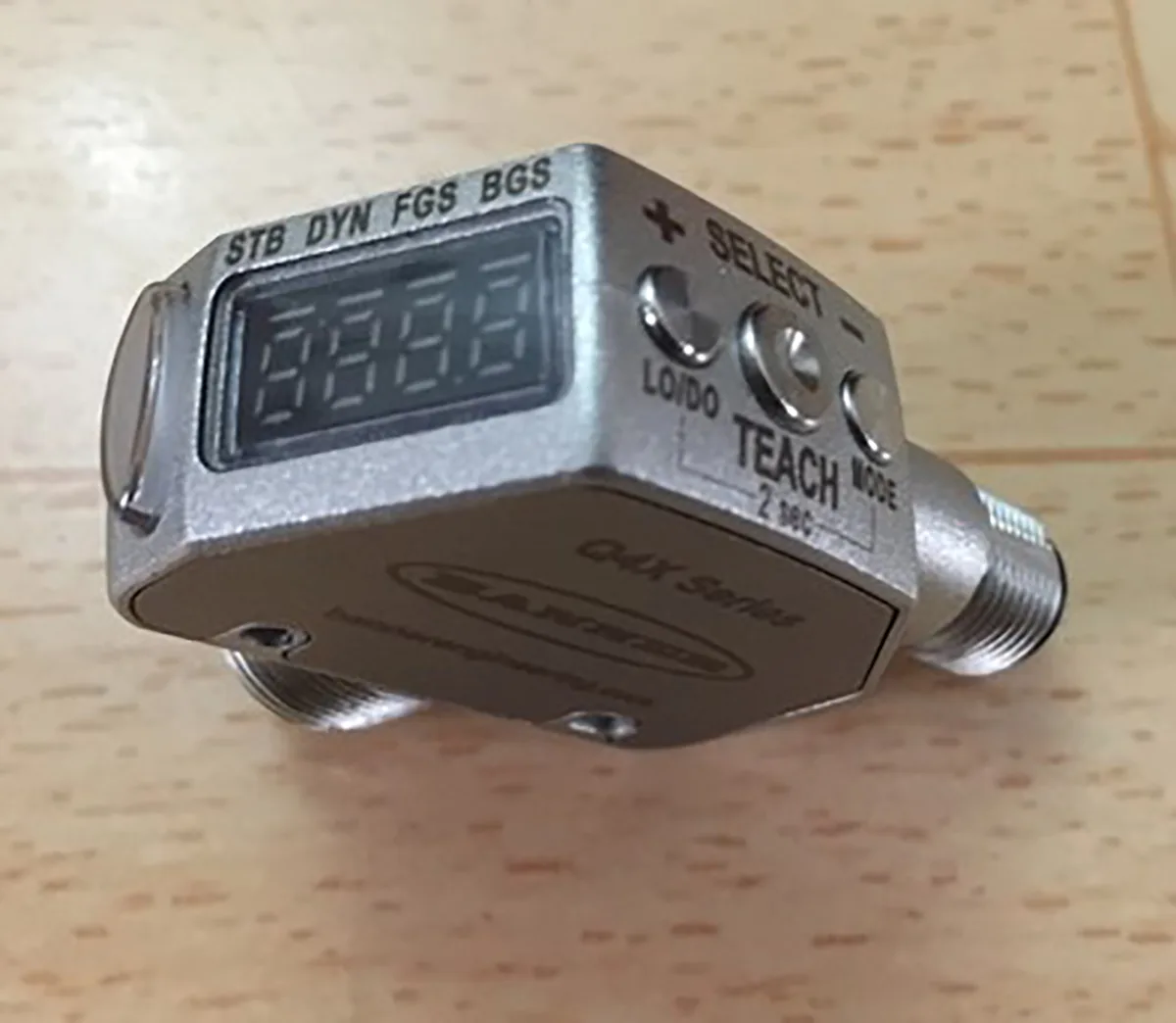

  • Push-button and remote teach enable quick setup

Laser Distance Sensor 100 mm

The Banner Q4XTBLAF100-Q8 is a Class 1 laser proximity sensor designed for precise object detection in industrial automation. It suits engineers and technicians who need reliable background and foreground suppression within a compact stainless steel housing.

M12 5-Pin Integral Connector

The Euro-style quick-disconnect provides a secure 10 to 30 V dc power and bipolar output link with one NPN and one PNP channel. Push-button and remote teach adjustments let installers set the sensing field without a PC, while LED indicators confirm status at a glance.

25 to 100 mm Sensing Window

Objects closer than 25 mm or farther than 100 mm fall outside the defined detection zone, limiting use in very tight or long-range applications. Repeatability holds to ±0.2 mm with a temperature drift of ±0.05 mm per °C, and the unit withstands 10 G vibration and 100 G shock per MIL-STD-202G.

Highlights

  • Accurate detection within 100 mm range
  • Stainless steel housing withstands 100G shock
  • Class 1 laser safe for operators
  • Bipolar NPN and PNP outputs simplify wiring
  • Push-button and remote teach enable quick setup

Specifications

BrandBANNER
ModelQ4XTBLAF100-Q8
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the stainless steel housing or the M12 5-pin connector need periodic replacement?

The housing is stainless steel and the connector is an integral M12 5-pin Euro quick-disconnect; neither has a stated replacement interval.

What limits continuous operation first — the 100 mm sensing range or the 10–30 V dc supply?

The maximum sensing distance is fixed at 100 mm; the sensor requires a 10–30 V dc supply to operate.

How much heat or noise does the Class 1 laser generate during all-day use?

The unit uses a Class 1 visible red laser at 655 nm with a 750 ms power-up delay; no acoustic or thermal output figures are published.
