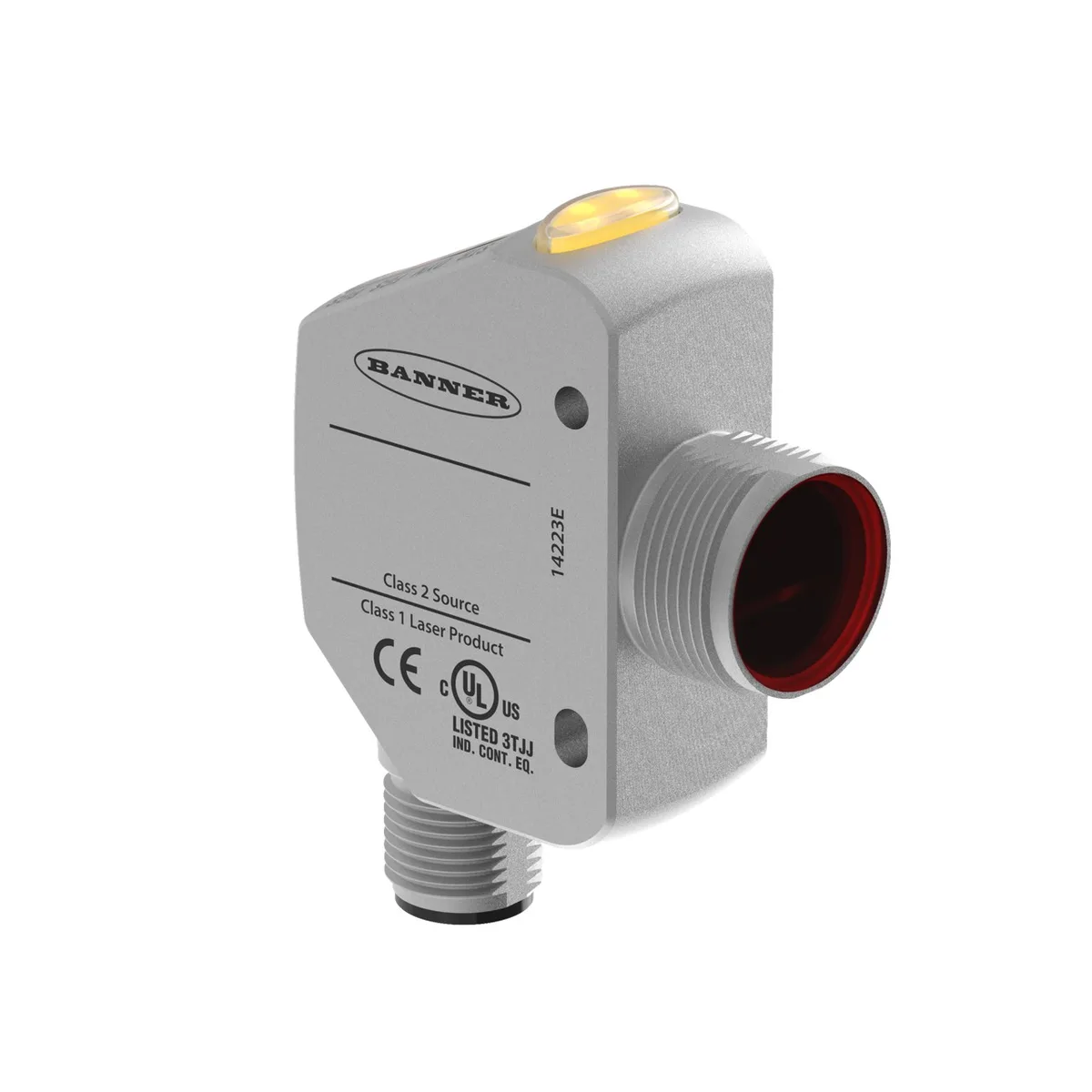

Red rectangular laser sensor with stainless steel housing and M12 connector

Banner

Banner Q4XFPLAF310-Q8 electrician tool laser sensor 310 mm range 10-30 V dc M12 4-pin

SKU CH-YFCX-7QAY2 MPN Q4XFPLAF310-Q8

Rugged stainless-steel laser distance sensor detects objects from 35 mm to 310 mm with 10-30 V dc supply and M12 4-pin connection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise background suppression up to 310 mm range
  • Rugged stainless-steel housing withstands 100 G shock and 10 G vibration
  • Visible Class 1 red laser at 655 nm for easy alignment
  • Wide 10-30 V dc supply suits industrial power systems
  • Push-button and remote teach enable fast sensor setup

Rugged Laser Distance Sensor

The Banner Q4XFPLAF310-Q8 is a Class 1 visible red laser sensor designed for precise proximity detection in industrial environments. It offers a sensing range from 35 mm to 310 mm with background and foreground suppression. The stainless steel rectangular housing provides durability for demanding electrician and automation tasks.

Build Integration Requirements

This sensor operates on a 10-30 V dc power supply and connects via an integral M12 4-pin Euro quick-disconnect connector. It features a single PNP discrete output with a saturation voltage under 1.5 V at 100 mA. The flush mount housing style allows direct installation on machine surfaces without protruding brackets.

Bundled Configuration Benefits

Push-button and remote teach adjustments enable quick setup without a PC connection. The unit withstands vibration per MIL-STD-202G Method 201A and mechanical shock per Method 213B Condition I (100G). A 750 ms power-up delay and temperature compensation of +/- 0.05 mm/°C up to 125 mm ensure stable operation.

Highlights

  • Precise background suppression up to 310 mm range
  • Rugged stainless-steel housing withstands 100 G shock and 10 G vibration
  • Visible Class 1 red laser at 655 nm for easy alignment
  • Wide 10-30 V dc supply suits industrial power systems
  • Push-button and remote teach enable fast sensor setup

Specifications

BrandBANNER
ModelQ4XFPLAF310-Q8
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How close can an object get before the 310 mm laser sensor stops detecting it reliably?

The minimum sensing distance is 35 mm; anything closer falls outside the specified range.

What temperature drift should I expect if the sensor runs continuously in a warm cabinet?

Drift is ±0.05 mm/°C between 25 mm and 125 mm, and ±0.35 mm/°C at 300 mm.

Which power supply and connector must already be on the machine for this sensor to operate?

It requires a 10-30 V dc supply and mates with an M12 4-pin Euro quick-disconnect.
