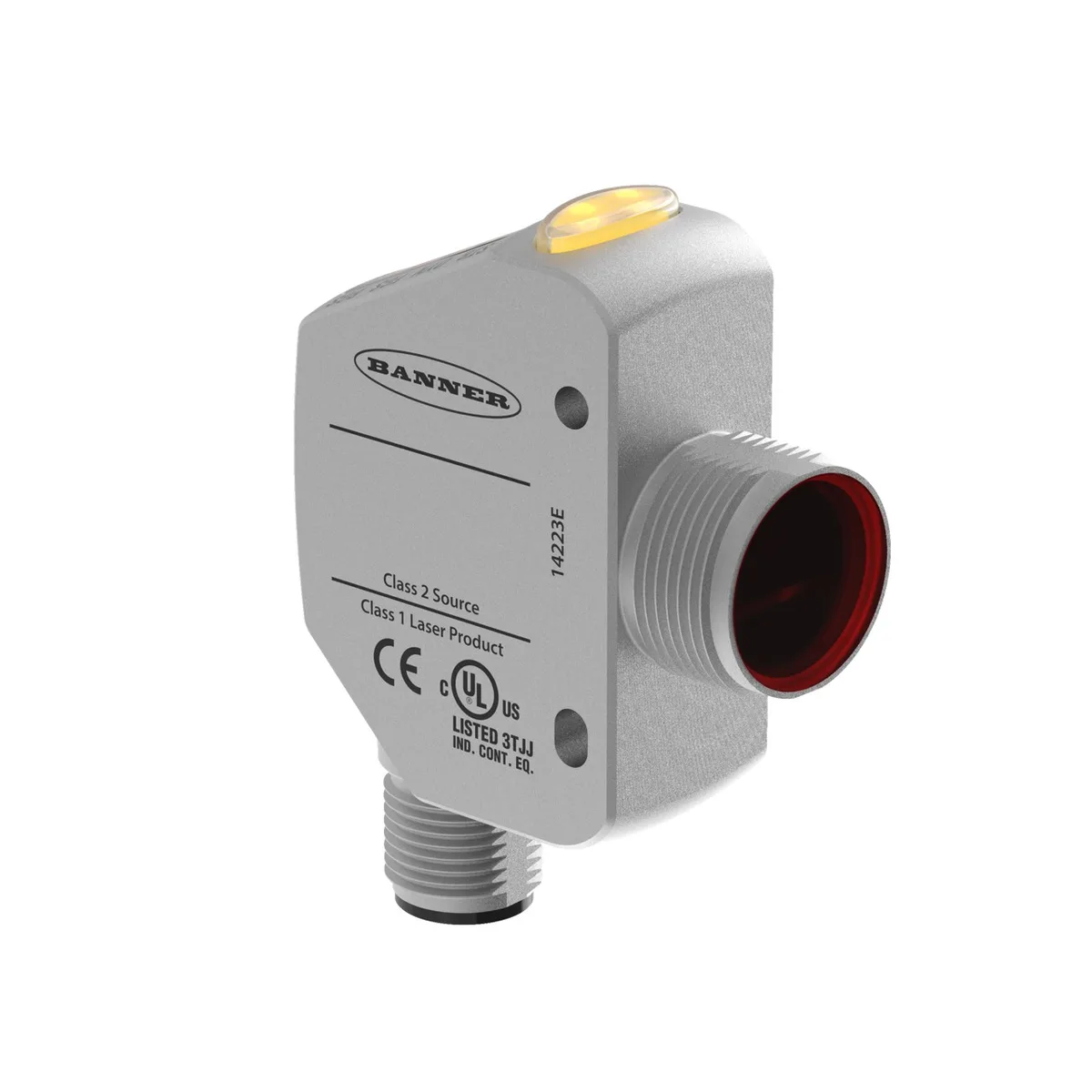

Rectangular stainless steel laser distance sensor with red finish and M12 connector

Banner

Banner Q4XFPLAF110-Q8 Laser Distance Sensor 110 mm electrician tool

SKU CH-DRFV-H685D MPN Q4XFPLAF110-Q8

A rugged laser distance sensor measuring 35 to 110 mm with Class 1 visible red laser, stainless steel housing, M12 connector and 10-30 V dc supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise 110 mm laser ranging for tight spaces
  • Visible 655 nm red Class 1 beam aids alignment
  • Stainless steel housing withstands 100 G shock and 10 G vibration
  • 10–30 V dc supply with single NPN output simplifies wiring
  • Push-button and remote teach enable fast setup

Rugged Laser Sensor for 110 mm Range

The Banner Q4XFPLAF110-Q8 is a rectangular stainless-steel proximity sensor built for electricians and industrial installers who need precise background and foreground suppression at a fixed 110 mm maximum sensing distance with a 35 mm minimum. Its visible red Class 1 laser beam simplifies alignment during setup.

Thermal Stability and Electrical Noise Immunity

Operating from a 10-30 V dc supply, the sensor draws power with a 750 ms start-up delay and maintains repeatability within .2 mm while temperature drift stays at .05 mm per °C. The NPN output saturates below 1.0 V at 100 mA and is protected against short circuits and reverse polarity.

Push-Button Teach and M12 Quick-Disconnect

Adjustments are made locally via push button or remotely through a teach wire without any PC software. The integral four-pin Euro M12 connector enables rapid cable swaps, and the housing meets MIL-STD-202G vibration Method 201A and shock Method 213B Condition I for 100 G impacts.

Highlights

  • Precise 110 mm laser ranging for tight spaces
  • Visible 655 nm red Class 1 beam aids alignment
  • Stainless steel housing withstands 100 G shock and 10 G vibration
  • 10–30 V dc supply with single NPN output simplifies wiring
  • Push-button and remote teach enable fast setup

Specifications

BrandBANNER
ModelQ4XFPLAF110-Q8
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I wire the M12 4-pin connector to a 10-30 V dc supply for the NPN output?

Connect pin 1 to +10-30 V dc, pin 3 to 0 V, and pin 4 to the load which returns to 0 V; the sensor switches the load to ground with <1.0 V saturation at 100 mA max.

What replacement interval applies to the sensor itself under normal operation?

The manufacturer specifies a 3-year parts coverage period; no user-serviceable components or scheduled replacements are defined for the sealed stainless-steel housing.

At what distance does the background suppression limit detection reliability during continuous use?

Background suppression is factory-set for a 110 mm maximum sensing distance; objects beyond this limit are ignored, and the 0.05 mm/°C temperature drift is the first spec to affect repeatability.
