Red rectangular laser sensor with M12 connector and LED indicators

Banner

Banner LT3PIQ 50 m Time-of-Flight Laser Sensor

SKU CH-B55G-KFD6X MPN LT3PIQ

Measures distance from 0.3 to 5 metres using a Class 2 red laser with 4–20 mA analog and PNP discrete outputs on a 12–24 V supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Measures up to 5.0 m with time-of-flight laser precision
  • Operates on 12-24 V dc power supply for flexible installation
  • Provides 4-20 mA analog and PNP discrete outputs for versatile control
  • Class 2 visible red laser at 658 nm ensures safe, clear targeting

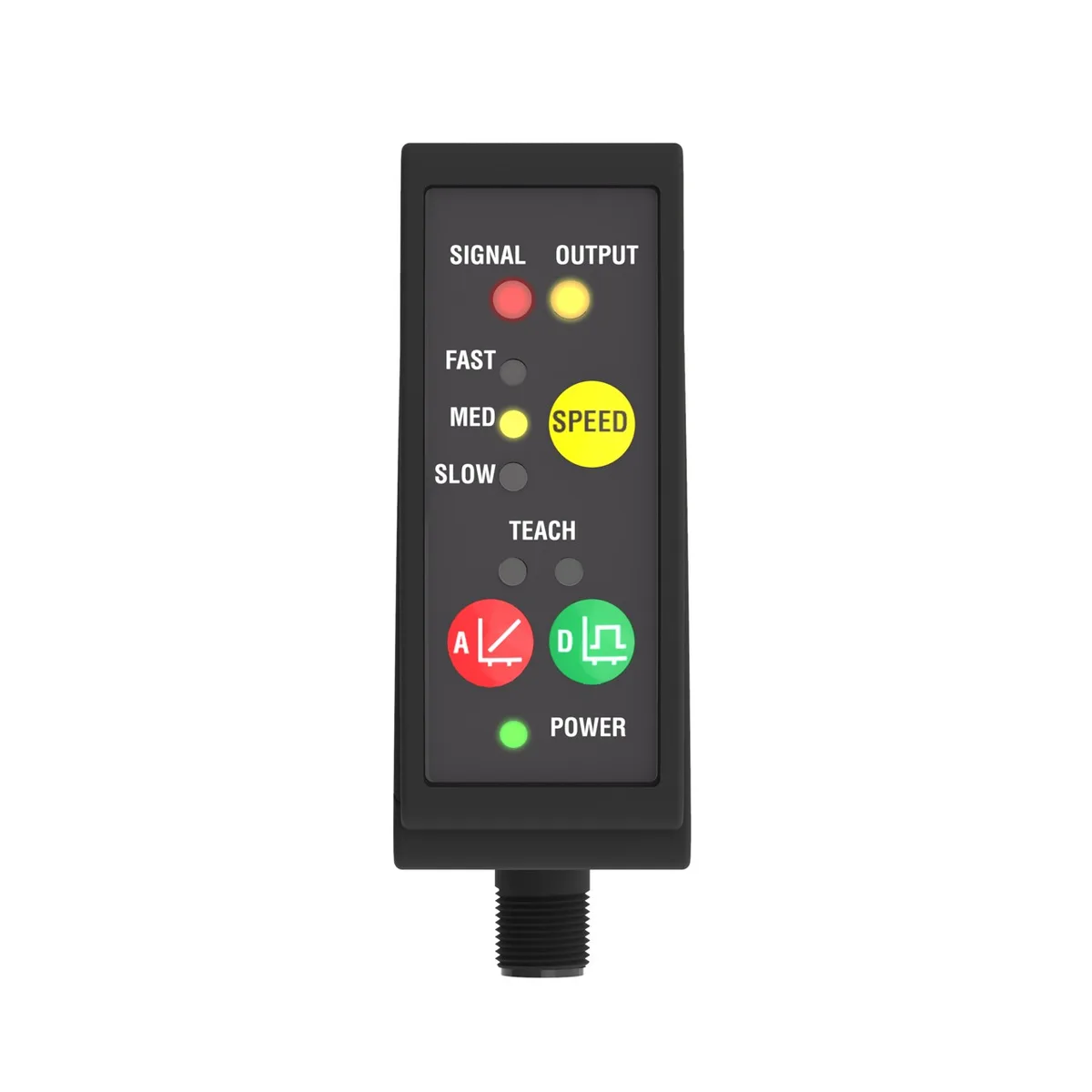

  • Push-button and remote teach adjustments simplify sensor configuration

Laser distance sensor for industrial measurement

The Banner LT3PIQ is a diffuse time-of-flight laser sensor designed for non-contact distance measurement in industrial environments. It suits automation engineers and maintenance technicians who need reliable presence detection or position monitoring up to five metres. The visible red Class 2 laser provides a clear alignment reference during setup.

Simple mounting with push-button teach

The rectangular ABS housing mounts directly to machinery and connects via an integral M12 Euro 8-pin quick-disconnect for fast wiring. Configuration uses the on-board push buttons or remote teach wire without a PC. Installers must ensure the 12-24 V dc supply is stable and that the target remains within the 300 mm to 5000 mm sensing window to avoid signal loss.

0.3 to 5.0 metre sensing range decides fit

The sensor measures distances from three hundred millimetres to five thousand millimetres with an analog 4-20 mA output and a single PNP discrete output. Temperature drift is rated at two millimetres per degree Celsius. Buyers needing longer range, tighter resolution at high speed, or a different output protocol should select another model.

Highlights

  • Measures up to 5.0 m with time-of-flight laser precision
  • Operates on 12-24 V dc power supply for flexible installation
  • Provides 4-20 mA analog and PNP discrete outputs for versatile control
  • Class 2 visible red laser at 658 nm ensures safe, clear targeting
  • Push-button and remote teach adjustments simplify sensor configuration

Specifications

BrandBANNER
ModelLT3PIQ
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How can I verify the sensor is measuring correctly after wiring it to a 12-24 V dc supply?

Power the unit and observe the LED indicators; the analog output should track the target distance with 4 mA at the near limit and 20 mA at the far limit, while the discrete PNP output switches at the taught threshold.

What ships in the box and what must I source separately?

The box contains one LT3PIQ sensor with an integral M12 8-pin Euro quick-disconnect; you must provide a compatible 8-conductor M12 cable and a 12-24 V dc power supply.

Which sensing range version should I choose for a 4 m measurement task?

The LT3PIQ covers 0.3 m to 5.0 m, so a single model handles a 4 m span without needing a different range variant.
