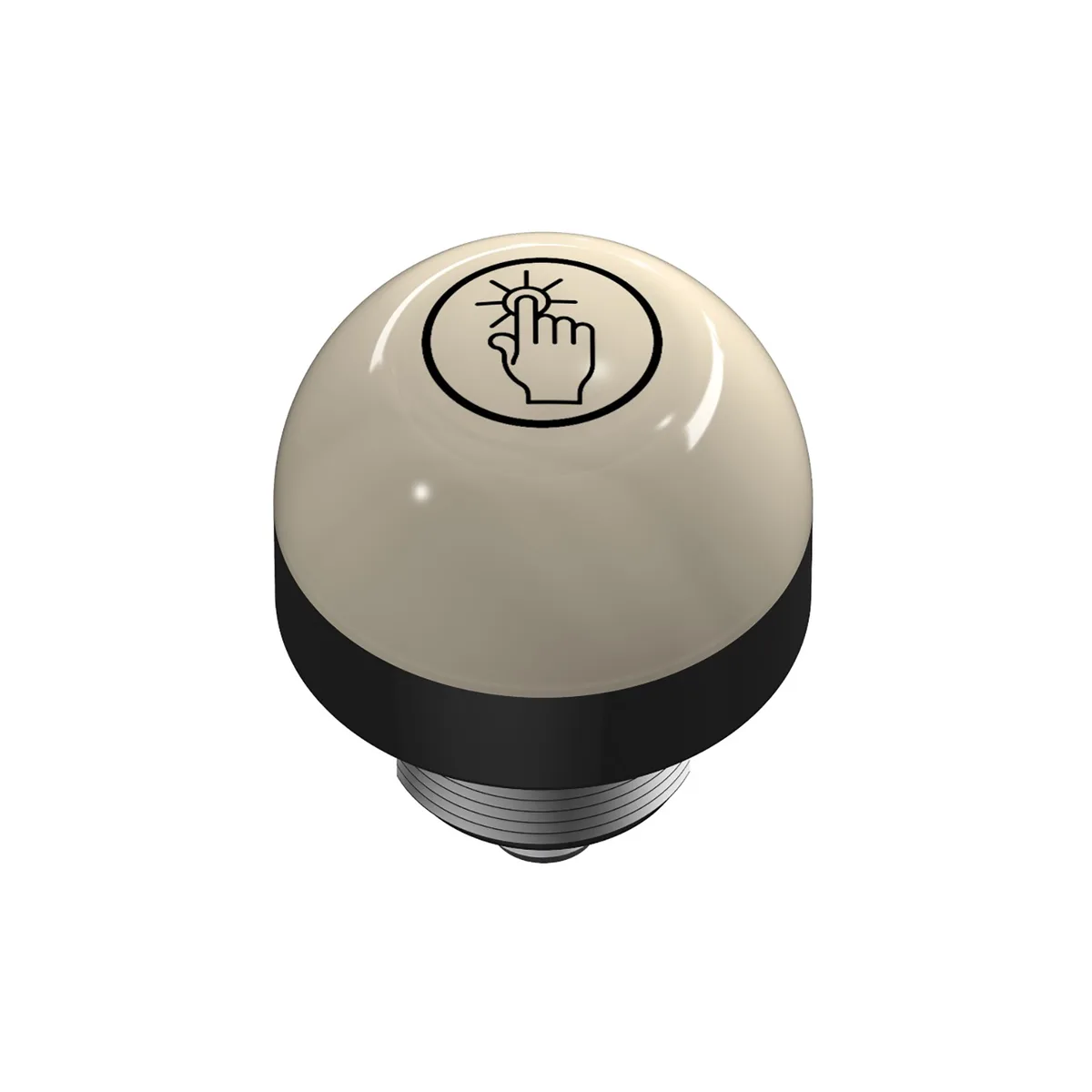

Cylindrical 50 mm polycarbonate dome button with red and green illumination M12 connector IP67 IP69K

Banner

Banner K50APTGRCQ 50 mm Pick-To-Light Touch Button Red Green 12-30 V dc IP67 IP69K

SKU CH-836A-659J3 MPN K50APTGRCQ

A 50 mm capacitive touch button with red and green LEDs for pick-to-light use, operating on 12-30 V dc with IP67 and IP69K sealing

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Capacitive touch activation enables fast pick-to-light response
  • Dual green and red LEDs provide clear job-status indication
  • 12-30 V dc supply fits common industrial power rails
  • IP67 and IP69K ratings withstand wash-down and high-pressure cleaning
  • M12 Euro quick-disconnect allows rapid installation and replacement

Pick-to-light button for assembly and kitting

The Banner K50APTGRCQ is a 50 mm capacitive touch sensor designed for pick-to-light workflows. It shows green or red illumination to confirm or reject a pick action. The unit operates on 12-30 V dc and mounts with an M30 x 1.5 thread. An integral M12 Euro-style quick-disconnect connector with a 0.15 m cable simplifies wiring in industrial environments.

Sealed polycarbonate housing rated IP67 and IP69K

The dome window and base are moulded from polycarbonate, giving resistance to water jets and high-pressure wash-down. Power draw peaks at 75 mA per colour at the 12-30 V dc supply range. Green output measures 29.0 lm at 525 nm and red output measures 13.0 lm at 625 nm. Maximum output response time is 50 ms.

Quick-disconnect cable

The 0.15 m cable with M12 connector plugs directly into compatible I/O blocks, reducing installation time. An acknowledge sense light glows red when the touch is registered, giving immediate operator feedback. The PNP normally-open output suits standard PLC input cards. Buyers needing more than two colour segments or a different actuation method should consider other models.

Highlights

  • Capacitive touch activation enables fast pick-to-light response
  • Dual green and red LEDs provide clear job-status indication
  • 12-30 V dc supply fits common industrial power rails
  • IP67 and IP69K ratings withstand wash-down and high-pressure cleaning
  • M12 Euro quick-disconnect allows rapid installation and replacement

Specifications

BrandBANNER
ModelK50APTGRCQ
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the K50APTGRCQ and which step do installers often skip?

Screw the M30 x 1.5 thread into a prepared panel cut-out, then tighten the locknut to the specified torque; the step often missed is applying the supplied gasket to maintain the IP67 and IP69K seal.

What part of the K50APTGRCQ will need replacement first during long-term use?

The standard LED segments are rated for typical industrial lifetimes; the green emitter at 525 nm and 29.0 lumens and the red emitter at 625 nm and 13.0 lumens will gradually dim, so plan to replace the complete unit when brightness falls below your process threshold.

What thermal or electrical limit appears first when the K50APTGRCQ runs continuously at 30 V dc?

The colour-maximum current of 75 mA per segment is reached before the 12-30 V dc supply range is exceeded, so sustained full-brightness operation at the top voltage will hit the current limit first.
