Banner
Banner K50APT2GRYF2Q 50 mm illuminated touch button electrician tool
A 50 mm capacitive-touch indicator with green, red and yellow LEDs, PNP inputs, M12 quick-disconnect and IP67/IP69K sealing for 12–30 V dc systems
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Capacitive touch activation for reliable operation without moving parts
- Three-colour LED indication with green, red and yellow outputs
- IP67 and IP69K ratings for dust and high-pressure wash-down resistance
- 12 to 30 V dc supply range suits industrial control circuits
- M12 Euro-style quick-disconnect for fast installation
50 mm illuminated touch sensor for industrial

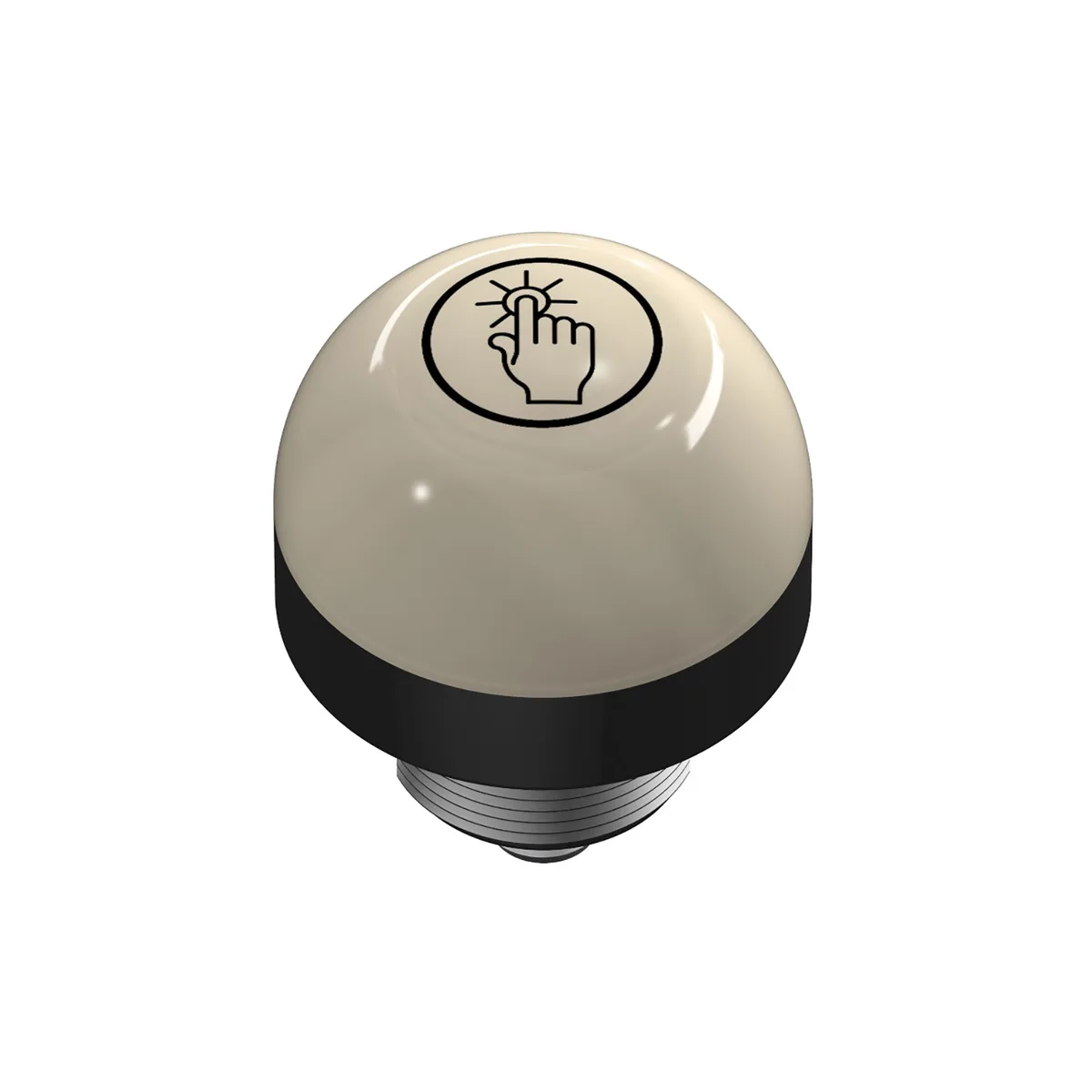

The Banner K50APT2GRYF2Q is a 50 mm polycarbonate dome sensor that operates on 12-30 V dc supply voltage. It uses capacitive touch actuation with three independent colour inputs showing green, red and yellow LEDs. The housing carries IP67 and IP69 ratings and connects through an M12 Euro-style quick-disconnect with a 2 m cable.
Suited for pick-to-light stations needing three
This sensor fits workstations that require a green, red and yellow indication driven by separate PNP input wires. Its 50 ms maximum output response time supports fast cycle counting. Buyers who need more than three colour segments or a different actuation method should look at other models.
Check your mounting and wiring before ordering
Verify the M30 x 1.5 mounting thread matches your panel cut-out and that the 50.0 x 66.0 mm physical dimensions clear adjacent components. Confirm the 12-30 V dc supply and PNP normally-open logic match the controller outputs. Ensure the 8-conductor M12 quick-disconnect pinout aligns with your cable harness.
Highlights
- Capacitive touch activation for reliable operation without moving parts
- Three-colour LED indication with green, red and yellow outputs
- IP67 and IP69K ratings for dust and high-pressure wash-down resistance
- 12 to 30 V dc supply range suits industrial control circuits
- M12 Euro-style quick-disconnect for fast installation
Specifications
| Brand | BANNER |
|---|---|
| Model | K50APT2GRYF2Q |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What voltage supply does the K50APT2GRYF2Q need to operate?
The button operates on a 12-30 V dc supply, so a compatible DC power source within that range must be provided.
Can the M12 quick-disconnect on this Gen 2 touch sensor connect to existing 4-pin cables?
The integral M12 Euro-style quick-disconnect has 8 conductors, so a standard 4-pin cable will not carry all required signals.
How do I verify the green, red and yellow segments are functioning correctly after wiring?
Each color lights solid on its dedicated input wire; green shows 525 nm at 29.0 lm, red 625 nm at 13.0 lm, yellow 591 nm at 24.0 lm.
