Red thermoplastic sensor housing with 2 m cable

Banner

Banner D12SN6FPY1 electrician tool 10-30 V dc NPN 2 m cable IP11

SKU CH-XQ6K-HNMNS MPN D12SN6FPY1

A high-speed plastic fiber-optic sensor with 10-30 V dc supply, complementary NPN output and 2 m cable for object counting applications

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • High-speed detection with 0.05 ms minimum response time
  • Wide 10-30 V dc supply range for flexible installation
  • 15-130 µs repeatability ensures consistent sensing accuracy
  • Remote teach via potentiometer simplifies setup adjustments
  • IP11 and NEMA 2 ratings protect against dust and dripping water

High-speed fibre optic sensor for 10-30 V dc systems

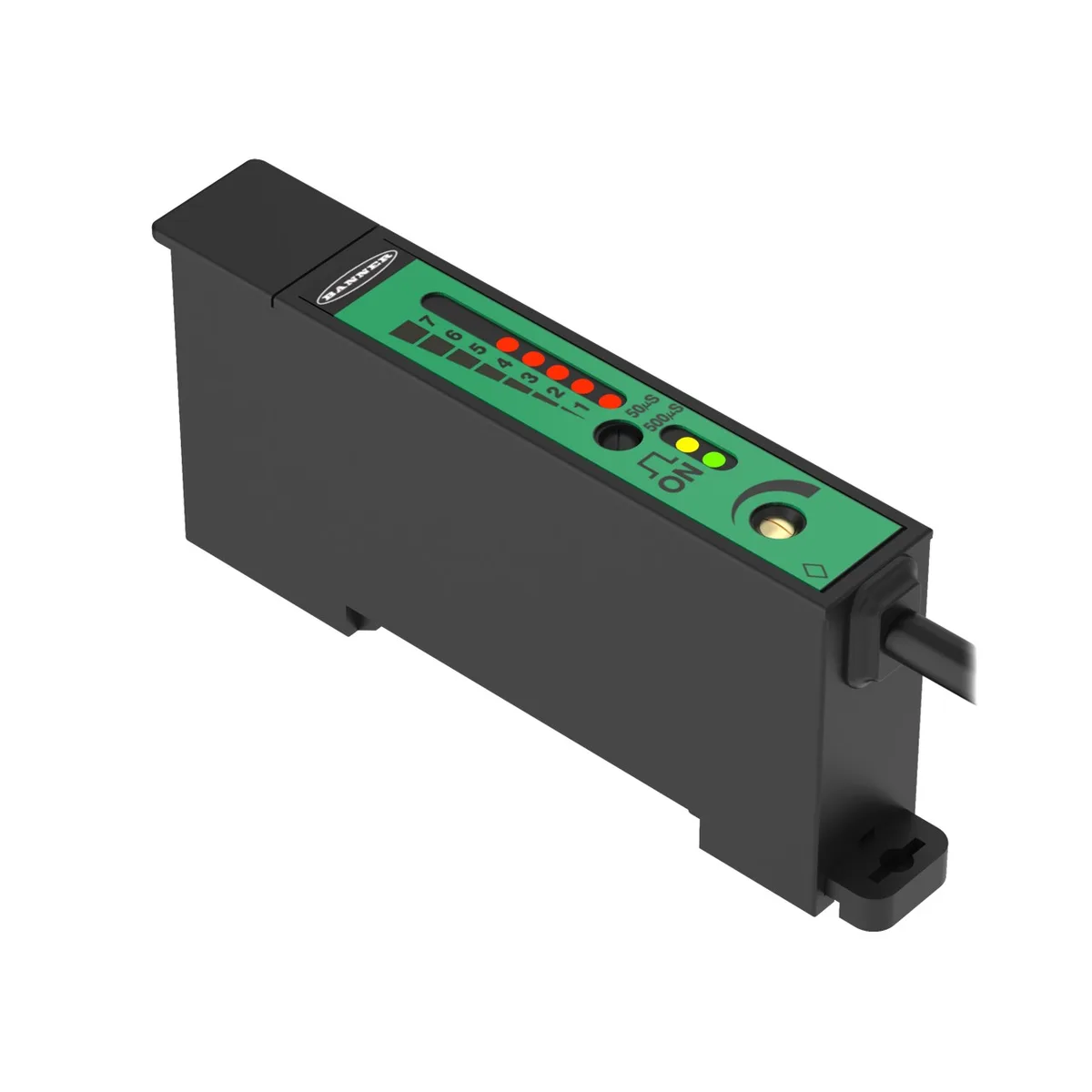

The Banner D12SN6FPY1 is a plastic and glass fibre optic sensor designed for object-counting tasks. It operates on a 10-30 V dc supply and provides a complementary NPN output with a 20 ms pulse stretch. A 2 m cable terminates the connection and the housing mounts on standard DIN rail.

Sustained operation from -20 °C to 70 °C

The sensor maintains a minimum response time of 0.05 ms and repeatability between 15 and 130 µs across the full temperature range. A 100 ms power-up delay prevents false triggers during start-up while the potentiometer adjustment and bargraph indicator allow continuous threshold monitoring without interruption.

Thermoplastic housing rated IP11

The red-finished enclosure uses thermoplastic material and carries a 4-pin cable connection without quick-disconnect. DIN rail mounting simplifies panel installation and the 3-year parts coverage supports long-term service planning. The unit is not intrinsically safe and lacks IO-Link or audible features.

Highlights

  • High-speed detection with 0.05 ms minimum response time
  • Wide 10-30 V dc supply range for flexible installation
  • 15-130 µs repeatability ensures consistent sensing accuracy
  • Remote teach via potentiometer simplifies setup adjustments
  • IP11 and NEMA 2 ratings protect against dust and dripping water

Specifications

BrandBANNER
ModelD12SN6FPY1
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the 10-30 V dc supply range and 2 m cable keep heat low during all-day operation?

The sensor runs on 10-30 V dc with a 100 ms power-up delay and a maximum operating temperature of 70 °C, so continuous use stays within rated limits.

What supply voltage and cable type must I already have to connect the 4-pin NPN output?

You need a 10-30 V dc source and a 4-wire cable; the unit ships with a 2 m (6.5 ft) attached cable and no quick-disconnect.

Will the complementary NPN output with 20 ms pulse stretch work with my existing PLC input cards?

The output is a single discrete NPN type with 15-130 µs repeatability and 0.05 ms minimum response time, compatible with standard NPN PLC inputs.
