AZ Instrument Corp
AZ Instrument Corp AZ-9661 Electrician Tool PH/mV Data Logger
Measures pH 0.00 to 14.0 and mV ±999.9 with 4,000-point logging and PC software
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Measures pH 0.00–14.0 with ±0.02 accuracy
- Logs up to 4000 data points automatically or 99 manually
- Displays pH, mV and temperature on backlit 26×45 mm dot-matrix LCD
- PC interface with software for data download and header upload
- Operates on 4 AAA batteries or 9 V adaptor
Digital pH/mV Data Logger for Field Technicians

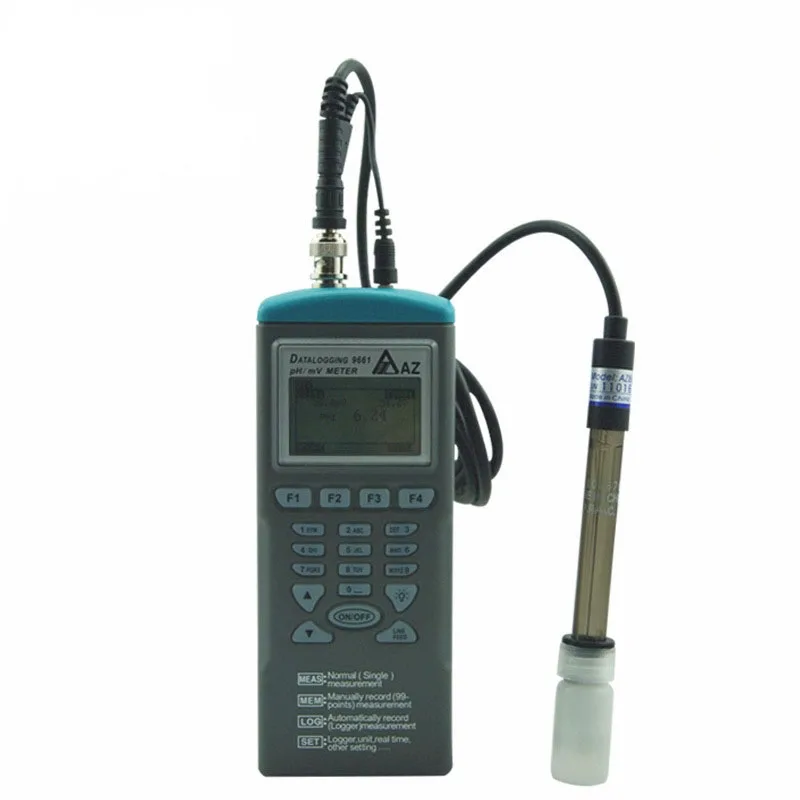

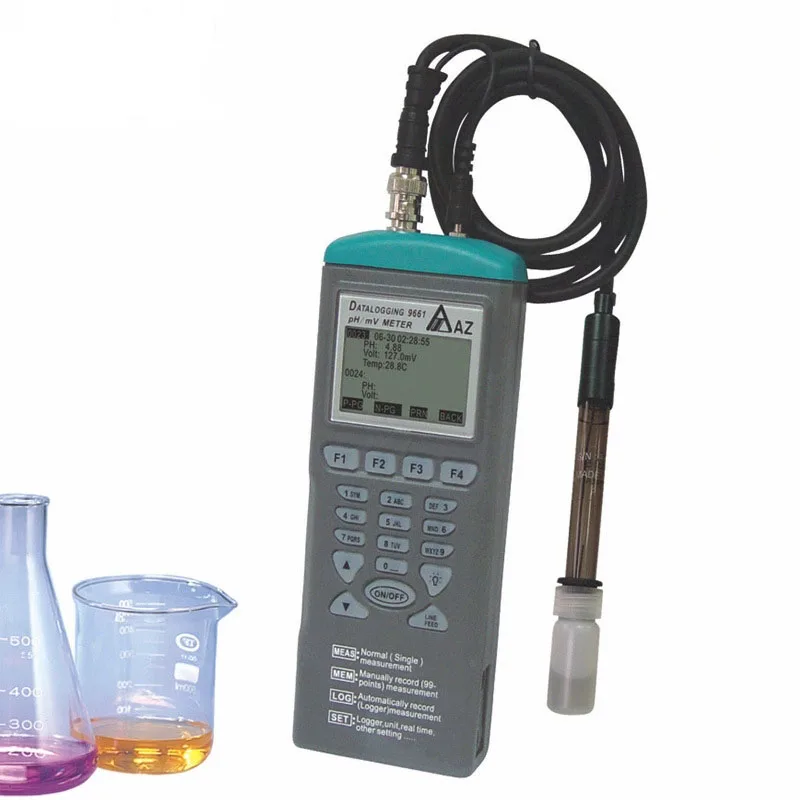

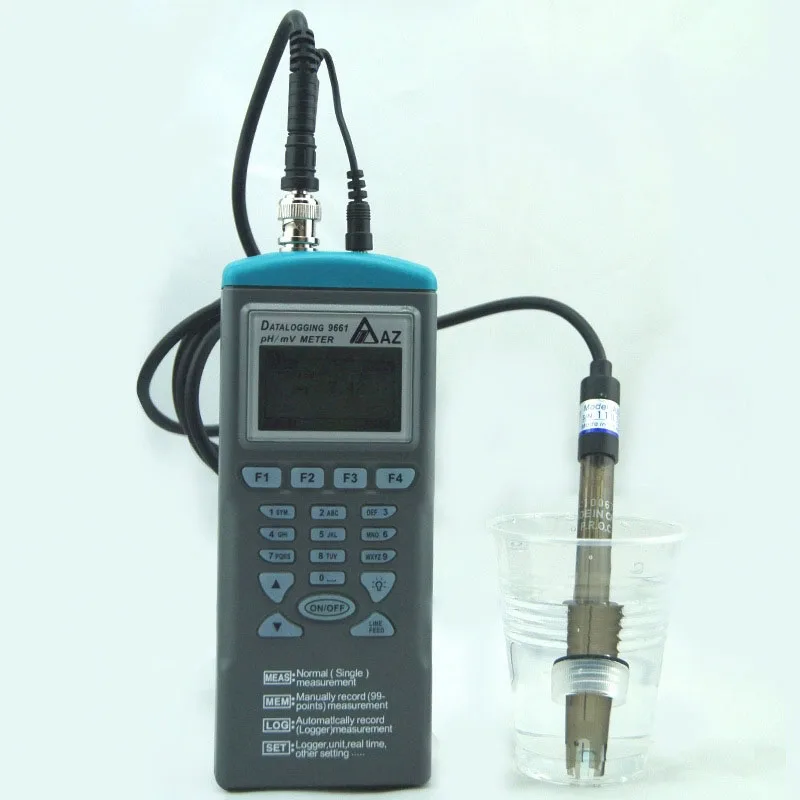

The AZ-9661 is a handheld meter that measures pH, temperature and millivolt values in a single device. It suits electricians, water-quality technicians and laboratory staff who need portable data capture. The meter stores up to 4000 automatic readings or 99 manual entries for later review.
Programmable Automatic Recording up to 4000 Points
The defining specification is the programmable auto-logging function that captures up to 4000 time-stamped records without user intervention. Sampling intervals are set on the meter or uploaded from a PC via the included cable and software. This capacity covers extended monitoring sessions that single-point or manual modes cannot.
PC Connectivity with Tripod Mount for Stable Logging
A serial cable and software CD link the meter to a computer for data download and header uploads. The built-in tripod receptacle lets the unit stand unattended during long automatic runs, reducing cable strain on the probe. Power comes from four AAA cells or an optional 9 V adaptor; the backlit 26 × 45 mm dot-matrix LCD remains readable in low light.
Highlights
- Measures pH 0.00–14.0 with ±0.02 accuracy
- Logs up to 4000 data points automatically or 99 manually
- Displays pH, mV and temperature on backlit 26×45 mm dot-matrix LCD
- PC interface with software for data download and header upload
- Operates on 4 AAA batteries or 9 V adaptor
Specifications
| Brand | AZ Instrument Corp |
|---|---|
| Model | AZ-9661 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
How does the 4000-point automatic logging work in daily use?
The meter can be programmed to record up to 4000 readings automatically at set intervals, storing pH, mV and temperature together for later download to a PC via the supplied cable and software.
What does the PC interface actually let me do?
The cable and software CD provide a direct link to a computer so you can download the stored data logs or upload a custom header that will appear on the meter's display.
What mounting options does the 170×70×40 mm body provide?
A built-in tripod receptacle on the underside lets you fix the logger to a standard camera tripod for hands-free operation on a bench or in the field.
