Red 4-digit LED panel meter with 14.2mm display height

Autonics Corp

Autonics Corp MT4W-DA-48 4-digit LED panel meter electrician tool

SKU CH-JZ7S-7CK3K MPN MT4W-DA-48

A 4-digit LED panel meter measuring DC current from 0-5 A with a 14.2 mm display height and 100-240 VAC power supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Clear readings from 14.2mm high 4-digit LED display
  • Measures DC current across eight ranges from 0-2mA to 0-5A
  • Wide 100-240VAC 50/60Hz supply suits global installations
  • Shows values from -1999 to 9999 for broad monitoring
  • Compact 48mm panel meter fits standard cut-outs

4-digit DC current panel meter

The Autonics MT4W-DA-48 is a 4-digit 7-segment LED panel meter designed for DC current measurement. It accepts multiple input ranges from 0-5mA up to 0-5A, including the 4-20mA industrial standard. The red display offers a 14.2mm character height and a range of -1999 to 9999. It operates on a 100-240VAC 50/60Hz power supply.

Suited for panel monitoring, not portable testing

This meter suits control panels, motor starters and process equipment where a fixed DC current readout is required. Installers needing a panel cut-out mount with wide-range AC power will find it convenient. Technicians who need a handheld multimeter for bench or field fault-finding should look at a different instrument class.

Input range selection decides fit

The single specification that decides fit is the selectable DC current input range: 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA or 0-2mA. The application must match one of these fixed spans exactly; no other ranges or signal types are supported.

Highlights

  • Clear readings from 14.2mm high 4-digit LED display
  • Measures DC current across eight ranges from 0-2mA to 0-5A
  • Wide 100-240VAC 50/60Hz supply suits global installations
  • Shows values from -1999 to 9999 for broad monitoring
  • Compact 48mm panel meter fits standard cut-outs

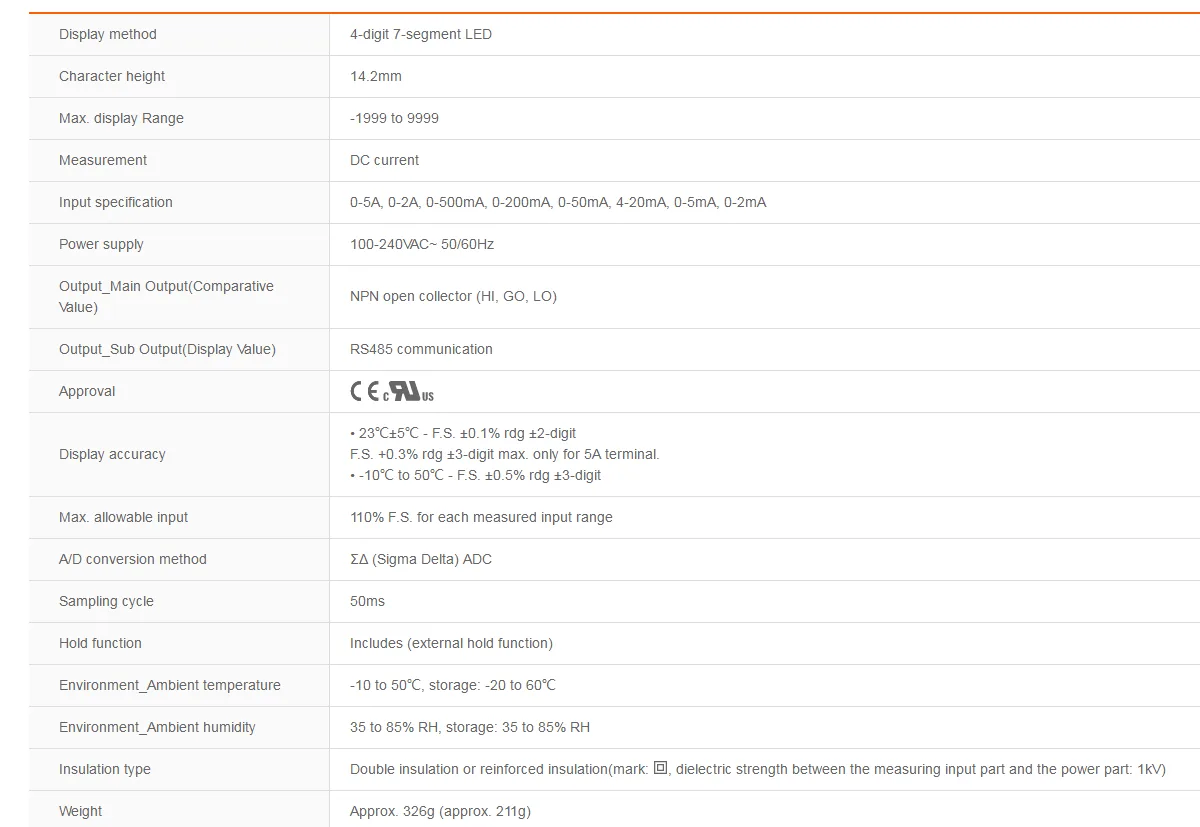

Specifications

BrandAutonics
ModelMT4W-DA-48
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What panel cut-out size does the 48 mm MT4W-DA-48 need for flush mounting?

The meter fits a standard 48 mm square cut-out; allow a few millimetres clearance behind the bezel for the screw terminals and 100-240 VAC supply wiring.

Which wiring step on the MT4W-DA-48 do installers most often miss?

Selecting the correct input range — 0-5 A, 0-2 A, 0-500 mA, 0-200 mA, 0-50 mA, 4-20 mA, 0-5 mA or 0-2 mA — before applying 100-240 VAC power.

How long do the red 14.2 mm LED digits on the MT4W-DA-48 typically last before dimming?

The 7-segment LED display is rated for years of continuous 50/60 Hz operation; plan to replace the unit if brightness drops below readable levels.
