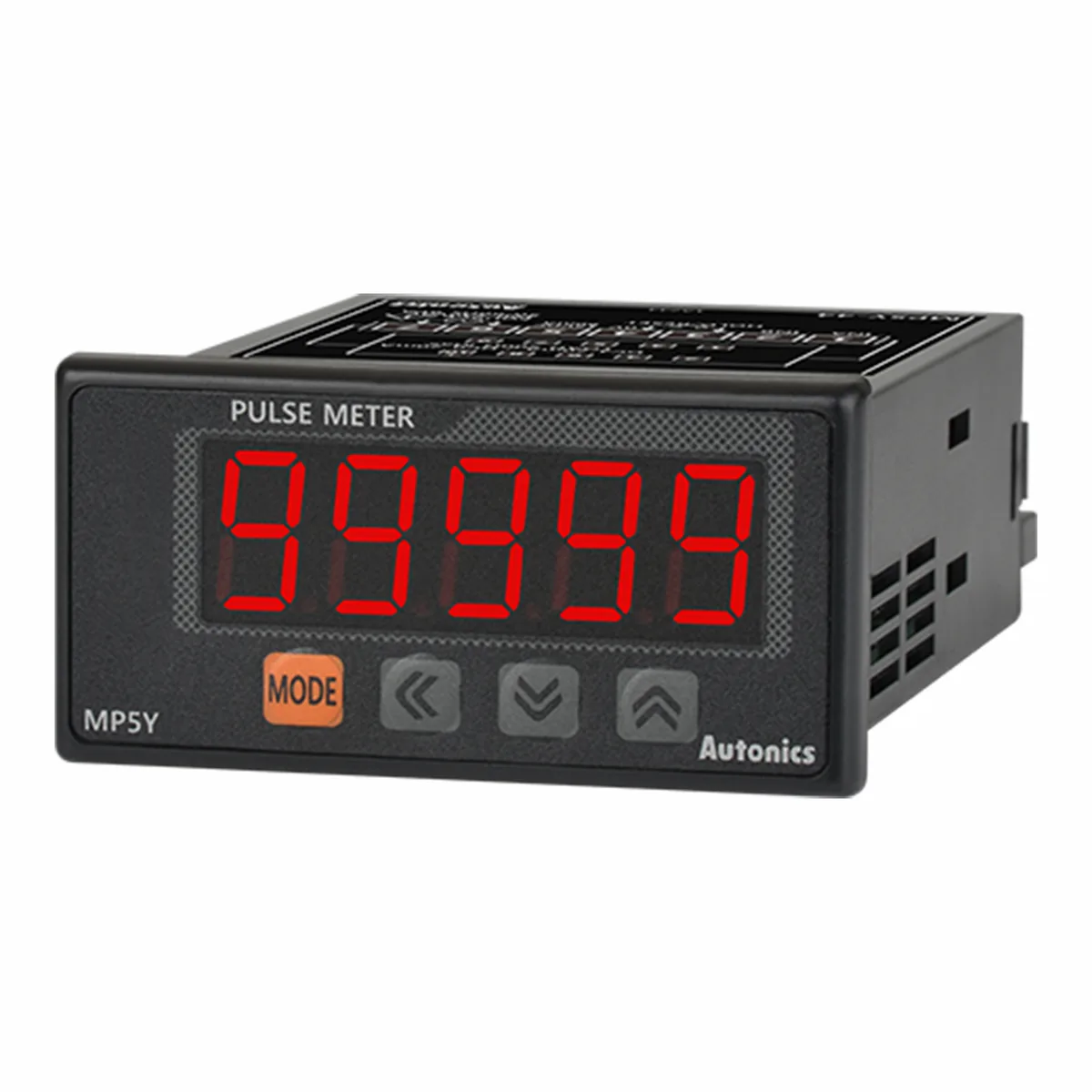

Red 5-digit 7-segment LED panel meter with 14mm characters

Autonics Corp

Autonics Corp MP5Y-44 Digital Panel Meter 14mm 16 Modes

SKU CH-W868-2D6A7 MPN MP5Y-44

Digital panel meter with 14 mm LED display and 16 measurement modes covering frequency, speed and time up to 50 kHz

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Clear 5-digit LED readout at 14 mm height
  • 16 selectable modes cover frequency, speed and time
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage signals
  • Operates on 100-240 VAC 50/60 Hz supply

14 mm 5-digit LED display

The Autonics MP5Y-44 is a digital panel meter with a 14 mm character height and a five-digit 7-segment LED display. It covers a display range of -19999 to 99999 and offers 16 selectable operation modes. The unit accepts both voltage (PNP) and no-voltage (NPN) input signals. Power is drawn from a 100-240 VAC 50/60 Hz supply.

Suits process monitoring.

Engineers who need a single panel meter for frequency, speed, cycle time, length or accumulation tasks will find the 16-mode flexibility useful. The 0.0005 Hz to 50 kHz input range covers most industrial sensors. Buyers who require isolated analogue outputs, serial networking or multi-channel logging should look at a different instrument class.

16 operation modes in one cut-out

The decisive specification is the inclusion of 16 measurement modes — frequency, revolutions, speed, cycle, time, ratio, density, error, length, interval, accumulation and addition/subtraction — within a single panel cut-out. This breadth lets one meter replace several dedicated counters in many production-line setups.

Highlights

  • Clear 5-digit LED readout at 14 mm height
  • 16 selectable modes cover frequency, speed and time
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage signals
  • Operates on 100-240 VAC 50/60 Hz supply

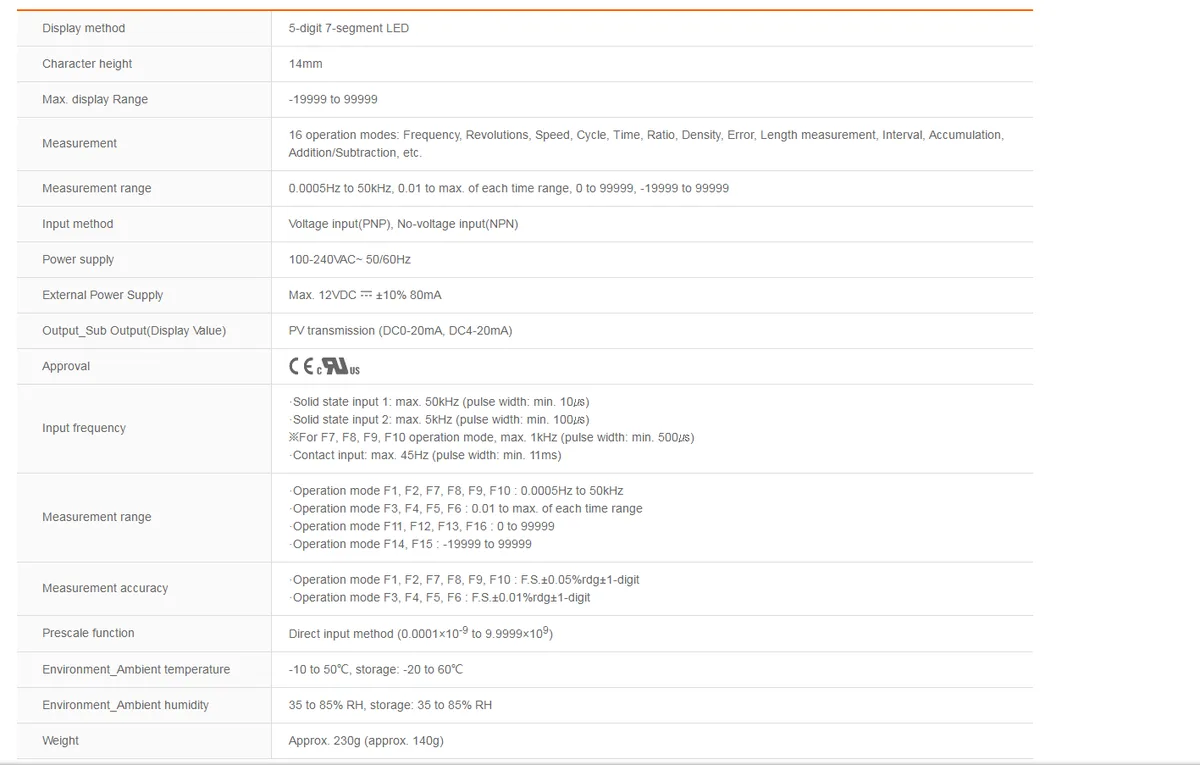

Specifications

BrandAutonics
ModelMP5Y-44
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How much power does the MP5Y-44 draw when running continuously on a 240 VAC supply?

The meter operates on 100-240 VAC at 50/60 Hz, so it connects directly to mains without an external adapter.

What wiring must I already have to use the voltage or no-voltage input modes?

The unit accepts PNP voltage input or NPN no-voltage input, so you need a compatible sensor or signal source wired to the terminals.

Will the 14 mm LED display stay readable next to older panel meters in the same cabinet?

The 5-digit 7-segment LED with 14 mm character height provides high contrast for clear side-by-side reading.
