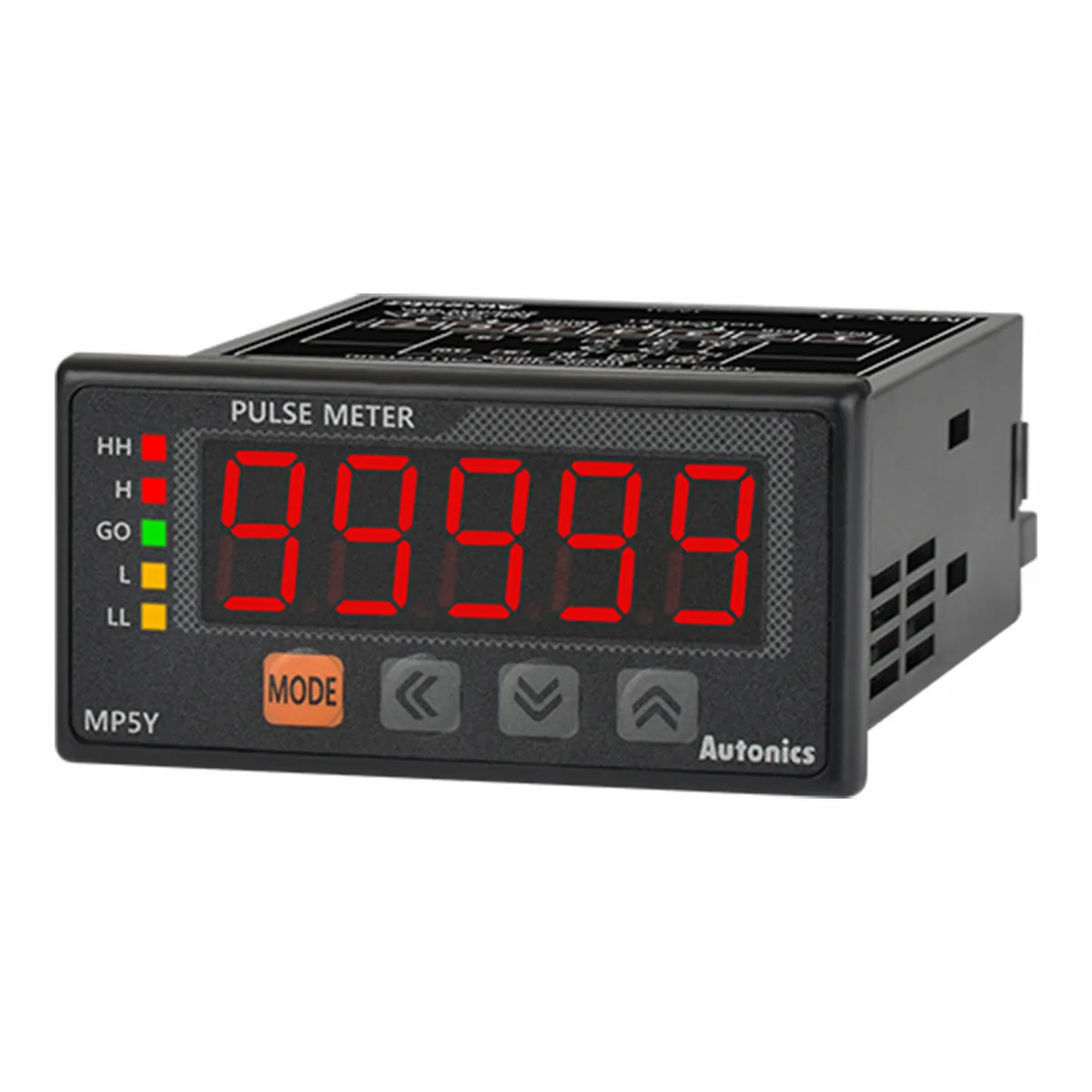

Autonics MP5Y-42 digital panel meter, rectangular red LED display, 14mm characters, 5 digits, 16 operation modes

Autonics Corp

Autonics Corp MP5Y-42 Digital Panel Meter 5-digit 14mm LED 16 modes

SKU CH-NNXW-RT3WQ MPN MP5Y-42

Digital panel meter with a 5-digit 14 mm LED display offering 16 measurement modes from 0.0005 Hz to 50 kHz on 100-240 VAC power

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 5-digit 14 mm LED shows -19999 to 99999 clearly
  • 16 operation modes cover frequency, speed, time and more
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage inputs
  • Runs on 100-240 VAC 50/60 Hz mains power

5-digit 14 mm LED display

The Autonics MP5Y-42 is a digital panel meter with a 5-digit 7-segment LED display and 14 mm character height. It covers a maximum display range from -19999 to 99999 and operates on a 100-240 VAC 50/60 Hz supply. The unit accepts both voltage (PNP) and no-voltage (NPN) inputs.

Suited for multi-mode process monitoring

This meter suits users who need one instrument for frequency, revolutions, speed, cycle, time, ratio, density, error, length, interval, accumulation and addition/subtraction measurements. It is not for buyers who require a dedicated single-function indicator or a display with higher character height.

0.0005 Hz to 50 kHz measurement span

The single specification that decides fit is the measurement range of 0.0005 Hz to 50 kHz across the 16 operation modes. If your signals fall outside this span, the meter cannot capture them.

Highlights

  • 5-digit 14 mm LED shows -19999 to 99999 clearly
  • 16 operation modes cover frequency, speed, time and more
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage inputs
  • Runs on 100-240 VAC 50/60 Hz mains power

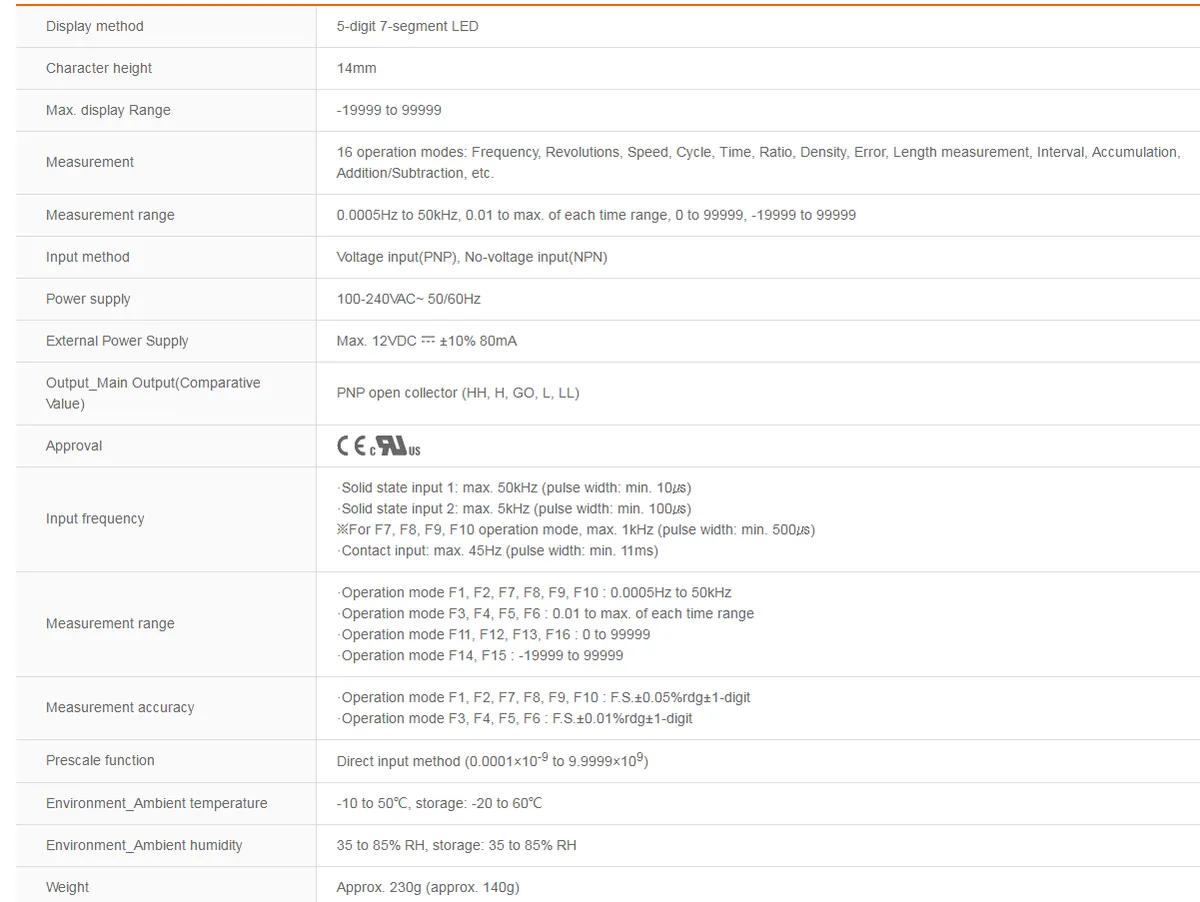

Specifications

BrandAutonics
ModelMP5Y-42
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Which measurement modes cover the tasks I need — frequency, speed, or time?

The meter provides 16 operation modes including Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, and Addition/Subtraction.

What does the 5-digit 14 mm display show in practice?

It reads -19999 to 99999 with 14 mm red LED characters, covering 0.0005 Hz to 50 kHz for frequency and the full count range for other modes.

Does the 100-240 VAC supply limit where I can install it?

The unit runs on 100-240 VAC at 50/60 Hz, so it works on standard mains worldwide without a separate transformer.
