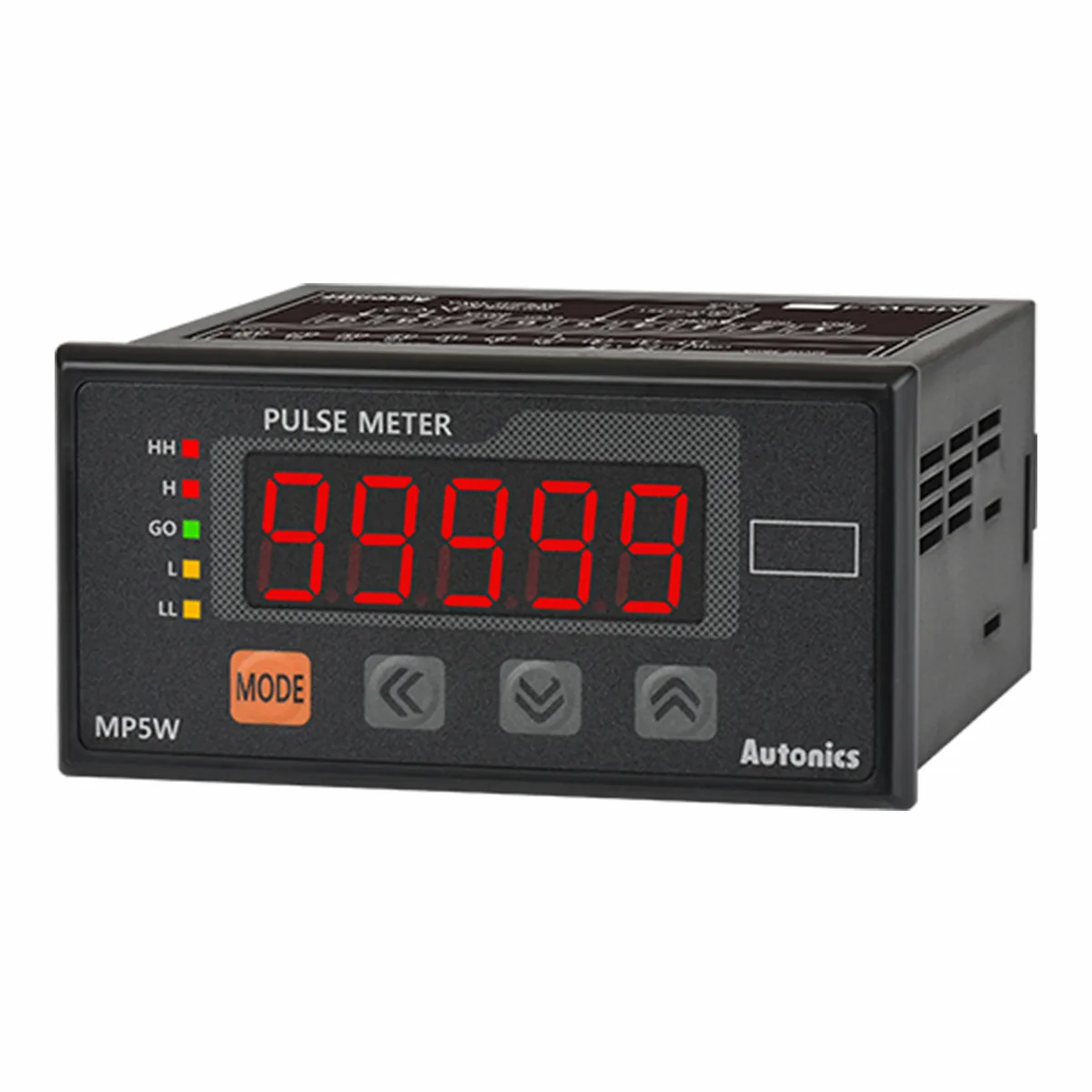

Red 5-digit LED panel meter MP5W-42 in compact housing

Autonics Corp

Autonics Corp MP5W-42 5-digit LED electrician tool

SKU CH-Y7KB-TPQKK MPN MP5W-42

A 5-digit LED panel meter with 16 operation modes measuring frequency, speed, time and count from 0.0005 Hz to 50 kHz on 100-240 VAC power

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 5-digit 7-segment LED with 14 mm characters for clear reading
  • 16 operation modes cover frequency, speed, time and counting tasks
  • Measures from 0.0005 Hz up to 50 kHz for wide signal range
  • Accepts both PNP voltage and NPN no-voltage inputs for flexible wiring
  • Operates on 100–240 VAC 50/60 Hz for global power compatibility

5-digit LED panel meter

The Autonics MP5W-42 is a digital panel meter designed for electricians and maintenance engineers who need to monitor process signals in a control cabinet. It accepts voltage or no-voltage inputs and covers sixteen selectable operation modes including frequency, speed, time and length measurement.

Suits single-channel monitoring.

This unit fits panels that require one compact read-out with a 14 mm red LED display showing values from -19999 to 99999. Buyers who need simultaneous multi-channel logging, data export or a larger colour display should look at a different class of instrument.

100-240 VAC supply decides installation

The meter operates directly from 100 to 240 VAC at 50 or 60 Hz, so it can be wired into standard mains-fed panels without an extra low-voltage supply. If the cabinet only provides DC power, this model will not work.

Highlights

  • 5-digit 7-segment LED with 14 mm characters for clear reading
  • 16 operation modes cover frequency, speed, time and counting tasks
  • Measures from 0.0005 Hz up to 50 kHz for wide signal range
  • Accepts both PNP voltage and NPN no-voltage inputs for flexible wiring
  • Operates on 100–240 VAC 50/60 Hz for global power compatibility

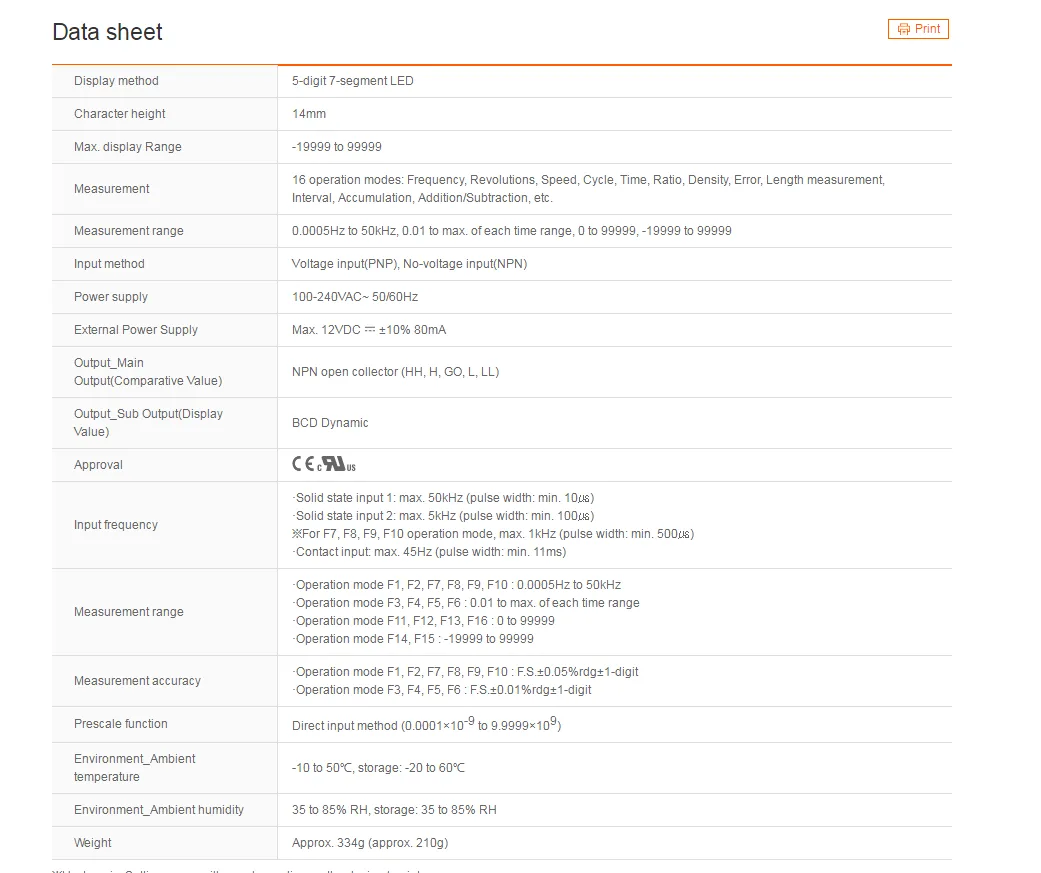

Specifications

BrandAutonics
ModelMP5W-42
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What panel cut-out dimensions does the MP5W-42 need for mounting?

The meter requires a standard 1/8 DIN panel cut-out; verify the exact millimetre size in the Autonics datasheet before cutting.

How do I wire the NPN input on the MP5W-42 and what is the common mistake?

Connect the sensor to the no-voltage NPN terminals and set the input mode accordingly; the common error is leaving the PNP voltage-input setting active.

Which components of the MP5W-42 may need replacement after extended use?

The red 14 mm LED display and the internal power supply (100-240 VAC, 50/60 Hz) are the parts most likely to require service after years of operation.
