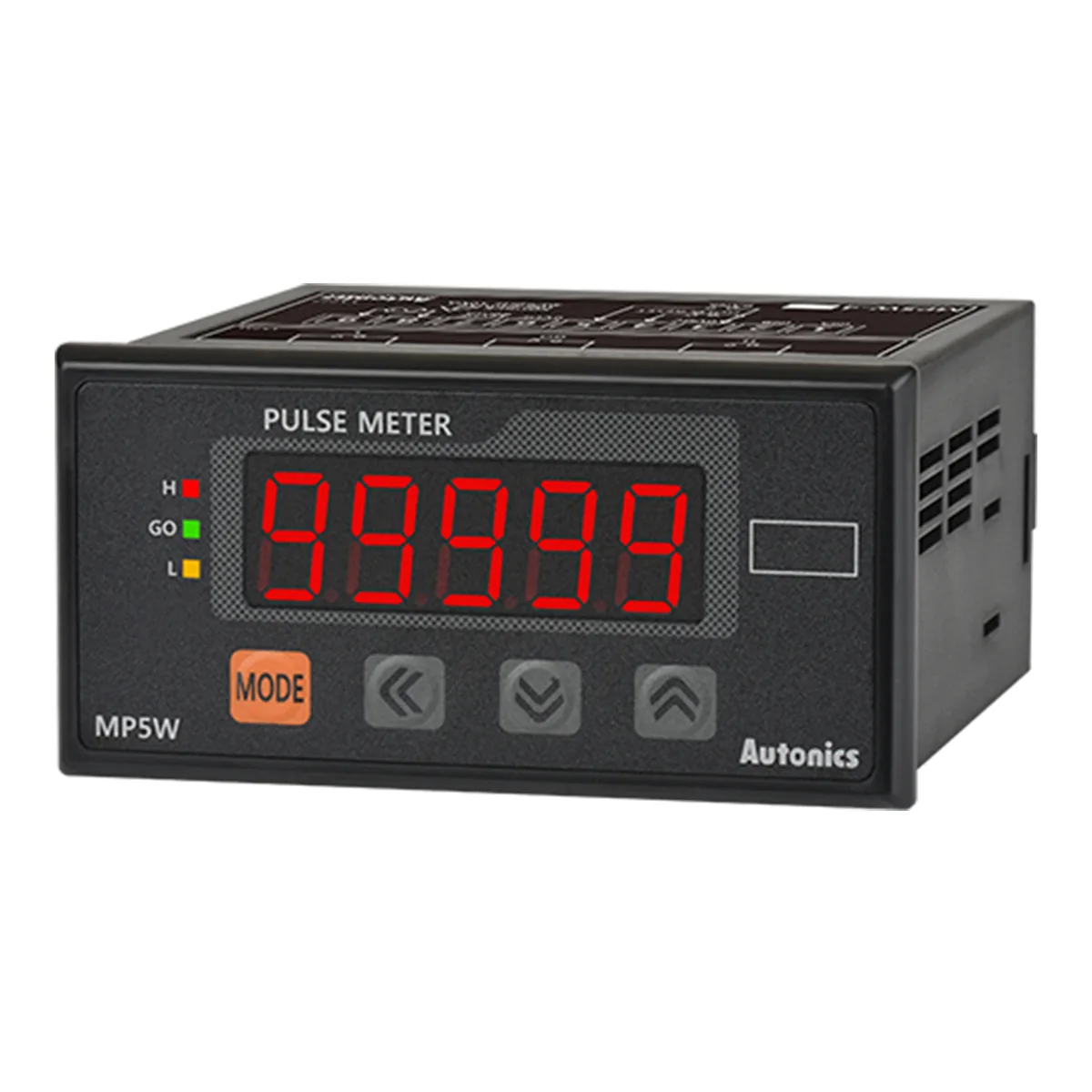

Red rectangular digital panel meter with 14mm 5-digit LED display

Autonics Corp

Autonics Corp MP5W-41 Digital Panel Meter 5-Digit 14mm Red

SKU CH-Y0X3-R9PAN MPN MP5W-41

Displays up to five digits at 14 mm height across 16 operation modes including frequency, speed and time measurement

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 5-digit 14 mm red LED for clear visibility
  • 16 operation modes cover frequency, speed, time and more
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage inputs
  • Operates on 100-240 VAC 50/60 Hz mains power

Digital Panel Meter for Process Monitoring

The Autonics MP5W-41 is a 5-digit digital panel meter designed for industrial measurement tasks. It suits electricians and automation engineers who need a single instrument to read frequency, speed, time, length or count values. The 14 mm red LED display provides clear visibility in control panels or machine cabinets. This new unit ships as a single piece in its original box.

Panel-Mount Build with Dual Input Options

The meter fits a standard panel cut-out and operates on 100-240 VAC at 50 or 60 Hz, so it connects directly to mains supplies worldwide. Two input methods are supported: voltage input for PNP sensors and no-voltage input for NPN sensors. This flexibility lets the same model work with different sensor types without extra signal conditioning. A 3-year parts and 1-year labour coverage period applies.

Measurement Limits Defined by 50 kHz Ceiling

The instrument accepts input frequencies from 0.0005 Hz up to 50 kHz across its 16 operation modes. The display range spans -19999 to 99999, which caps the maximum readable value for accumulated counts or calculated ratios. Applications requiring faster pulse rates or a wider numeric span will exceed this meter's capability. Users needing higher bandwidth or larger count ranges must select a different model.

Highlights

  • 5-digit 14 mm red LED for clear visibility
  • 16 operation modes cover frequency, speed, time and more
  • Measures from 0.0005 Hz up to 50 kHz
  • Accepts both PNP voltage and NPN no-voltage inputs
  • Operates on 100-240 VAC 50/60 Hz mains power

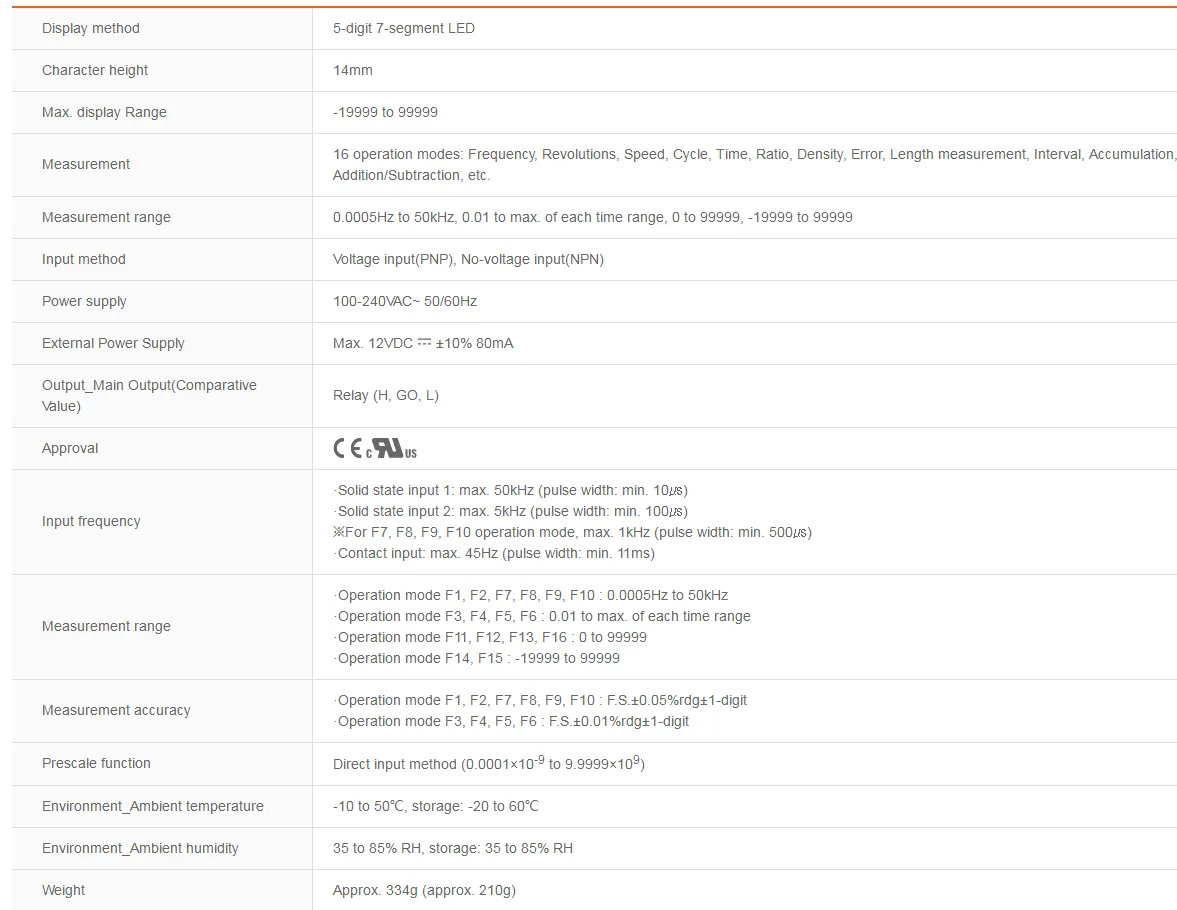

Specifications

BrandAutonics
ModelMP5W-41
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What voltage input range does the 100-240VAC power supply accept?

The unit runs on 100-240VAC at 50/60Hz, so it works on mains supplies worldwide without a separate transformer.

What panel cut-out and depth does the MP5W-41 need to mount?

The meter fits a standard 1/8 DIN cut-out; allow enough depth behind the panel for the 100-240VAC supply and wiring.

How is the MP5W-41 wired, and which step is often missed?

Connect the supply to the 100-240VAC terminals and the signal to the PNP voltage or NPN no-voltage inputs; a common mistake is leaving the input-type jumper unset for the chosen signal.
